13_30
Troubleshooting / What to do if... (13_29, 13_30)

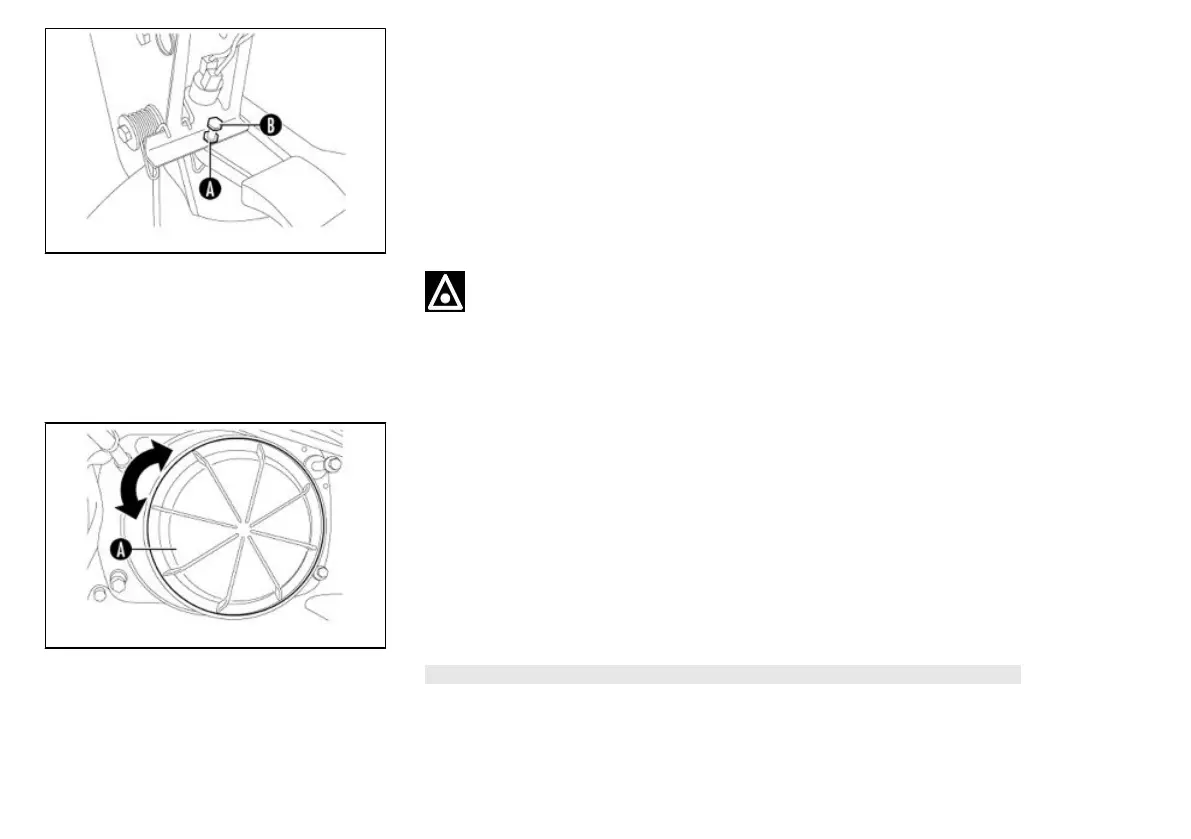

Brake pedal adjustment (steering wheel version)
Adjust the brake pedal stroke as follows:
1. Remove the nut «A» locking the adjustment screw «B».
2. Adjust the stroke by means of screw «B»;
3. Tighten the fastening nut «A».
For correct operation of the hydraulic brake system, the pedal should always have a
slight play on the brake cylinder.
BRAKING ACTION MUST START AT THE BEGINNING OF THE BRAKE LEVER
STROKE.
13_31
Troubleshooting / What to do if... (13_30, 13_31, 13_32)
Replacing the headlights
Replace the headlight bulb as follows:
1. Remove the headlight cover «A» turning it counter clockwise.
2. Release the two clips «B» fixing the lamp holders.
3. Extract the lamp holder «C» and replace the blown bulb «D».
4. Install the cover «A» inserting the 4 teeth «E» into the special slots and turn clock-
wise.
N.B.
TO REPLACE THE TAILLIGHT BULBS, FOLLOW THE INDICATIONS DESCRI-
BED FOR REPLACING THE HEADLIGHT BULB.
101
