Check the coolant circuit hoses for signs of wear (alligatoring of the rubber) and also
check that all fittings are properly sealed. If any of the hoses is worn, please contact
your nearest Authorised Piaggio Service Centre to have it replaced.
Changing the engine cooling fluid
Drain the circuit completely and refill following the procedure given in the previous
paragraphs.
13_13
13_14

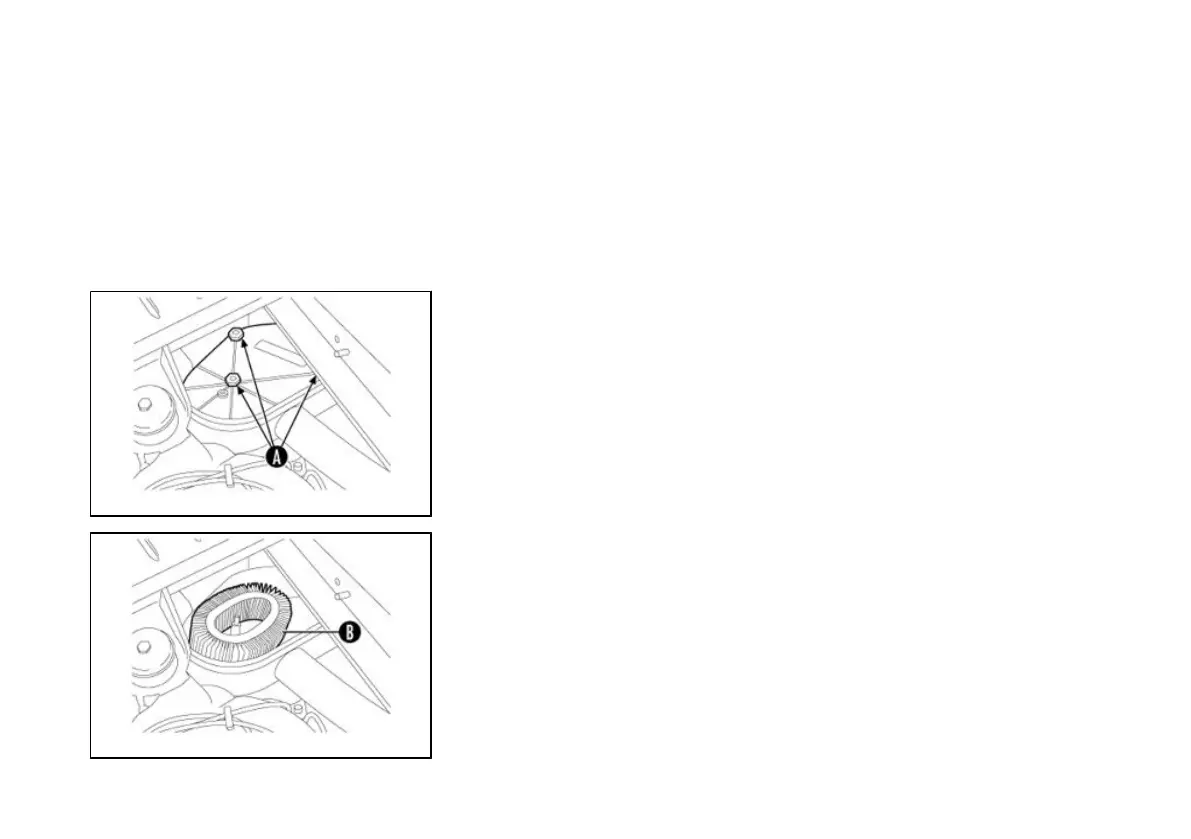

Checking and replacing the air cleaner element (13_13, 13_14)
Replacing the air filter (gasoline version)
To replace the air filter, proceed as follows:
1. Lower the rear side and remove the engine cover;
2. Loosen the three knobs «A» fixing the filter cover, then remove the cover;
3. Remove the filtering element «B»;
4. Replace the filtering element and refit the cover.
84
