Fuses (13_21, 13_22, 13_23)

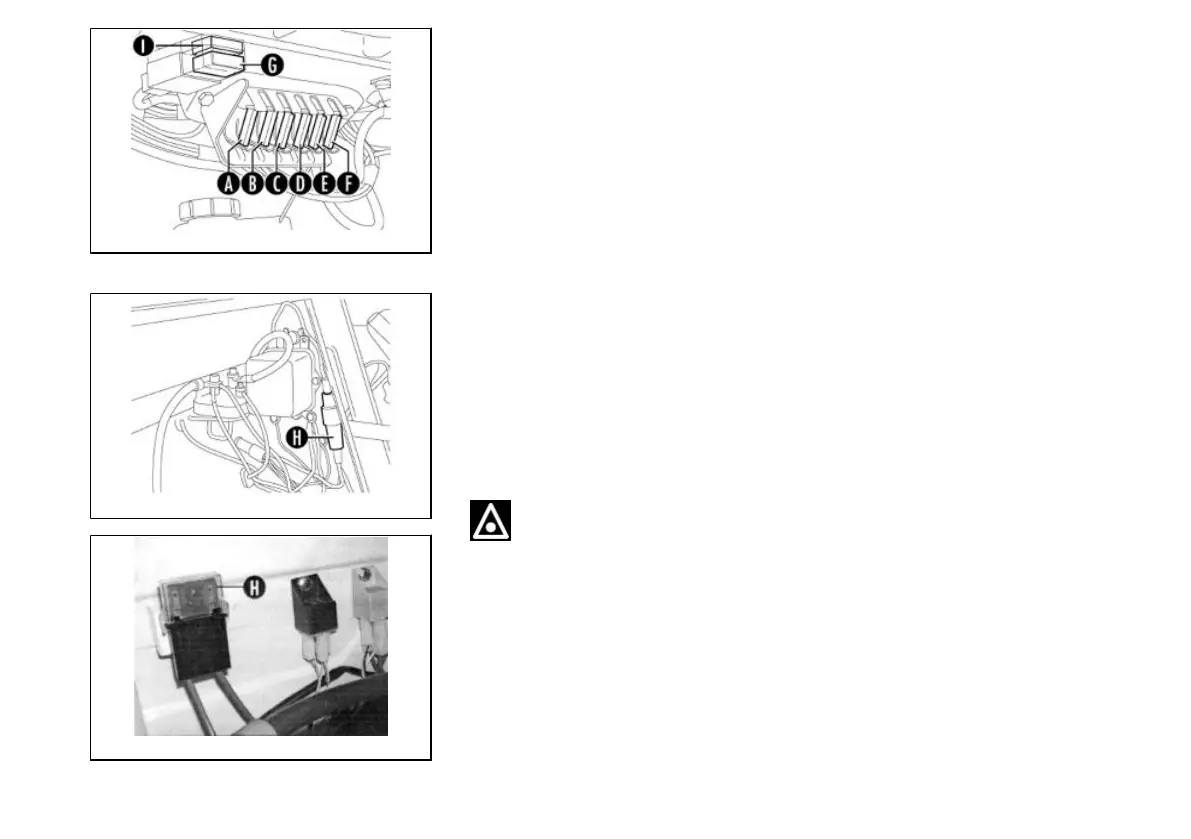

The electrical system is protected by six 8A fuses located underneath the instrument
panel, to the left of the steering column.
To the left of the fuse-box are two fuses: 15A fuse «G» protecting the cigarette lighter,
and 15A fuse «I» guarding the heater fan.
Van versions are also fitted with an 8A fuse located underneath the right-hand side
seat and protecting the van lighting circuit.
The vehicle is also protected by the main fuse «H» located underneath the passenger
seat.
13_22
13_23
The function of general fuse «H» varies according to the version:
- Gasoline = 40 A Safeguarding all services with the exception of the start-up power
circuit.
- Diesel = 40 A Safeguarding the preheating and charging circuits.
Next to the main fuse, on the tipper version, is an additional 80A fuse safeguarding
the body tilting system.
The six 8 A fuses safeguard different circuits depending on the vehicle's version.
BEFORE REPLACING THE BLOWN FUSE, TRY TO ELIMINATE THE FAULT
THAT CAUSED IT TO BLOW. NEVER ATTEMPT TO REPLACE A FUSE USING A
DIFFERENT MATERIAL (I.E. A PIECE OF ELECTRIC WIRE) OR A HIGHER AMP
FUSE.
