Checking and replacing the air cleaner element (13_14, 13_15,
13_16)

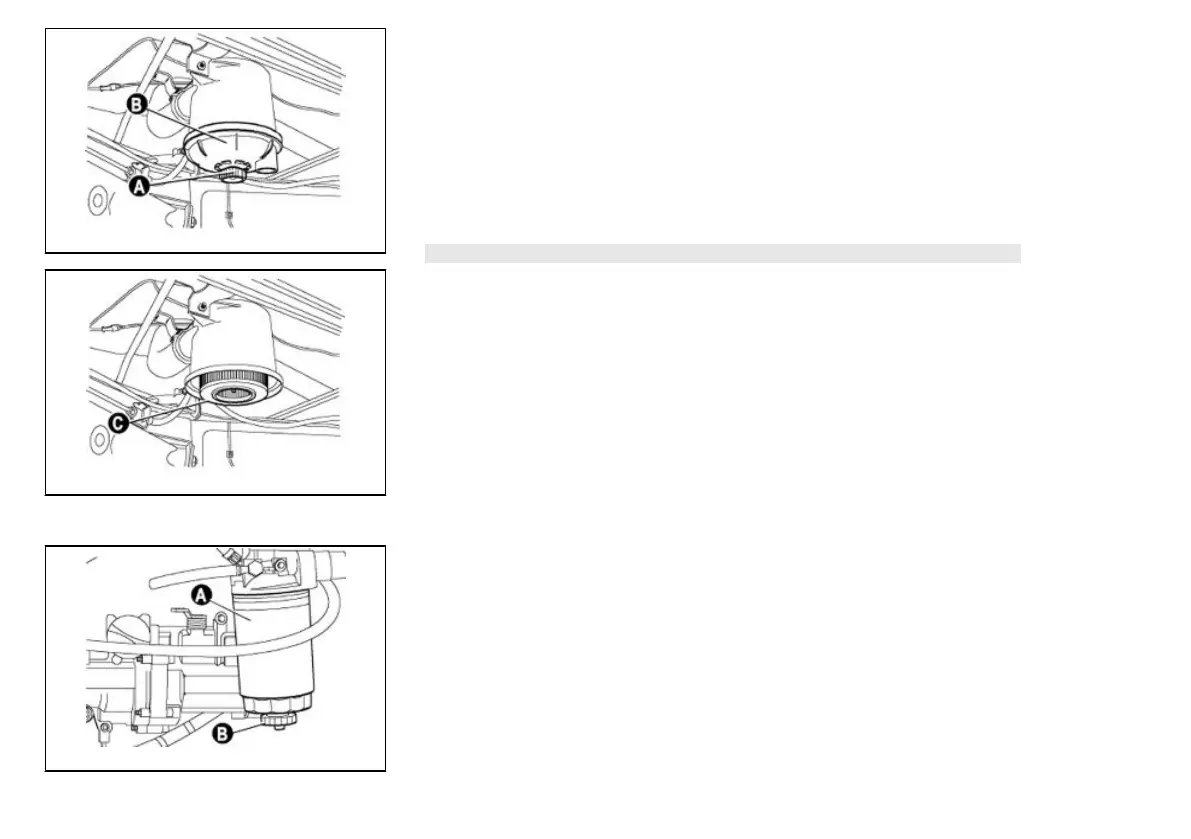

Replacing the air filter (diesel version)
To replace the air filter, proceed as follows:
1. Loosen the fixing know «A» and remove the filter box cover «B»;
2. Extract the filtering element «C» and replace it with a new one;
3. Refit the cover and tighten the knob «A».
CAUTION
THE FILTERING ELEMENT MUST BE REPOSITIONED INSIDE THE AIR-BOX
PROPERLY, FOLLOWING THE REMOVAL OPERATIONS BUT IN REVERSE OR-
DER.
13_17
Replacing the fuel filter (13_17)
Replacing the diesel filter
The diesel filter «A» can be removed by turning it anticlockwise.
At the bottom of the cartridge there is the screw «B» for draining condensation water.
To drain the condensation water, loosen the screw «B»; tighten it again when diesel
without water comes out.
