Instrument unit and indicators (07_01)

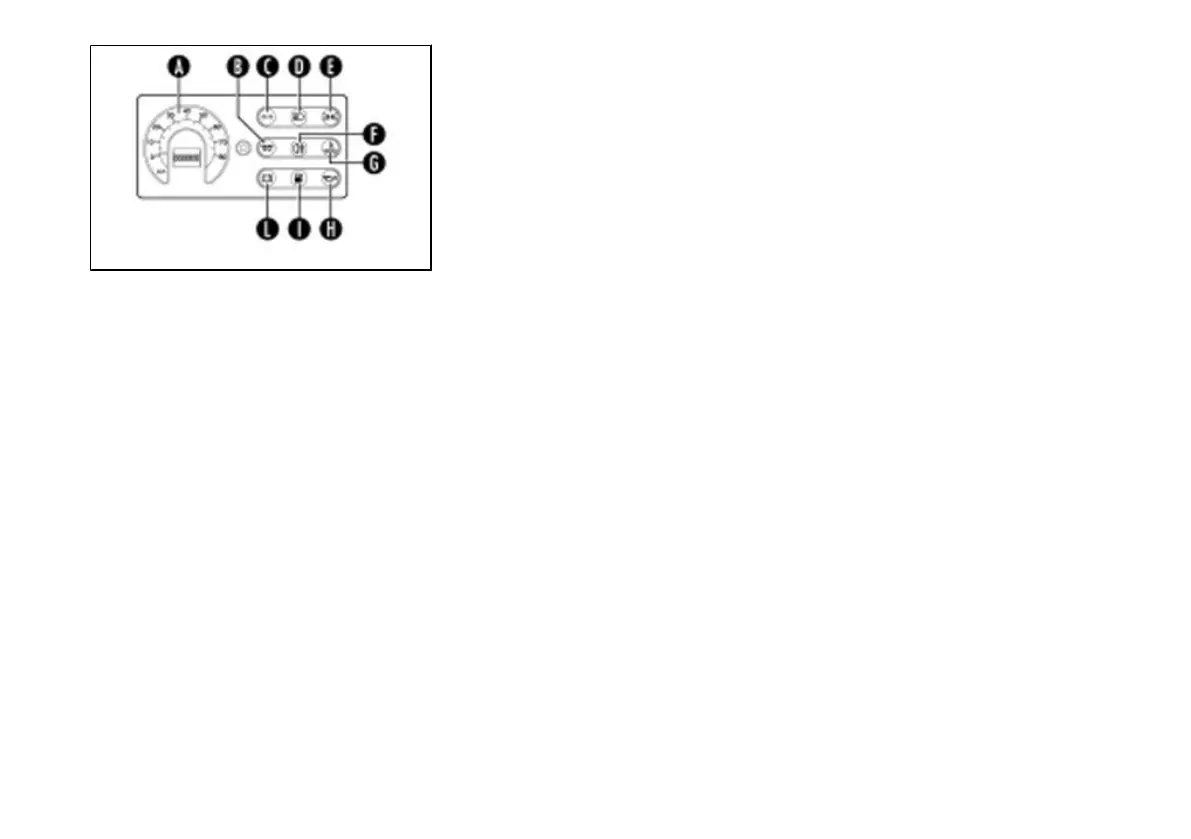

A = Speedometer, odometer/mileometre.
B = Preheat glow plug indicator (only on diesel versions - amber colour).
C = Flashing lights on indicator (green colour).
D = High beams on indicator (blue colour).
E = Taillights on indicator (green colour).
F = Rear fog light on indicator (amber colour).
G = High water temperature indicator (only on diesel versions - red colour).
H = Oil reserve indicator (for gasoline versions). Inadequate oil pressure indicator (for
diesel versions).
I = Fuel reserve indicator (amber colour).
L = Battery charge voltage low indicator (red colour).
