PIAGGIO Ape TM - Page 48

06_10

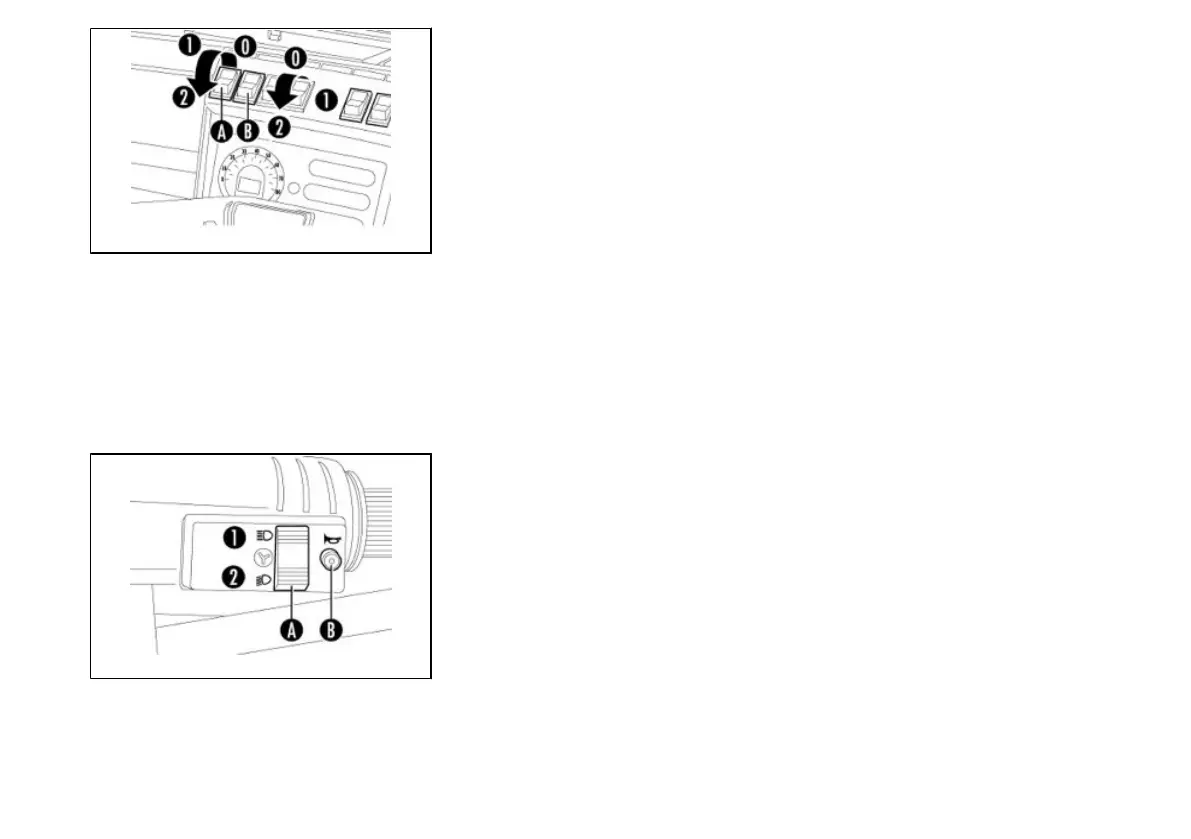

Windscreen wiper control switch «B»
0 = Disabled;
1 = Windscreen wiper enabled.
2 = Windscreen wiper + sprayer enabled.
Light selector «A»
1 = High beams on.
2 = Dipped beams;
THE SWITCH POSITIONS ARE SUBJECT TO THE OUTSIDE LIGHT CONTROL
SWITCH POSITION.
06_11
Horn button
B = horn button.
48
6 Instrument panel and controls
