06_13

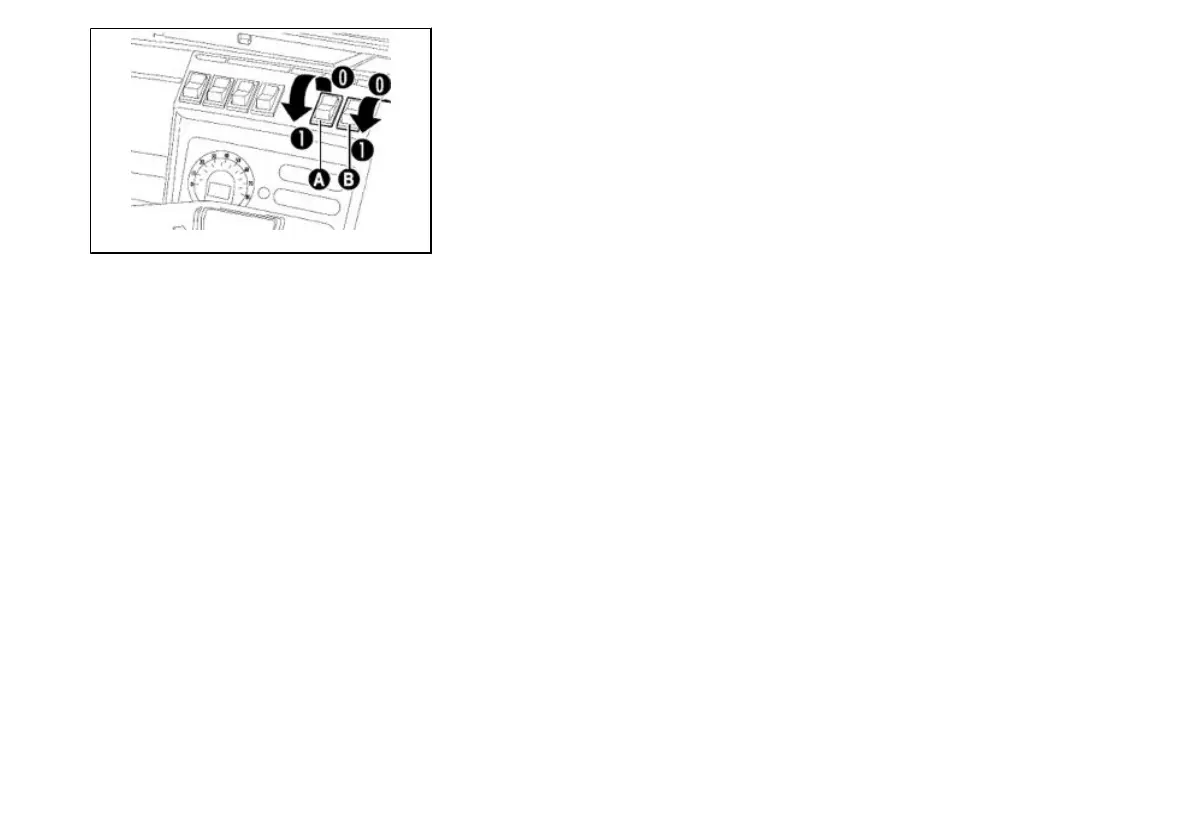

Body tilting button «B» (where available)
0 = Body down
1 = Body up
In order to improve safety and prevent unintentional operations, the lifting controls only
becomes live after releasing the safety lever on the right hand side at the back of the
cabin.
Remember to bring the safety lever back onto the 'blocked' position once all tilting
operations are completed.
•
THE BODY LIFTING OPERATIONS MUST BE CARRIED OUT WITH THE
VEHICLE STOPPED AND THE EMERGENCY/PARKING BRAKE ACTI-
VATED.
STEERING WHEEL VERSION - DIESEL
Light and horn switch lever «A»
With external light control switch «B» in position enabled.
1 = Taillights on;
2 = Dipped beams on;
3 = High beams on.
To actuate the horn, press lever «A» upwards.
THE LIGHT SWITCH LEVER POSITIONS ARE SUBJECT TO THE OUTSIDE LIGHT
CONTROL SWITCH POSITION.
Flashing light switch lever «C»
0 = Lights off;
S = Left turn indicators flashing;
50
6 Instrument panel and controls
