Rear brake drum

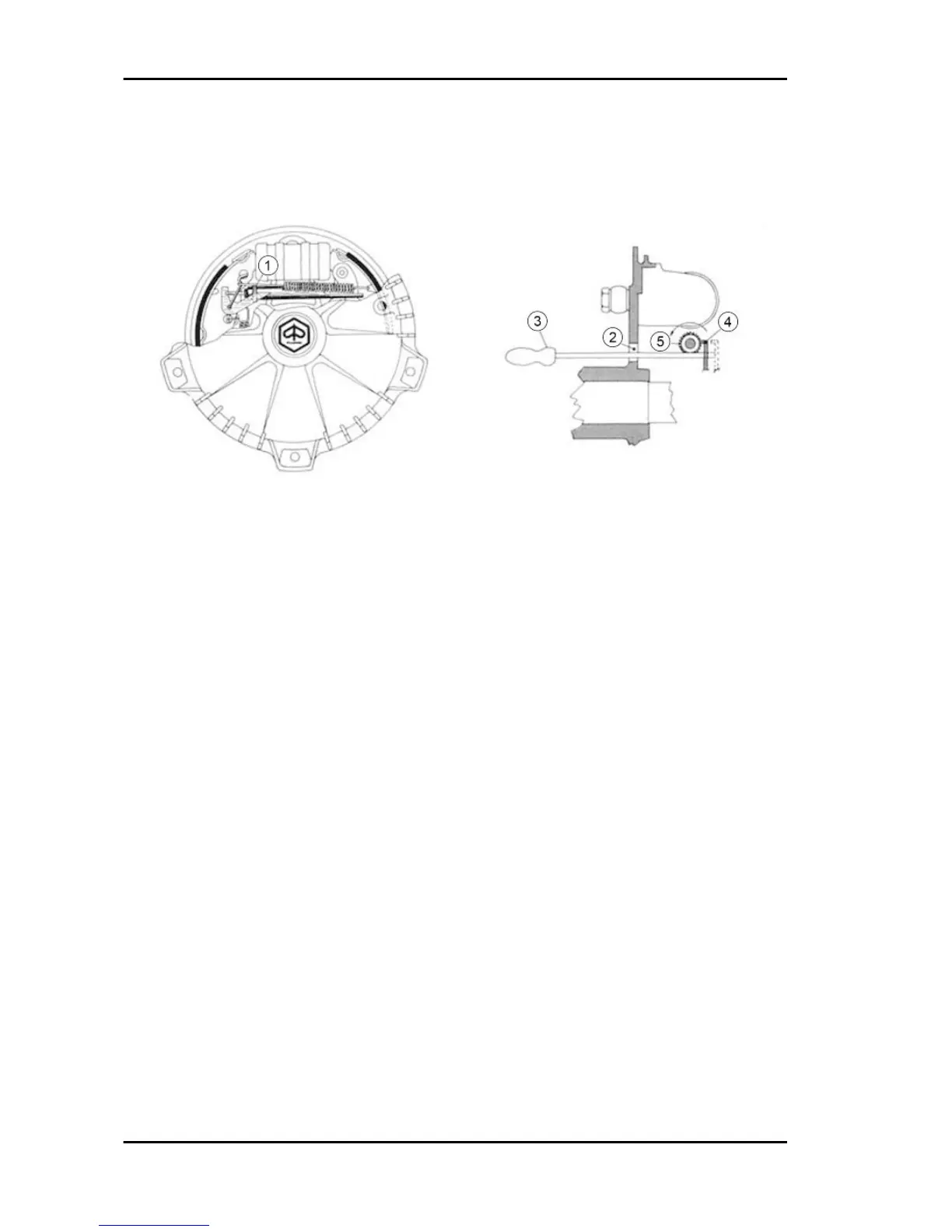

Remove the cap from the hub hole (6), insert a screwdriver until reaching the corresponding hole (7)
on the brake shoe (8). Push the parking brake control lever (9) and release the supporting tab of the
lever. When the lever is released and under the action of the return spring, the shoes will get detached
from the drum and can be removed.
Braking system APE TM Benzina
BS - 102
