Specific tooling
19.1.20074 Crankshaft checking tool
Rod small end bushing - Pin

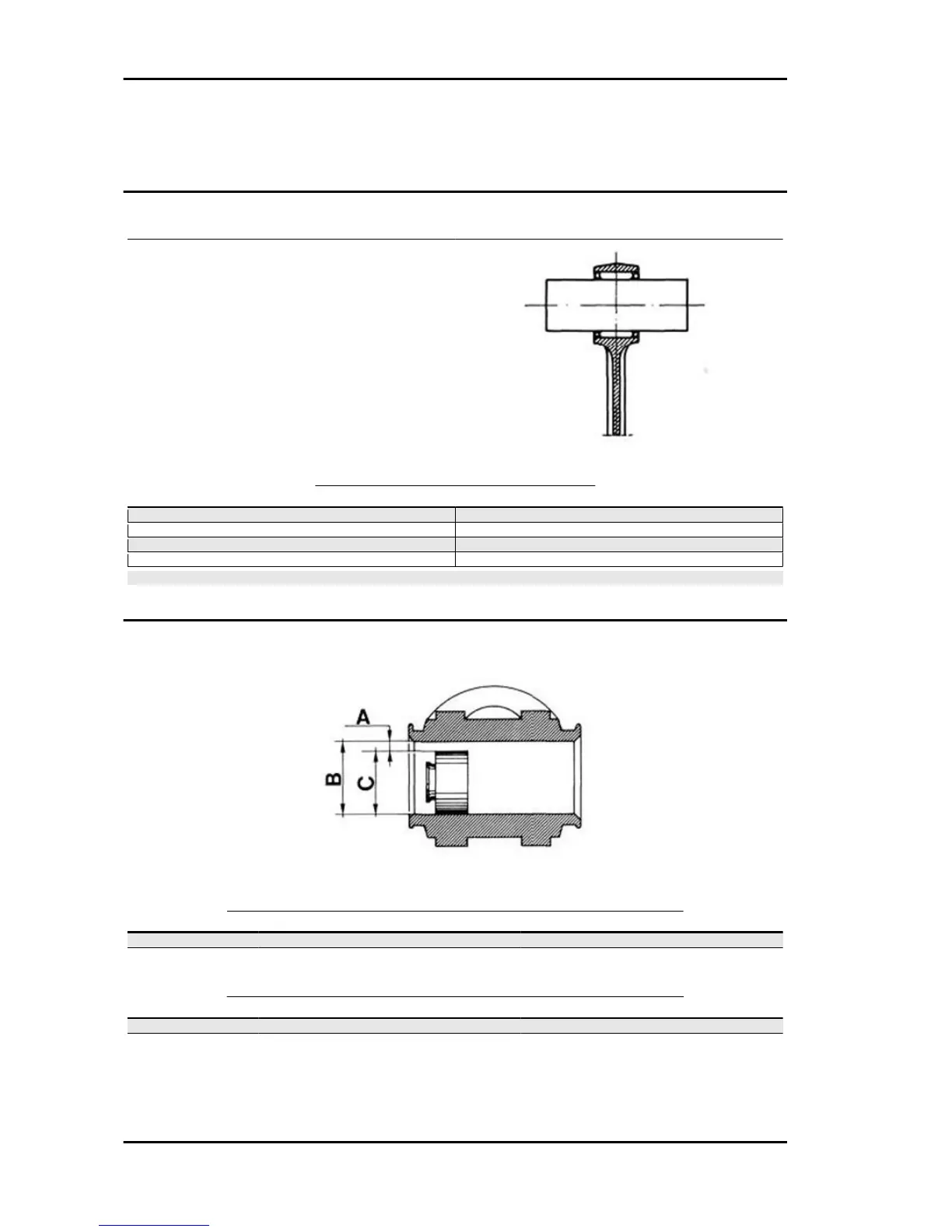

CONNECTING ROD SMALL END - PIN - ROLL-
ER CAGE
The connecting rods and cages are divided into 4
categories (marked with incisions at the foot of the
same connecting rod and on the cage frames).
CONNECTING ROD - ROLLER CAGE
Connecting rod Roller cage
1st category 4th category
2nd category 3rd category
3rd category 2nd category
4th category 1st category
CAUTION
IN CASE OF NOISE, USE CAGE OF LOWER CATEGORY.
Oil pump
FRONT BRAKE CYLINDER - CLEARANCE "A" FOR FITTING
Name
Description Dimensions Initials Quantity
Cylinder B=22.225 -0 +0.033 0.040 to 0.106
Piston C=22.225 -0.040 -0.073 0.040 to 0.106
REAR BRAKE CYLINDERS - CLEARANCE "A" FOR FITTING
Name
Description Dimensions Initials Quantity
Cylinder B=25.40 -0 +0.033 0.150 to 0.125
Piston C=25.40 -0.040 -0.092 0.150 to 0.125
Characteristics APE TM Benzina
CH - 22
