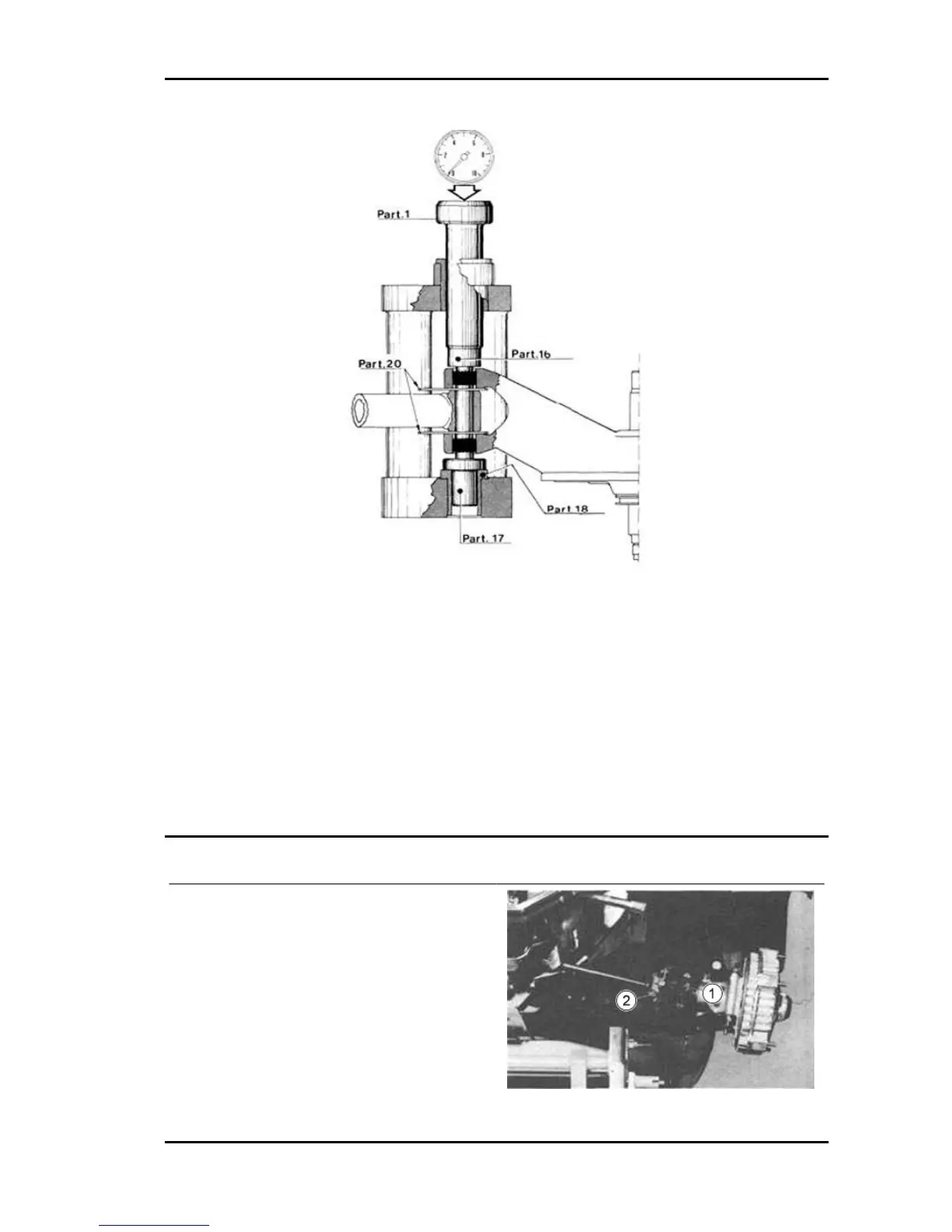

WASHERS WEDGING
Use the tool supplied in comp. 22 and 11, as already represented in the specific section "Mounting the
pin", and push, using the press loaded to approx.1.8 t., until the washer is wedged on the swinging arm.
At this point remove the two spacers (comp. 20 of the figure in the section "Mounting the pin"), and,
after having completely filled with specific grease the space between the steering tube and the oscil-
lating arm, move the dust guard rings (1) until they are made to fit in the space provided.
Recommended products
AGIP GREASE PV 2 Multipurpose grease
NLGI 2 specifications; ISO-LXBIB2
Rear
FLEXIBLE JOINT - REMOVAL
Hoist the vehicle, secure the axle shafts to the en-
gine with flexible straps so as to avoid that the end
with the joint pin slides off the differential sprocket
wheel; take out the 6 bolts (1) connecting the flex-
ible joint to the terminals and remove the flexible
joint.
APE TM Benzina Suspensions
SS - 125
