Windscreen
PANE - FITTING
Thoroughly clean the area that houses the window pane, remove any adhesive or glass that may have
been left (use any mechanical tool, blades, abrasive elements, etc.). Check that the frame profile is not
deformed (straighten if required).
- If necessary, touch up the area that houses the pane using original varnish so as to ensure the sealant
will adhere properly.
- Protect the external and internal edge of the frame using a special tape for bodywork; use a brush to
apply a thin coat of primer on the whole adherence surface involved when the adhesive sealant is
applied.

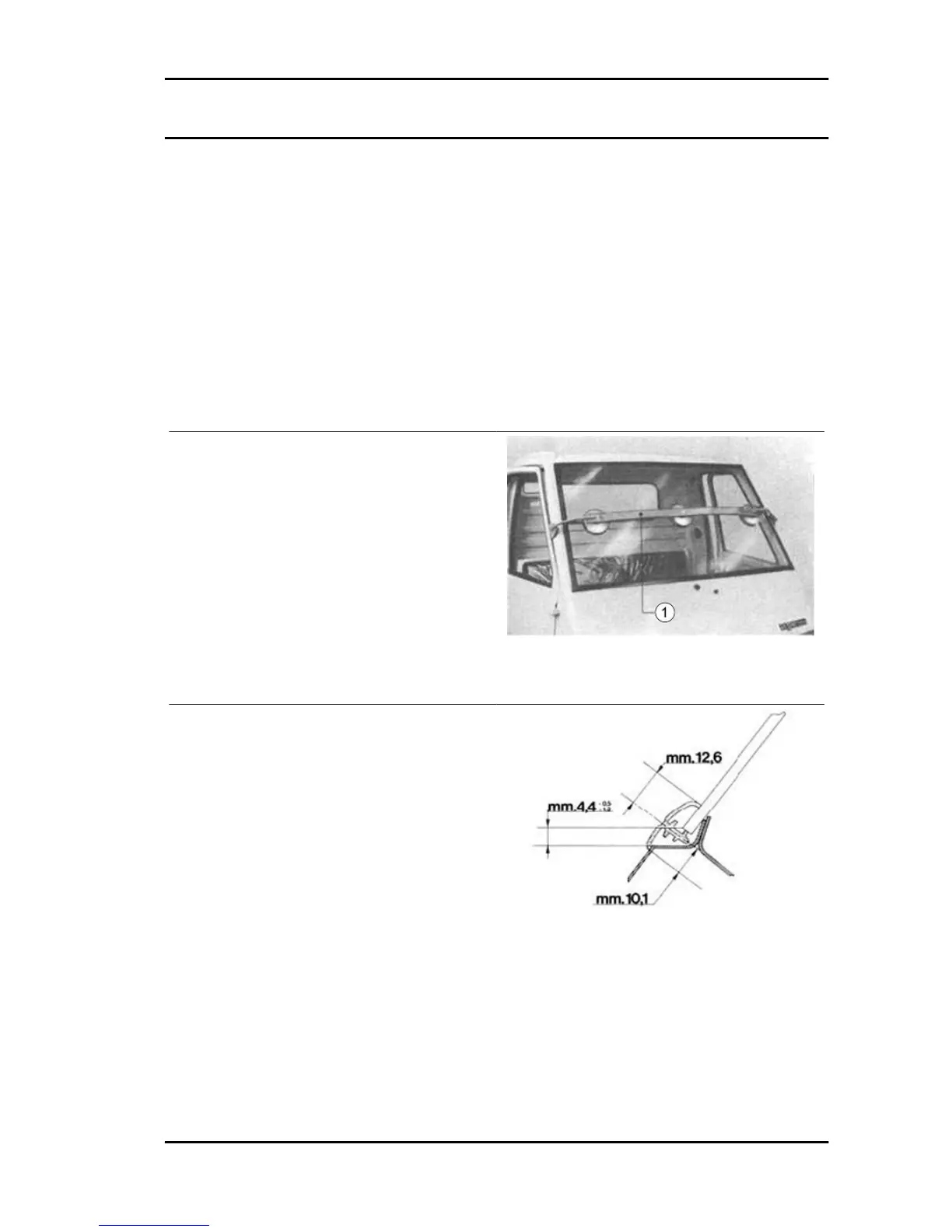

- Degrease the edge of the new window pane with
ethyl alcohol. Using the specific tool (1), place it
and centre it with respect to the upper and lower
edges of the frame that houses the pane, observ-
ing proper distances (lower side and upper side).
Also check that the distance of the pane from the
edge of the housing frame is the same on both
sides.
Specific tooling
19.1.20049 Window positioning tool
- Centre it with respect to the upper and lower
edges of the frame that houses the pane, observ-
ing proper distances (lower side and upper side).
APE TM Benzina Chassis
CH - 137
