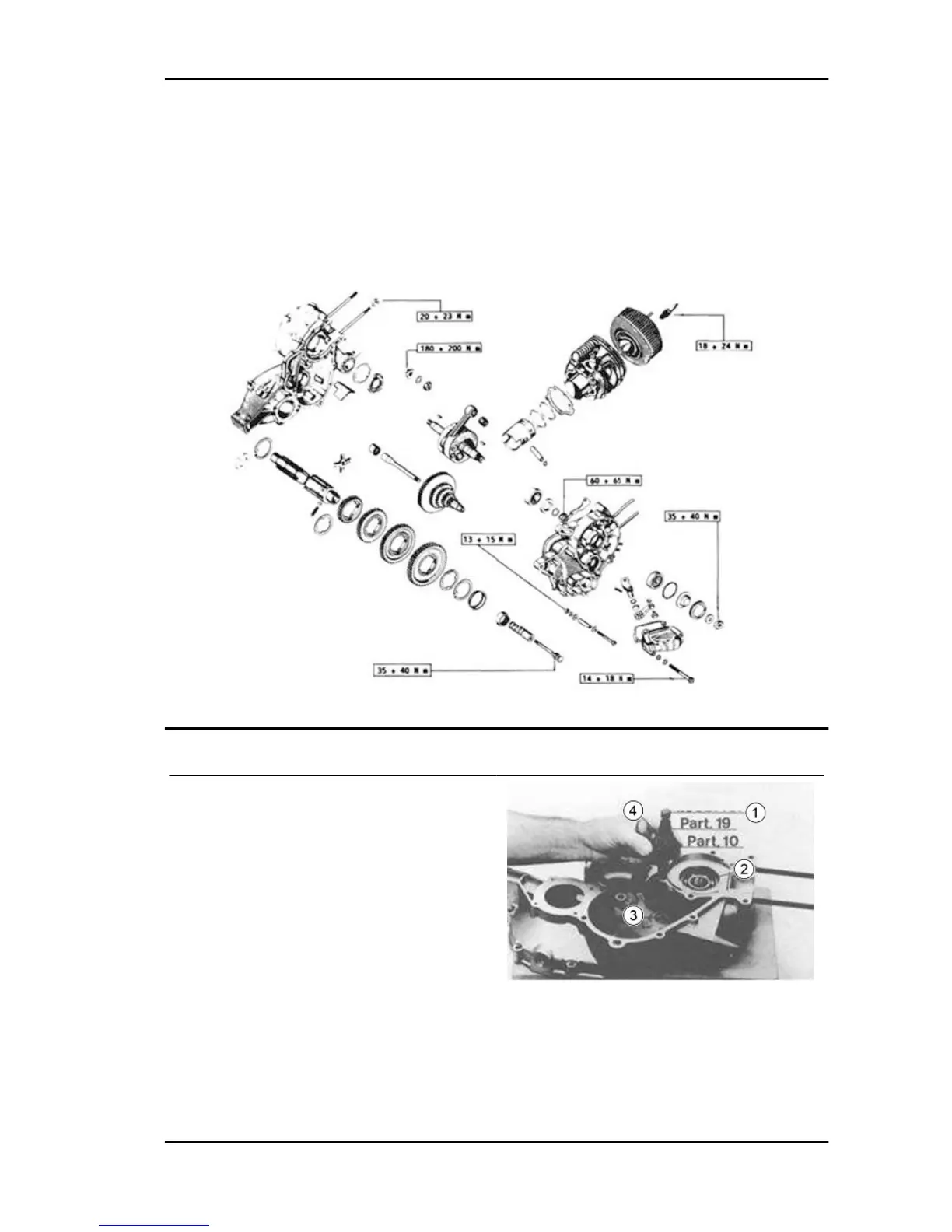

Allow the crankcase to cool and with the specific
punch (3), position the needle bearing of gear shaft
(2).
Specific tooling
T.0039152 Punch for roller bearing
Bearings on half-crankcase clutch-side
CLUTCH-SIDE CRANKCASE HALF - REMOV-
AL
SEAL RING - CIRCLIP - BENCH BALL BEAR-
ING
Remove, using a screwdriver, the seal ring, the
retaining circlip, with specific pliers and then, with
a section of tube with outer Ø of 54 mm., remove,
by acting on the side opposite to that shown in the
figure, the ball bearing (2).
Specific tooling
T.0022465 Pliers for circlips
APE TM Benzina Engine
EN - 79
