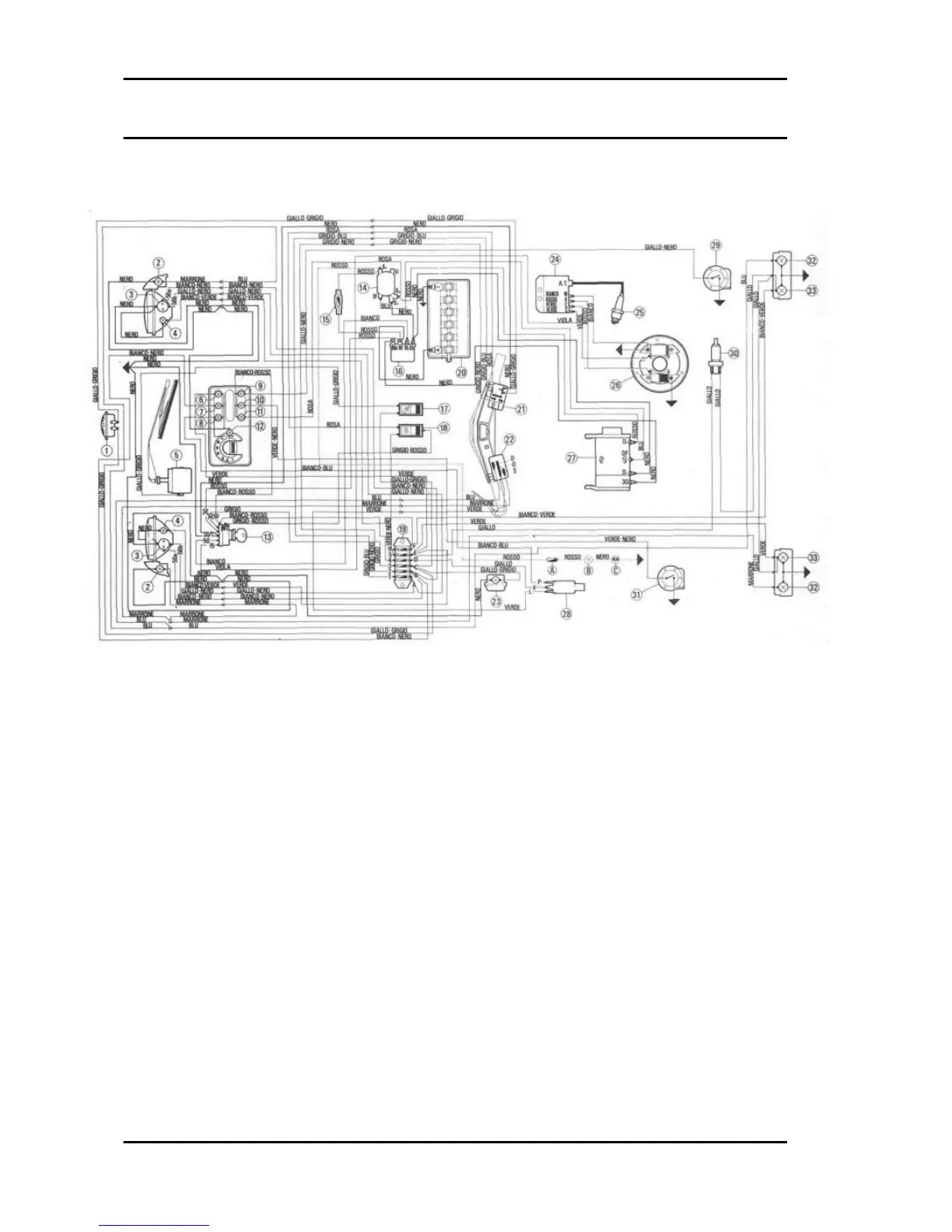

Electric circuit diagram
Electrical System Diagram (version with handlebar)
KEY:
1. Horn
2. Front turn indicators, 12V-21W bulbs
3. High beam and low beam headlight, 12V-25/25W twin-filament lamp
4. Front position indicators, 12V-4W bulbs
5. Windscreen wiper
6. Warning light, daylight running lights on (green light), "All Glass" lamp 12 V - 1.2 W
7. Warning light, high beam lights on (blue light), "All Glass" lamp 12 V - 1.2 W
8. Warning light of turn indicators operation (green light), "All Glass" lamp 12 V - 1.2 W
9. Oil reserve warning light (red light), "All Glass" lamp 12 V - 1.2 W
10. Fuel reserve warning light (amber light), "All Glass" lamp 12 V - 1.2 W
11. Warning light indicating dynamo battery charger low voltage (red light), "All Glass" lamp 12 V - 1.2
W
12. "All Glass" lamp for lighting odometer 12 V - 1.2 W
13. Engine start-up switch
14.Voltage regulator
15. Protection fuse 25A
16.Remote control
Electrical system APE TM Benzina
ES - 48
