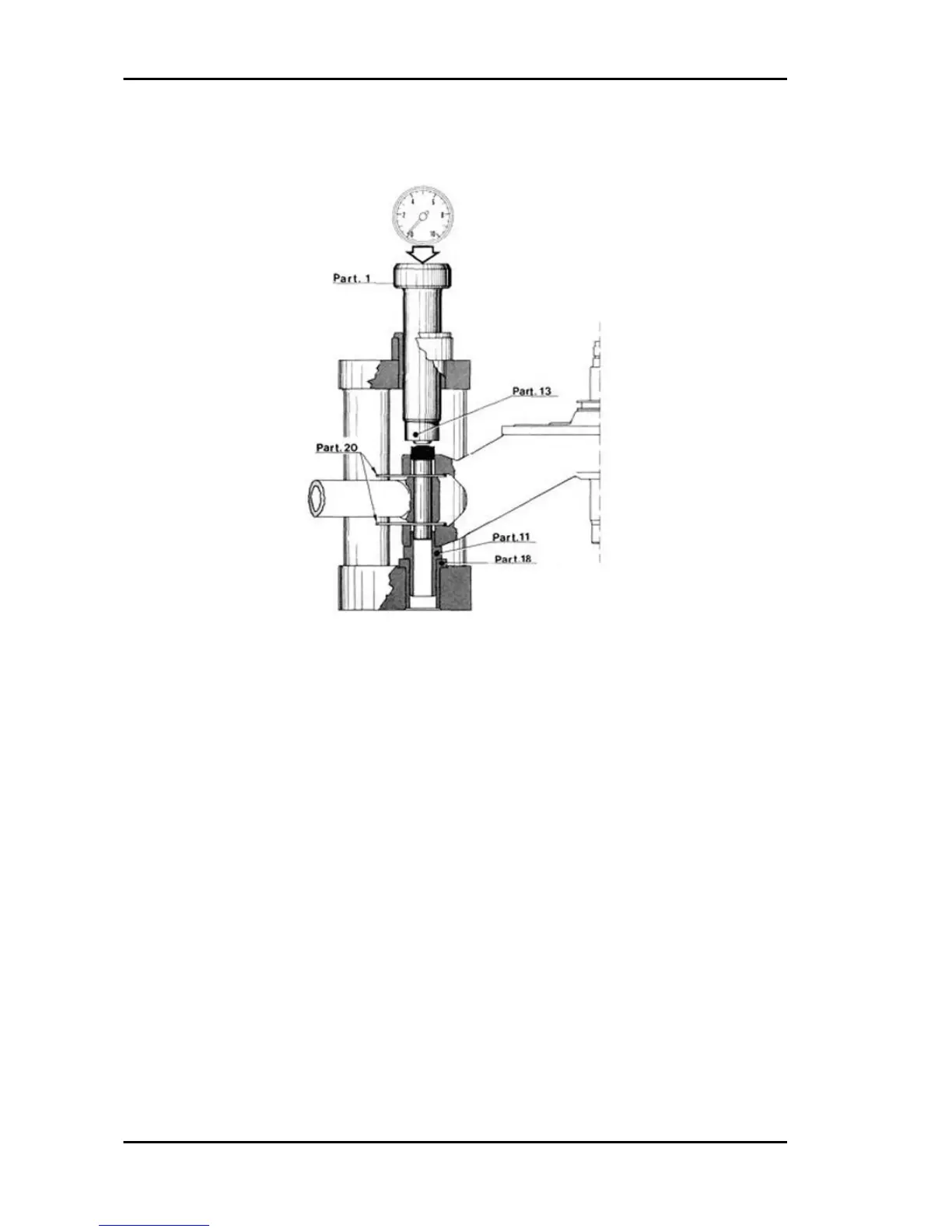

- Remove from the crankcase of the tool specific the comp 12 (driving) partially ejected during the
assembly of the pin (see figure in the specific section "Mounting the pin", always leaving the fitted the
comp. 11).
- Apply comp. 13 on comp. 1, in place of the existing comp. 22 (see figure in the specific section
"Mounting seal rings").
- Place the suspension unit back on the tool and, using the press, push the wedging washer-roller
bushing assembly until bringing the comp. 13 to a stop on the oscillating hub. This completes the fitting
operation for the first roller bushing.
- To install the second roller bushing, apply on the tool - always equipped with comp. 13 - the comp. 15
replacing comp. 11: with the suspension unit overturned, in position corresponding to that indicated in
the next figure, repeat the operation as described in the preceding point, so as to assemble the second
unit wedge washer - needle bushing.
FINAL POSITIONING OF THE ROLLER BUSHINGS ON THE PIN (END OF THE PIN MAKING CON-
TACT WITH THE INSIDE BOTTOM OF THE ROLLER BUSHING)
- Remove from comp. 1 of the tool, comp. 13 and in its place insert comp. 16; apply on the lower
crankcase comp. 17; act on the press until the roller bushings are definitively positioned.
Suspensions APE TM Benzina
