*= Pump.
**= Distributor.
***= Tank distributor pump unit.
****= Jack.
*****=Distributor control.
******= Use duct.

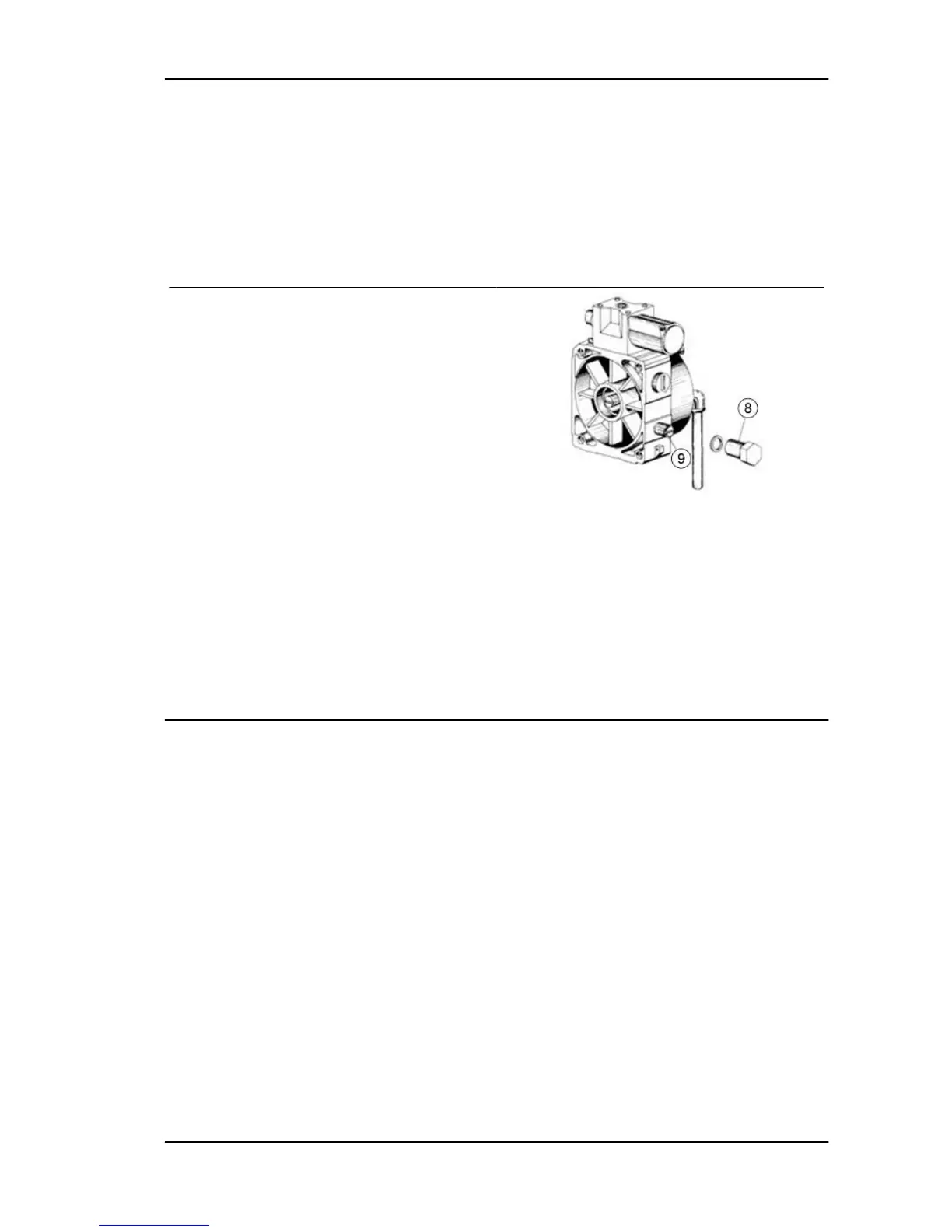

DEFECTIVE LOAD BOX LIFTING
1) Check and restore the oil level in the tank with
specific oil.
2) If despite having operated as described in 1) the
problem persists, operate as follows: interpose a
pressure gauge between the tube (5) and the dis-
tributor, insert the command in position "1" and act,
having previously removed the nut (8), on the set
valve adjustment screw (9) until obtaining a pres-
sure in the hydraulic circuit (detectable on the
gauge) of 105 Kg/cm2 with load box fully raised.
Recommended products
AGIP ARNICA 46 Oil for hydraulic tilting sys-
tem pump
Oil for hydraulic circuits corresponding to specific
ISO VG 46, DIN 51524 HVLP
APE TM Benzina Tipper version
VR - 135
