5. Minimum jet
6. Starter transmission
7. Minimum air calibrator
8. Maximum air calibrator
9. Starter valve
10. Starter jet
11. Tank
12. Maximum jet
13. Float
14. Needle
15. Throttle valve
16. Inviolability cap
17. Preloading spring screw
18. Spring
WARNING
THE PLASTIC KNOB (2), FITTED ON THE THROTTLE
VALVE TRAVEL END ADJUSTMENT SCREW, MUST NOT
BE REMOVED UNDER ANY CIRCUMSTANCES.

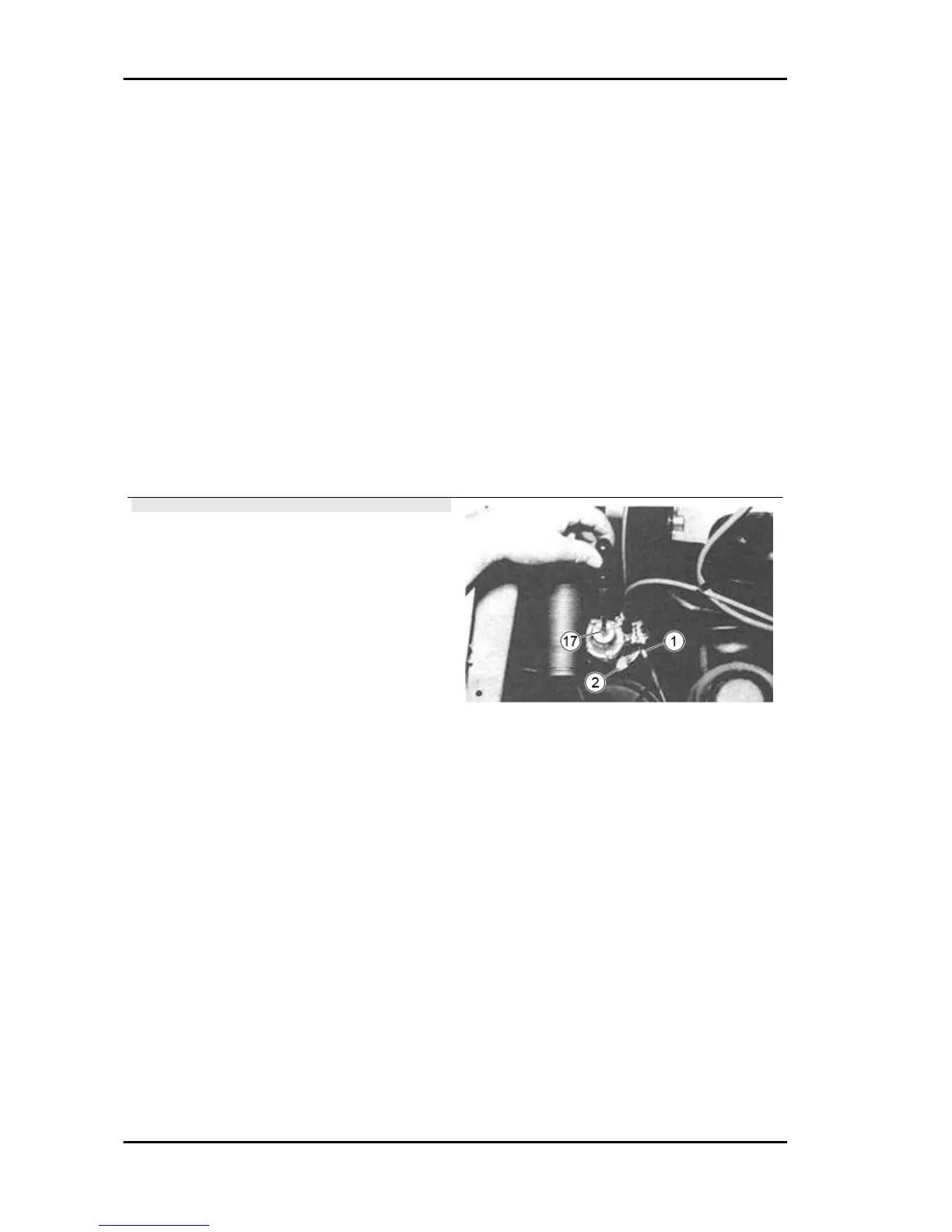

2. If in spite of the adjustments previously described, engine idling remains irregular remove the inviol-
ability cap (16) and proceed as follows:
2.1 If when releasing the throttle control the engine tends to remain slightly accelerated: gradually loosen
the preloading spring screw (17) until obtaining, at the release of the throttle, an excellent idle condition.
2.2 If when releasing the throttle the engine tends to turn off: gradually tighten the screw (17) in order
to further preload the spring (18).
Maintenance APE TM Benzina
MA - 36
