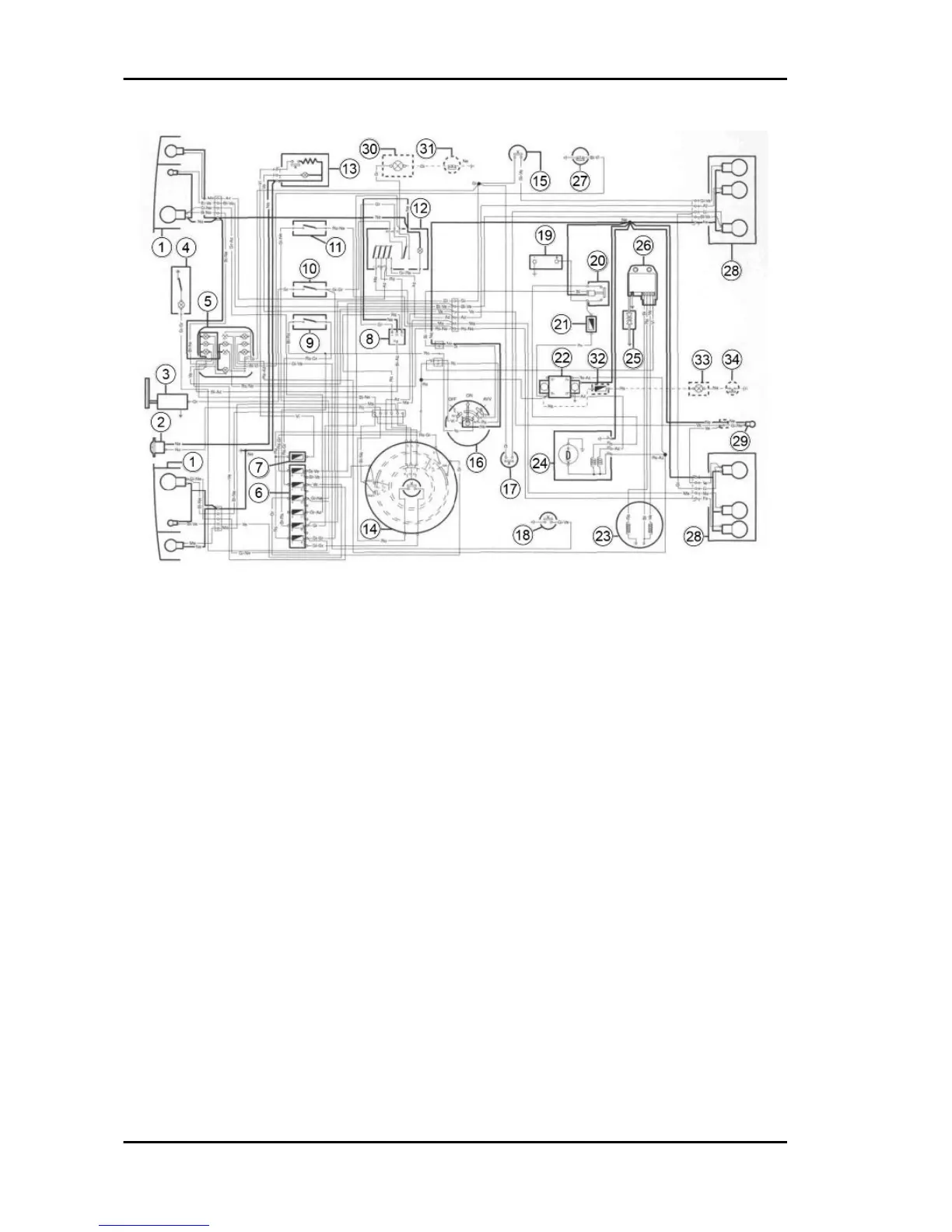

KEY:
1. Front headlight fitting with twin-filament high-/low-beam bulb (12V-25W/25W), daylight running light
bulb (12V-5W), turn indicator bulb (12V-21W).
2. Horn.
3. Windscreen wiper.
4. Internal light (12V-5W).
5. Light indicator unit (12V-1.2W bulbs).
6. Fuse terminal block (six 8A fuses).
7. Cigarette lighter fuse (15A).
8. Turn indicator control device.
9. External light control switch.
10. Windscreen wiper control switch.
11. Rear fog light switch.
12. Emergency lights switch (12V-1.2W).
13. Cigarette lighter (12V-1.2W).
14. Light switch lever, turn indicators switch, and horn.
15. Reverse button.
16. Key switch.
17. Stop button on rear brake.
18. Low fuel warning light control.
19. 12V-32Ah battery.
Electrical system APE TM Benzina
ES - 54
