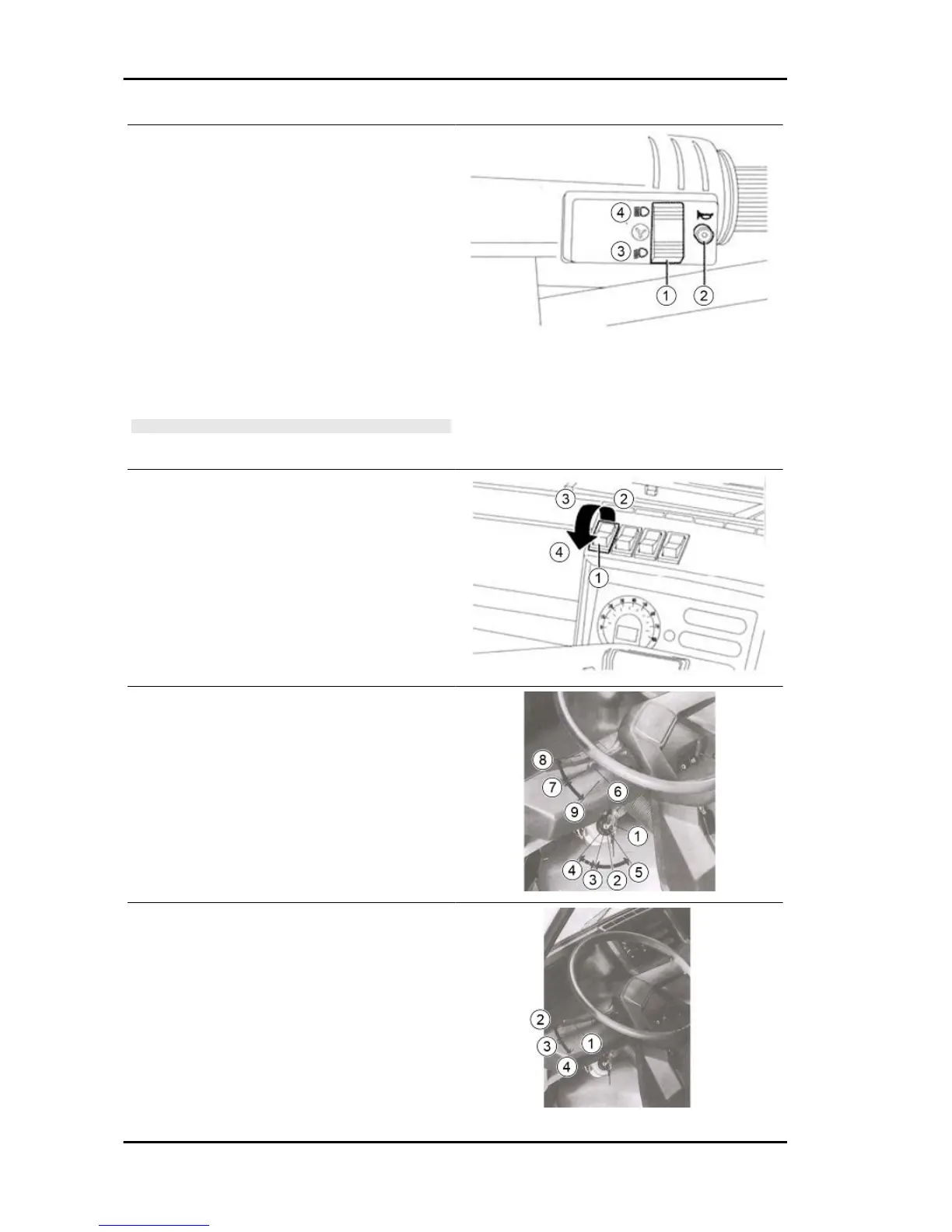

APE TM P703 FL2 (VERSION WITH HANDLE-
BAR)
Positions of the switch "1".
The centre position of the switch corresponds to
lights off.
3 = High beams, front and rear daylight running
lights, panel lights on - contact between pink and
blue-grey cables.
4 = High beams on, front and rear daylight running
lights, panel lights on - contact between pink and
black-grey cables.
N.B.
THE SWITCH POSITIONS ARE SUBJECT TO THE POSI-
TION OF THE EXTERNAL LIGHTS CONTROL SWITCH.
APE TM P703 FL2 (VERSION WITH HANDLE-
BAR)
Positions of switch "1".
2= Lights off - no contacts.
3 = Daylight running lights on - contacts 2-3 and
6-7.
4 = High and low beams on (if the head lights
switch is in position 3 or 4) - contacts 3-4 and 7-8.
APE P703V (VERSION WITH STEERING
WHEEL)
TURN INDICATORS CONTROL LEVER
Positions of lever "6":
7: Turn indicators off - No contact.
8: Right indicators - Contacts L - 5.
9: Left indicators - Contacts L - 2.
APE P703V (VERSION WITH STEERING
WHEEL)
LIGHT DEFLECTORS AND EXTERNAL LIGHT
SWITCH COMMAND LEVER
Position of lever "1" with switch "2" activated.
3: Tail lights on - No contact.
4: Low beams and tail lights on Contacts C - 56 B.
Electrical system APE TM Benzina
ES - 60
