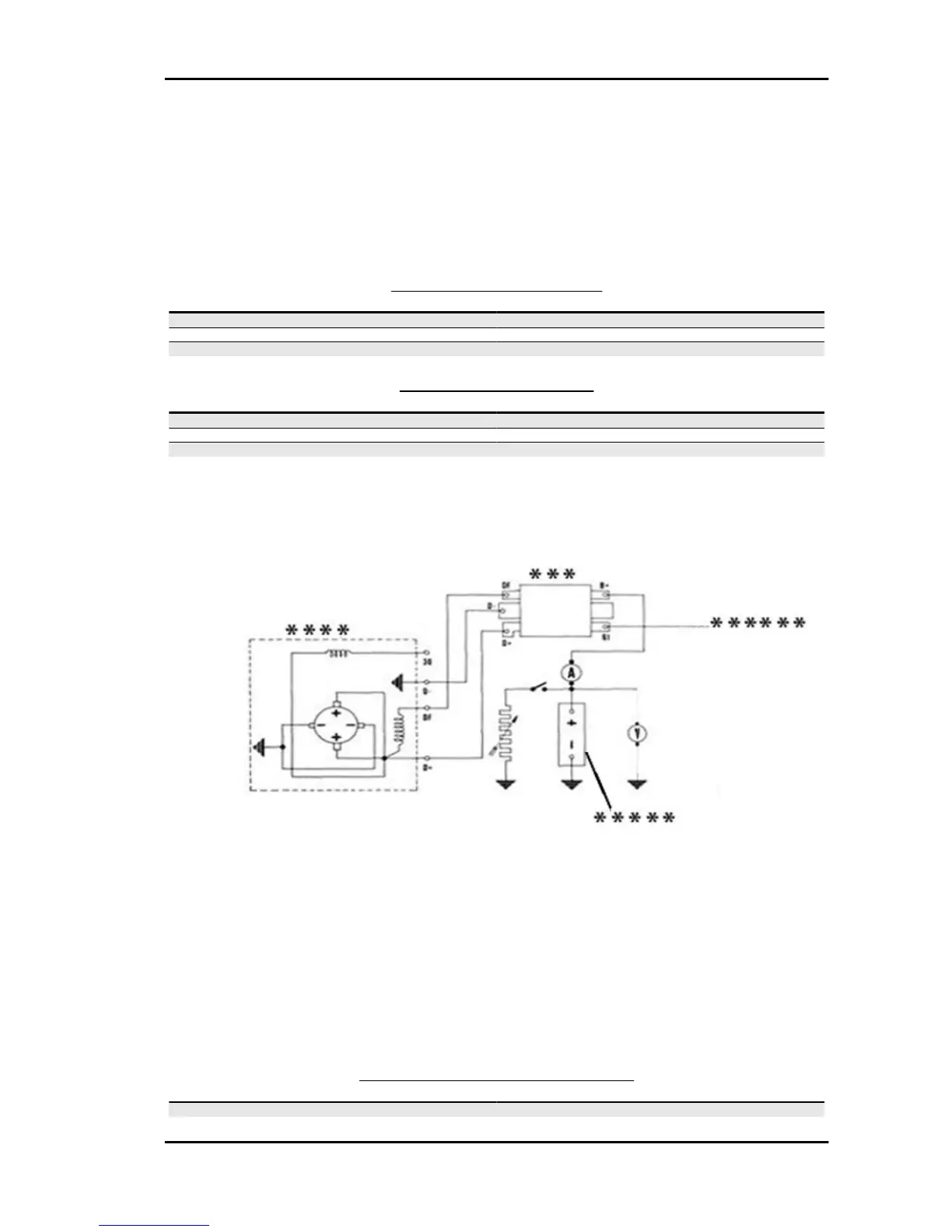

Make an electrical circuit diagram and run the dynamotor at 6000 revolutions/1' constant, perform ther-
mal stabilisation, through empty operation of the regulator for 15' and then connect it to a battery charger
for 5'.
Stop the dynamotor and restart it until you reach 6000 revolutions/1' required for the voltage control on
loads that must match the values reported in the following tables:
BOSCH TYPE REGULATOR
Specification Desc./Quantity
Load 0 Amp. 14.3-15.4 V.
Load 6 Amp. 13.8-15.2 V.
Load 11 Amp. 13.2-14.5 V.
EFEL TYPE REGULATOR
Specification Desc./Quantity
Load 0 Amp. 14.3-15.8 V.
Load 6 Amp. 14-14.9 V.
Load 13 Amp. 13.6-14.6 V.
KEY:
***= Voltage regulator
****= Dynamotor
*****= 12V battery - 24 Ah
******= Warning lamp
TOOLS USED FOR THE CONTROLS
Specification
Desc./Quantity
Ammeter Ammeter in DC. (minimum full scale 20 Amp.).
APE TM Benzina Electrical system
ES - 67
