PIAGGIO Ape - Gearbox and Differential Service

CHANGE GEARS AND GEARBOX STEM CONTROL - APE TM P703 - REMOVAL

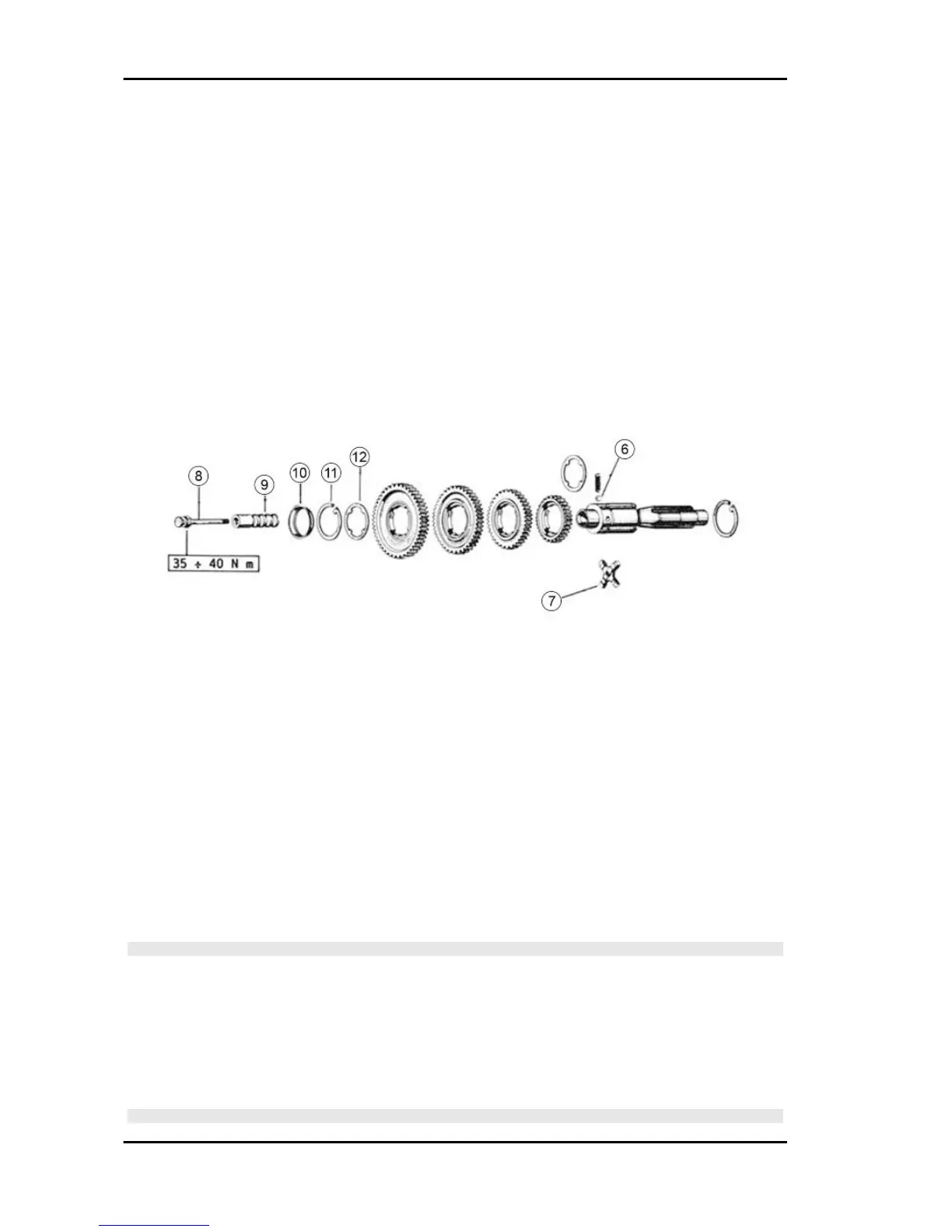

After removing the container ring (10), the springs and the 2 balls (6), remove the retaining circlip (11),
pull off the shoulder ring (12) and the four gears.
Unscrew the stem (8) (left-hand thread), remove the bushing (9) and the cross (7).
Specific tooling
T.0022465 Pliers for circlips
CHANGE GEARS AND GEARBOX STEM CONTROL - APE TM P703 - FITTING
Insert the cross (7) in the transmission gear shaft, then place the bushing (9), coat the threads of the
stem (8) with the specific product, and screw it (left-hand thread) on the cruise (7) with torque of 35 to
40 Nm (3.5 to 4 kgm).
Reassemble the remaining components in reverse order of disassembly, taking care to orient the gears
of the fourth, third and second speed with the collar facing outwards and the first gear speed with the
collar turned inward.
N.B.
AFTER REASSEMBLING THE GEAR UNIT PROCEED TO CHECK THE AXIAL CLEARANCE AS
INDICATED IN THE SPECIFIC SECTION "FITTING CLEARANCES"
CHANGE GEARS - STEM - GEAR CONTROL BUSHING - APE TM P703V - REMOVAL
Remove the snap ring, the thrust washer and the gears.
Unscrew the control stem of the 3rd and 4th speed and the 1st and 2nd speed bushing (left-hand thread),
then pull out the two crosses.
N.B.
Gear-box APE TM Benzina
GE - 88
