DIFFERENTIAL BOX - REMOVAL

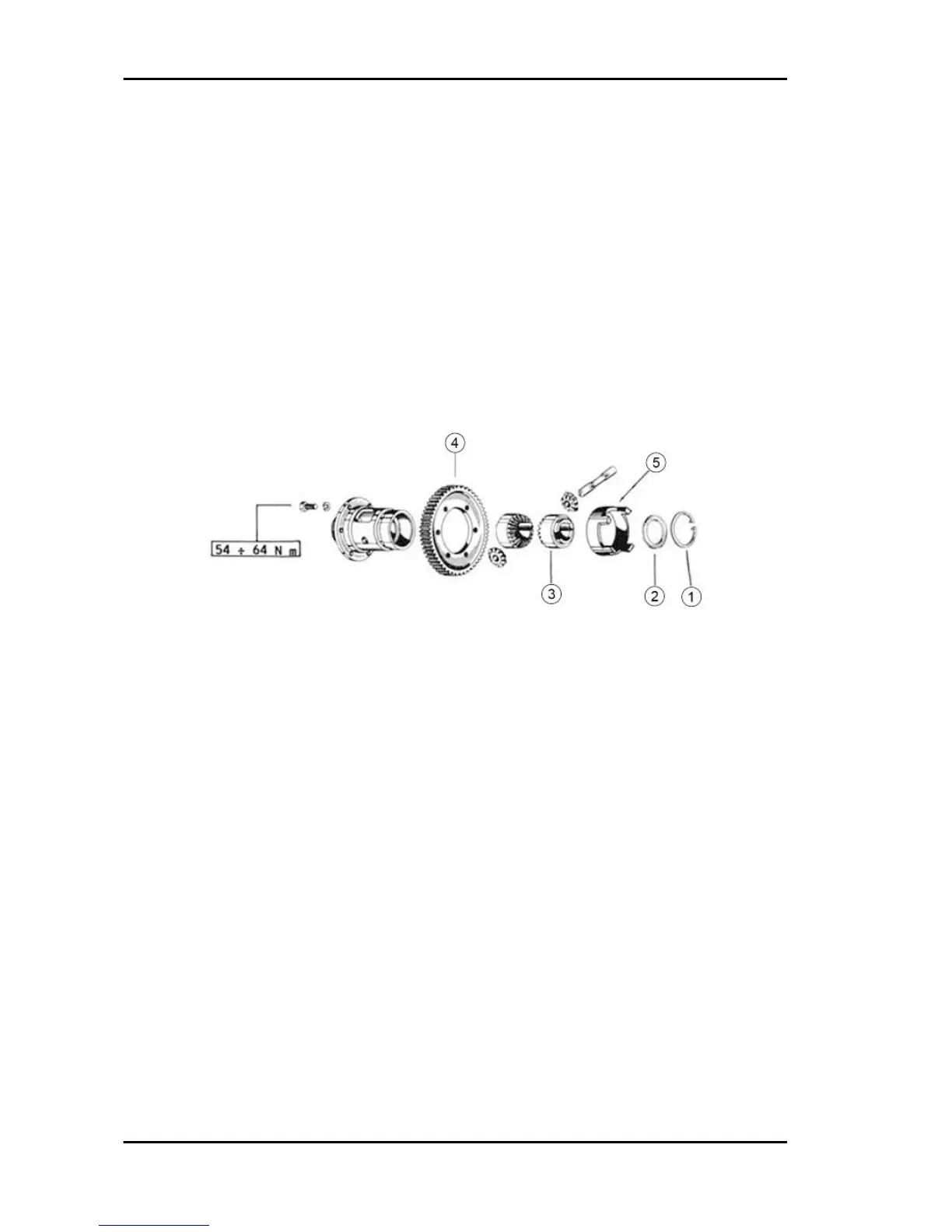

Remove, using the specific pliers, the circlip (1), the washer (2) and the planetarium (3), then straighten
the tabs of the retaining ring (5) of the satellites pin remove the ring itself, the pin, the satellites and the
remaining sprocket. By removing the six bolts, remove the differential sprocket (4).
Specific tooling
T.0022465 Pliers for circlips
DIFFERENTIAL BOX - FITTING
The replacement of the differential box is done in the reverse order of disassembly, taking care in
reassembly to carefully fold the tabs of the retaining ring (5) of the satellite pin.
CHANGE GEARS AND GEARBOX STEM CONTROL - APE TM P703 - REMOVAL
After removing the container ring (10), the springs and the 2 balls (6), remove the retaining circlip (11),
pull off the shoulder ring (12) and the four gears.
Unscrew the stem (8) (left-hand thread), remove the bushing (9) and the cross (7).
Specific tooling
T.0022465 Pliers for circlips
Differential APE TM Benzina
DI - 92
