Checking the brake oil level (03_20)
The front and rear brake fluid reservoirs are both positioned on the handlebar. Proceed
as follows:

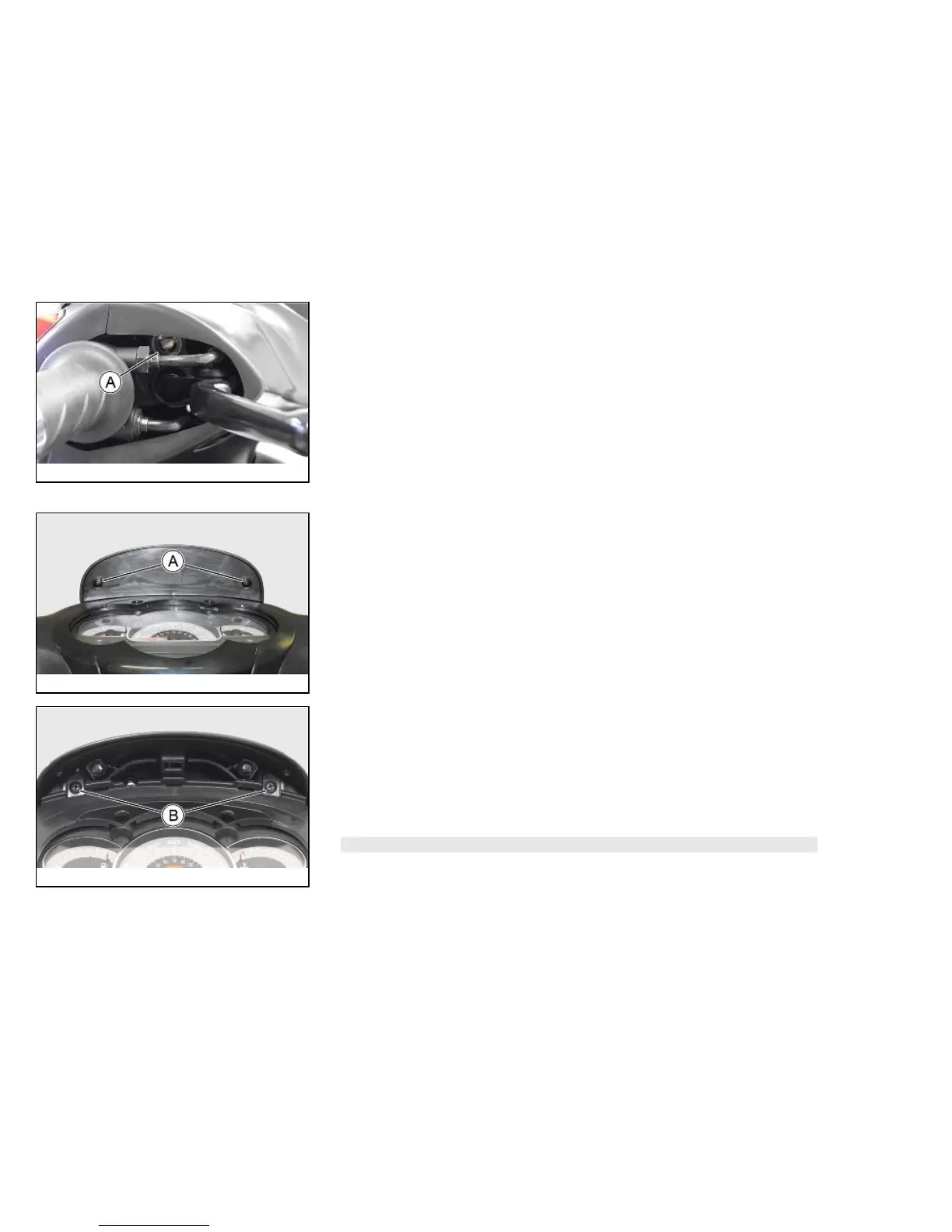

- Rest the vehicle on its centre stand with the handlebars perfectly horizontal;
- Check the fluid level through the sight glass «A».
A certain lowering of the level is caused by wear on the pads. Should the level appear
to be below the minimum mark, please contact a PIAGGIO Authorised Service Cen-
tre or Dealer in order to have the braking system thoroughly checked.
03_21
03_22
Braking system fluid top up (03_21, 03_22, 03_23, 03_24, 03_25,
03_26, 03_27, 03_28, 03_29)
For topping-up, proceed as follows:
- Remove the mirrors unscrewing them from their seats
- Unscrew the two screws «A» and remove the pressure covering.
- Unscrew the two screws «B» and, working on both sides of the vehicle, unscrew the
screw «C».
- Using a flat-headed screwdriver, detach the fastener tab as shown in the figure,
accessing the tab via the indicated slit.
- Insert the screwdriver between the two covers, as indicated in the figure, and detach
the upper fastener tab. Move the rear handlebar cover aside.
- Unscrew the two screws «D» and remove the front handlebar cover releasing the
front headlight connector
- Unscrew the two screws «E» and remove the cap «F» of the brake pump to top up
to the optimum level.
WARNING
BRAKE CIRCUIT FLUID IS VERY CORROSIVE; DO NOT LET IT COME INTO
CONTACT WITH PAINTED PARTS.
