Hub oil level (03_05, 03_06)
Check that there is oil in the rear hub.

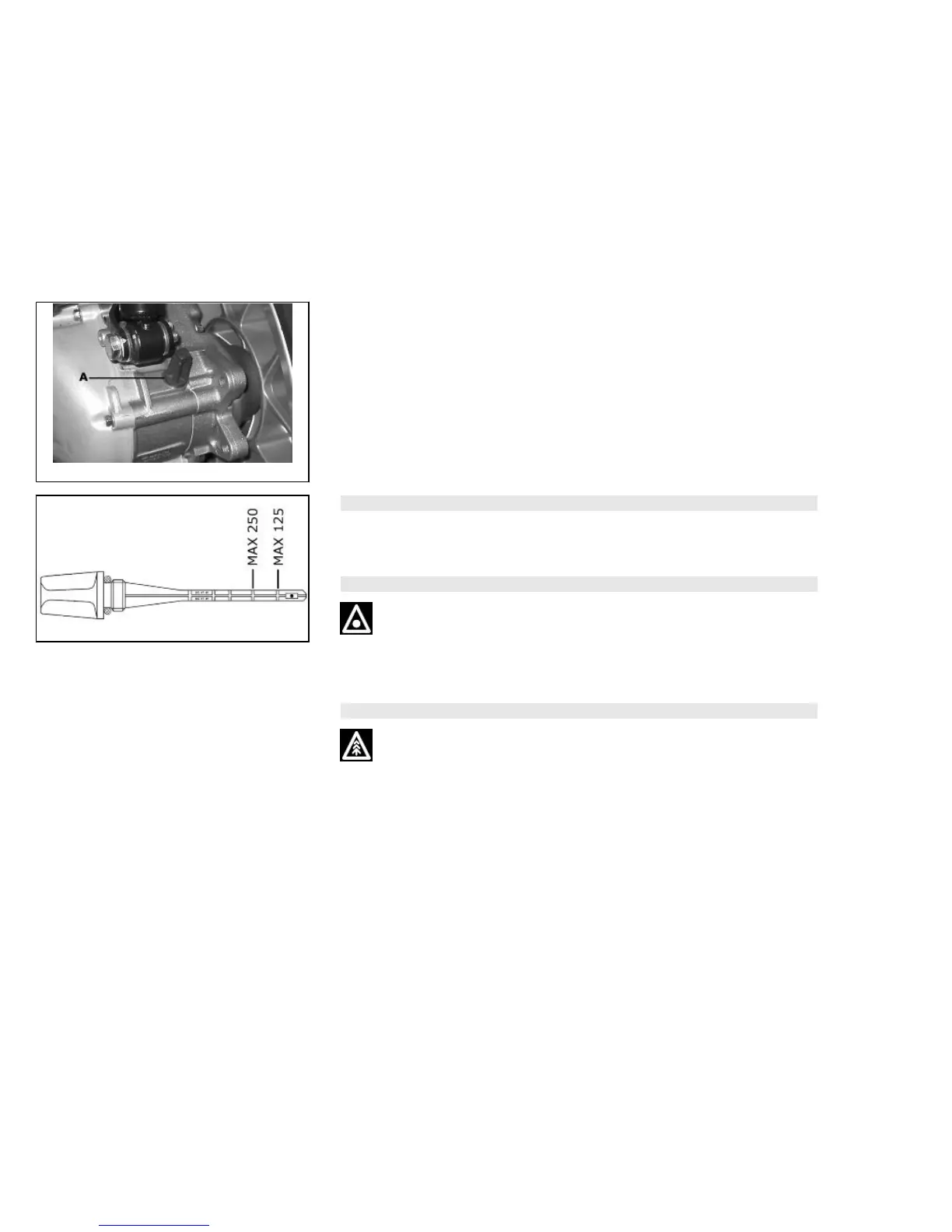

Proceed as follows in order to check the hub oil level:
1) Take the vehicle to a flat area and rest it on the support.
2) Unscrew the oil bar «A», dry it with a clean cloth and reinsert it, screwing it in
completely.
3) Extract the bar and check that the oil level reaches the first notch from the bottom.
4) Screw the bar back in, checking that it is tightly in place.
N.B.
THE REFERENCE MARKS ON THE HUB OIL LEVEL DIPSTICK, EXCEPT FOR
THE ONE INDICATING THE "MAX" LEVEL, REFER TO OTHER MODELS BY THE
MANUFACTURER AND HAVE NO SPECIFIC FUNCTION FOR THIS MODEL.
CAUTION
RIDING THE VEHICLE WITH INSUFFICIENT HUB LUBRICATION OR WITH CON-
TAMINATED OR IMPROPER LUBRICANTS ACCELERATES THE WEAR AND
TEAR OF THE MOVING PARTS AND CAN CAUSE SERIOUS DAMAGE.
CAUTION
USED OILS CONTAIN SUBSTANCES HARMFUL TO THE ENVIRONMENT. FOR
OIL REPLACEMENT, CONTACT AN AUTHORISED SERVICE CENTRE, WHICH
IS EQUIPPED TO DISPOSE OF USED OILS IN AN ENVIRONMENTALLY FRIEND-
LY AND LEGAL WAY.
