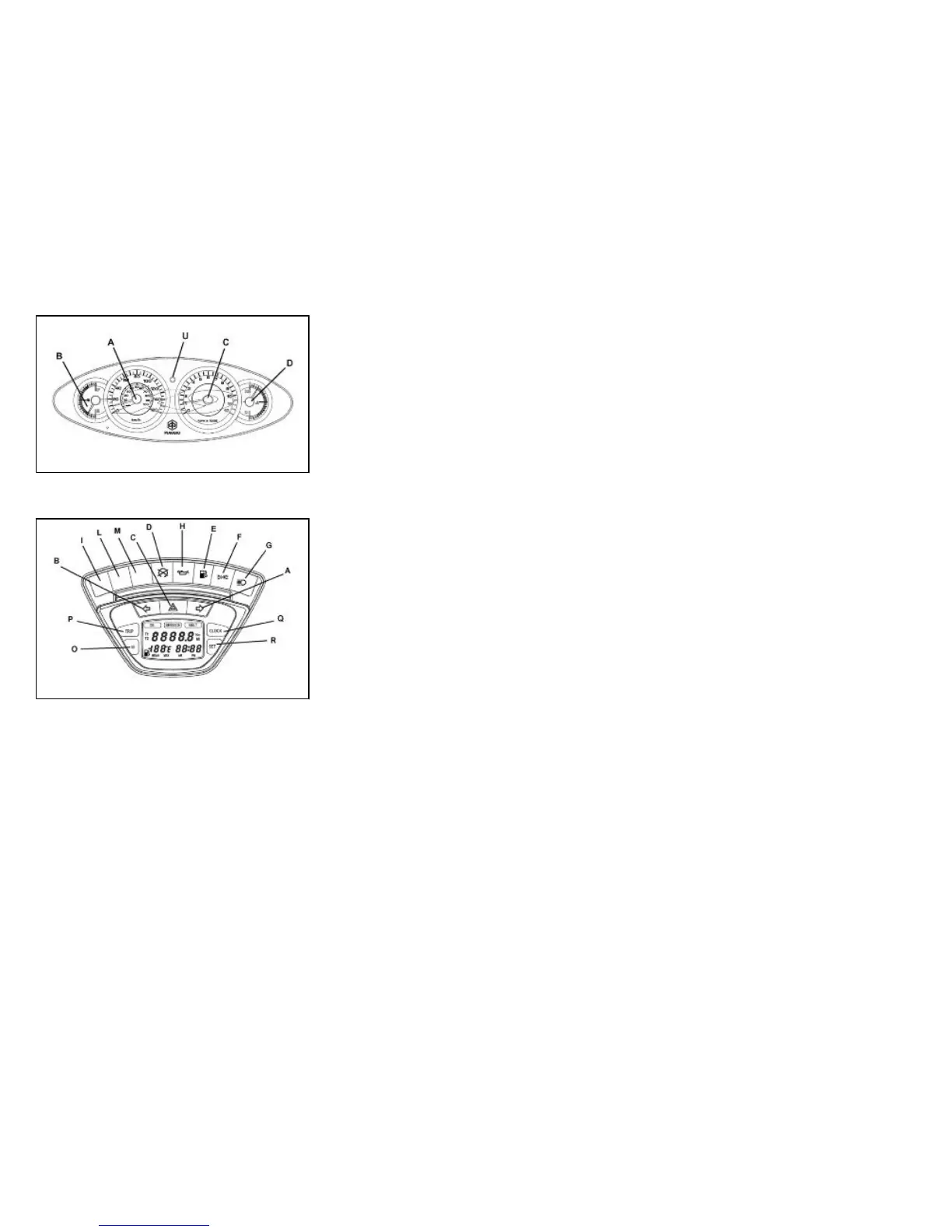

Analogue instrument panel (01_04)
A = Tachometer
B = Fuel level indicator
C = Rpm counter
D = Cooling fluid temperature indicator
U = Alarm led
01_05
Instruments (01_05)
A = RH direction indicator
B = LH direction indicator
C = Emergency flashing light indicator (4 direction indicators)
D = RUN-OFF (engine stop)/side stand open indicator
E = Fuel reverse indicator
F = Light indicator
G = Upper beam indicator
H = Low oil pressure indicator
I = Fitting for indicator light
L = Fitting for indicator light
M = Fitting for indicator light
N = LCD display
O = "Mode" button
