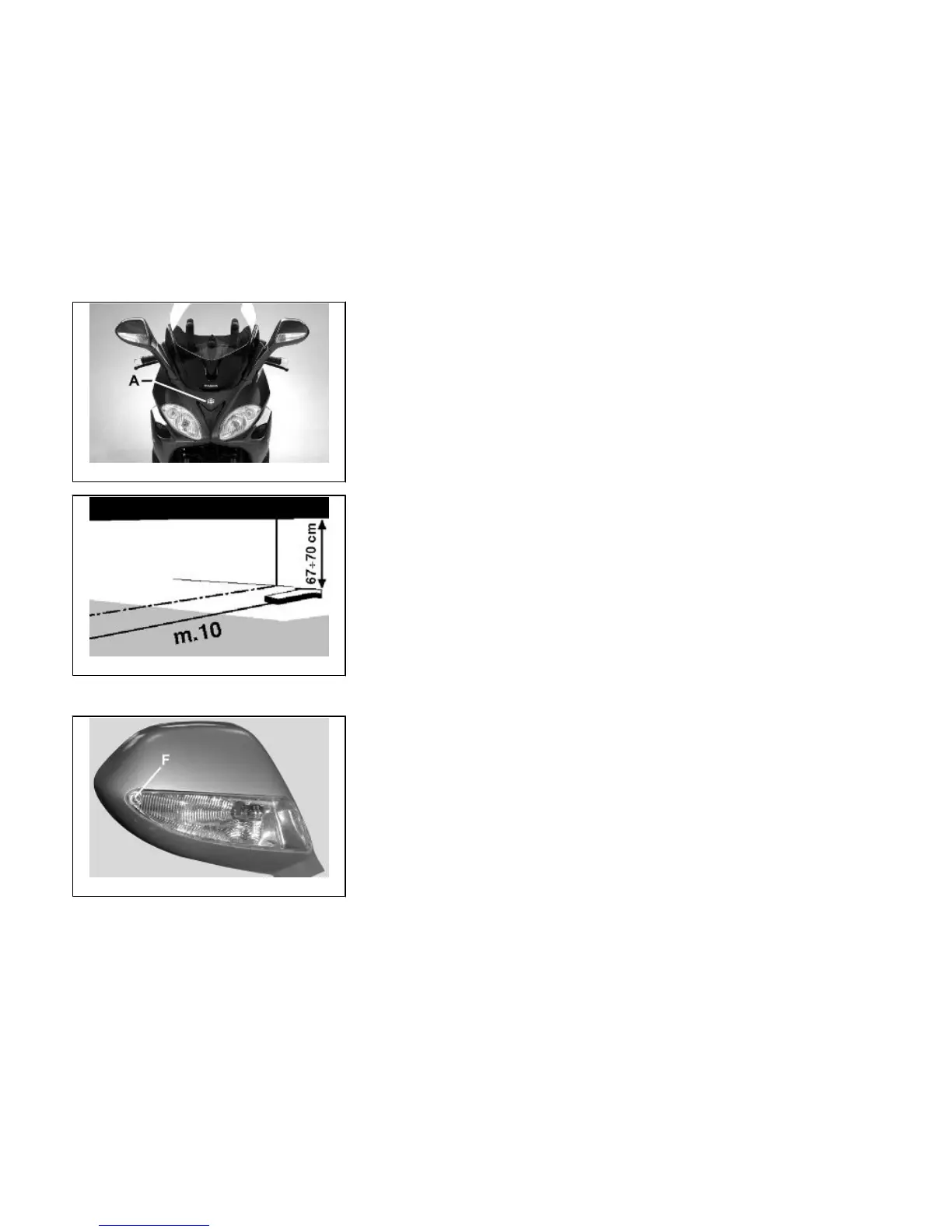

Headlight adjustment (03_32, 03_33)
Proceed as follows:
1. Place the scooter in riding condition, unloaded, with the tyres correctly inflated, on
a flat piece of ground at a distance of 10 m from a white screen situated in a shaded
area, making sure that the scooter is perpendicular to the screen;
2. Draw a horizontal line on the screen at a height of 67 to 70 cm from the ground;
3. Switch on the headlight at low beam and check that the horizontal borderline of the
projected light beam between the dark and light area is not higher than the horizontal
line drawn on the screen;
4. Otherwise, adjust the headlight with the screw on the front shield, that can be
reached after removing the Piaggio clip-on badge «A».
03_34
Front direction indicators (03_34)
To replace a burnt out bulb remove the right and left screw «F».
