03_40
03_41

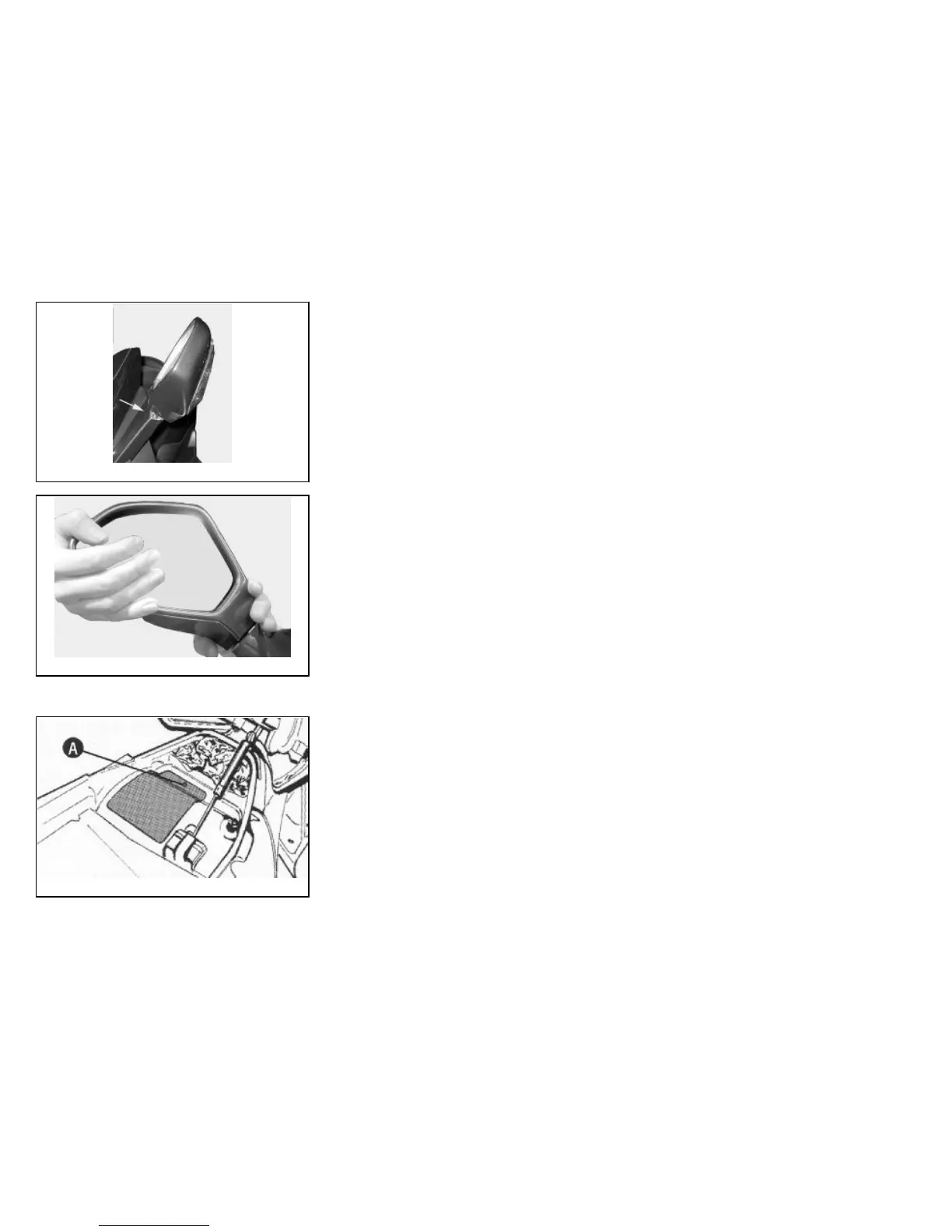

Rear-view mirrors (03_40, 03_41)
Adjust the mirrors by applying slight pressure to the side of the mirror to move it to the
desired position. The rear-view mirrors fold in when hit for enhanced safety. To set
the mirror back to its position, operate manually as indicated.
03_42
Idle adjustment (03_42, 03_43)
Proceed as follows:
1. Rest the vehicle on the side stand and open the saddle (as described in section
"Opening the saddle to access the helmet compartment").
2. Remove the fastening screw «A» and the carburettor access port.
3. Start up the motor, then screw in or unscrew screw «B» for the idling speed ad
justment, until obtaining the prescribed idling speed without the rear wheel being ro-
tated by the engine.
67
