Quantity: 2
License plate light bulb Type: ALL GLASS
Power: 12V - 5W
Quantity: 1
03_27
03_28
Front light group (03_27, 03_28, 03_29, 03_30, 03_31)

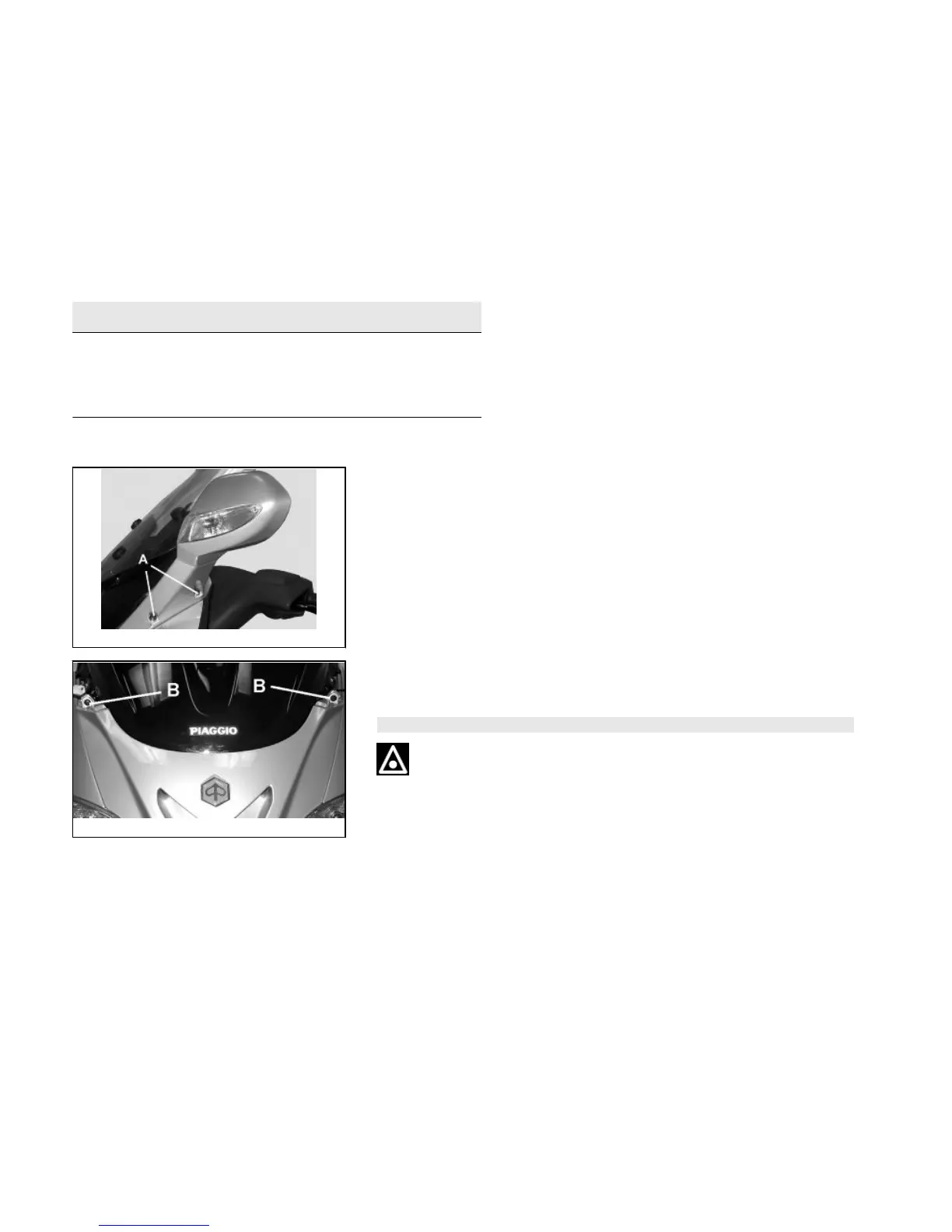

To remove the rear light assembly, proceed as follows:
1. Remove both rear-view mirrors by removing the relative caps corresponding to the
screws «A» and by undoing the 2 screws «A» on the right and left hand side, discon-
nect the electrical connections of the turn indicators.
2. Remove the two screws «B».
3. Remove the two screws «C».
4. Remove the screw «D».
5. Extract the headlight assembly from its housing by removing the three screws
«E»;
To reassemble, repeat the operation in the reverse order.
WARNING
HIGH AND LOW BEAM LIGHT ARE OF THE HALOGEN TYPE: DO NOT TOUCH
WITH YOUR FINGERS TO AVOID DAMAGING THEIR FUNCTION.
62
