PIAGGIO X9 Evolution 125 - Removing the Sides

03_09
03_10
03_11

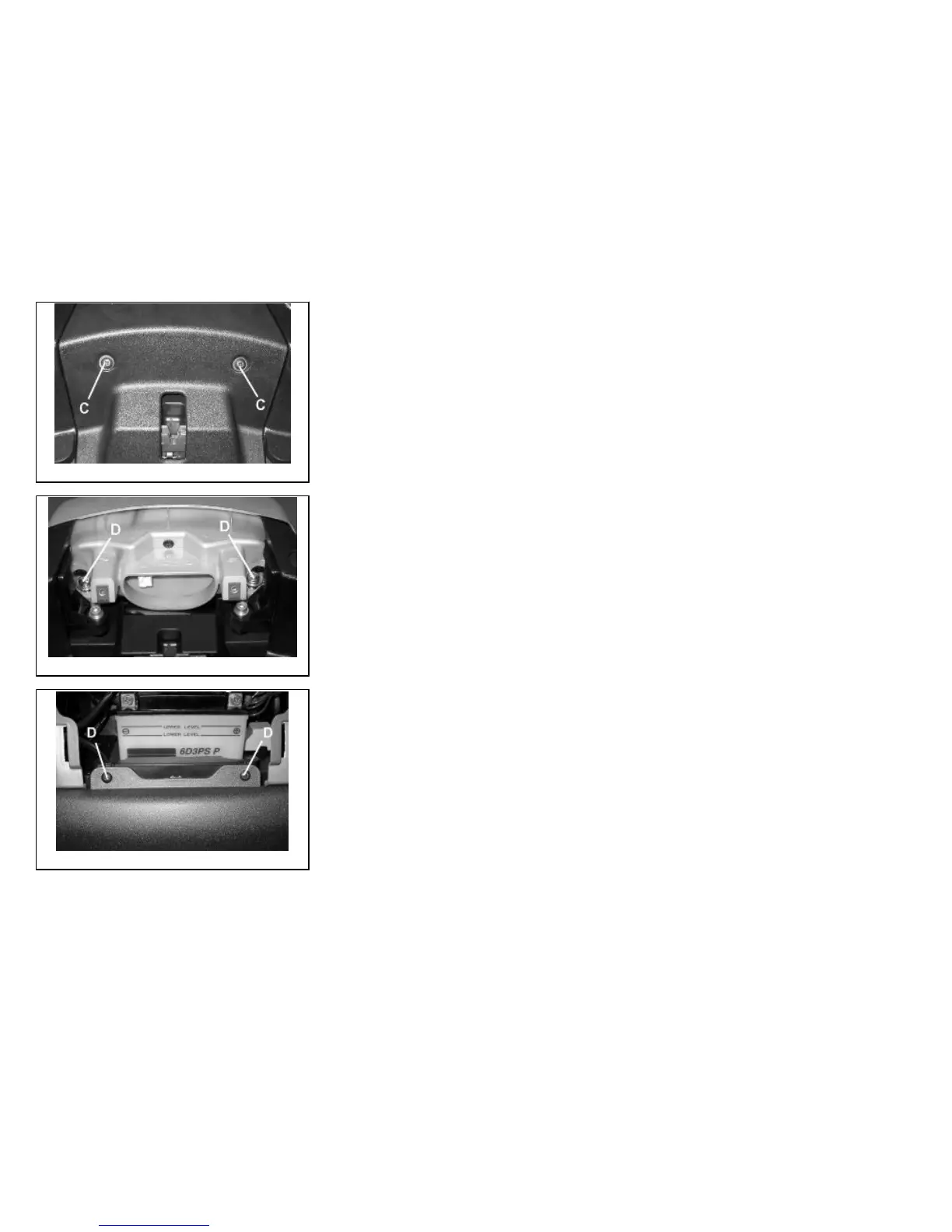

Removing the sides (03_09, 03_10, 03_11, 03_12, 03_13)
Proceed as follows:
1. Loosen the two fixing screws «C» and then remove the seat lock cap;
2. Loosen the two fixing screws «D» and then remove the stop light support;
3. Undo the two upper screws «D» and the two lower unions with the side fairings.
4. Undo the screw «A» on the fairing rear side;
5. Remove the screw «B» on the fairing lower side;
6. To remove the fairing, slide it towards the vehicle rear part so as to release the fixing
tongues.
The figure shows the removal of the LHS fairing; the RHS can be removed following
the same procedure.
