End gear

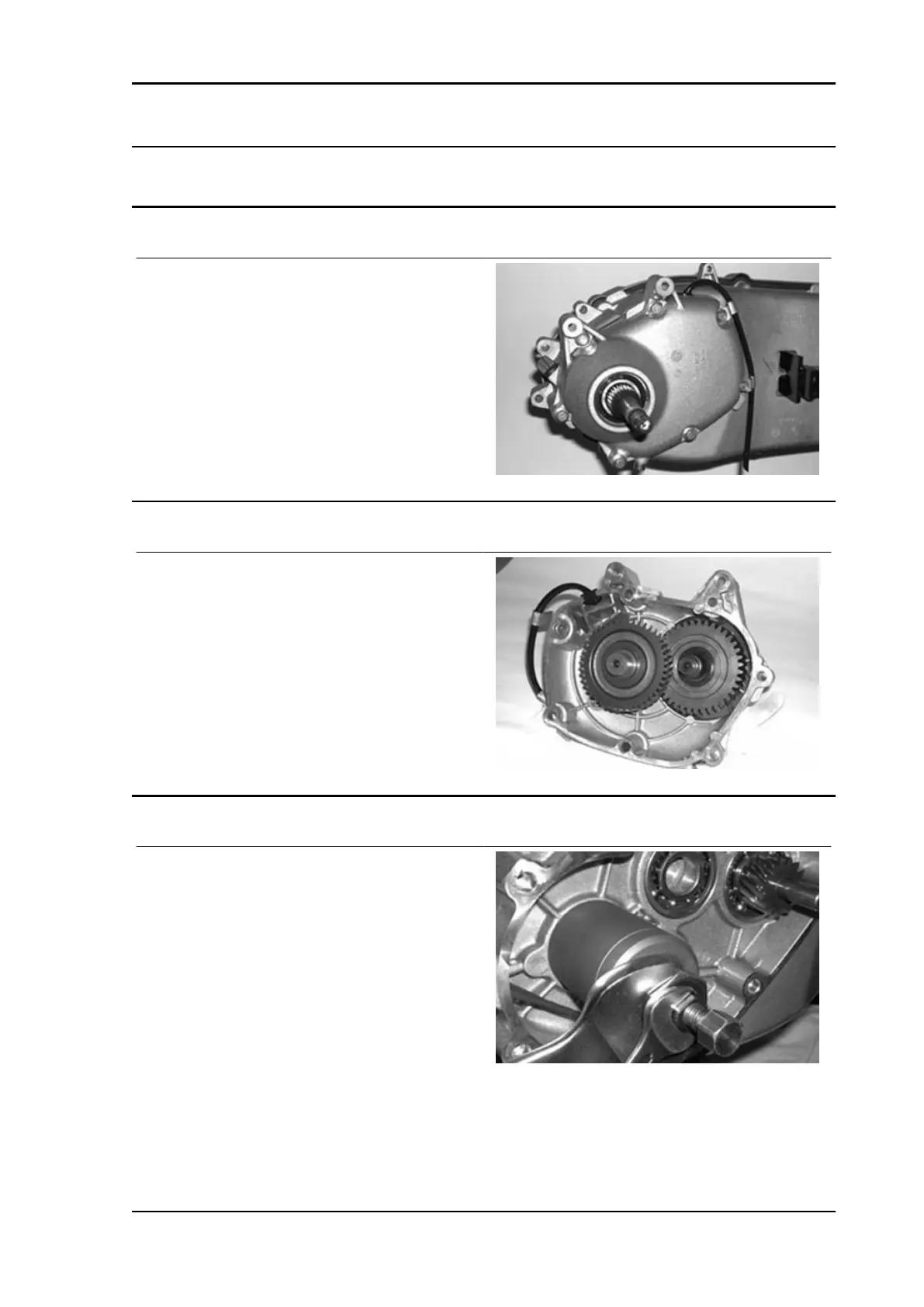

Removing the hub cover
- Drain the rear hub oil through the oil drainage cap
located under the engine.
- Drain the rear hub oil through the oil drainage cap
located under the engine.
-Remove the 7 fastening screws. Remove the hub
cover and the relevant gasket.
Removing the wheel axle
- Remove the countershaft.
- Remove the wheel axis complete with gear.
Removing the hub bearings
- Check all bearings (wear, clearance and noise).
In case of anomalies, proceed as follows.
To remove the gear shaft bearing on the engine
crankcase, use the following parts.
Specific tooling
001467Y014 Pliers to extract ø 15-mm bearings
001467Y034 Pliers to extract ø 15-mm bearings
001467Y031 Bell
