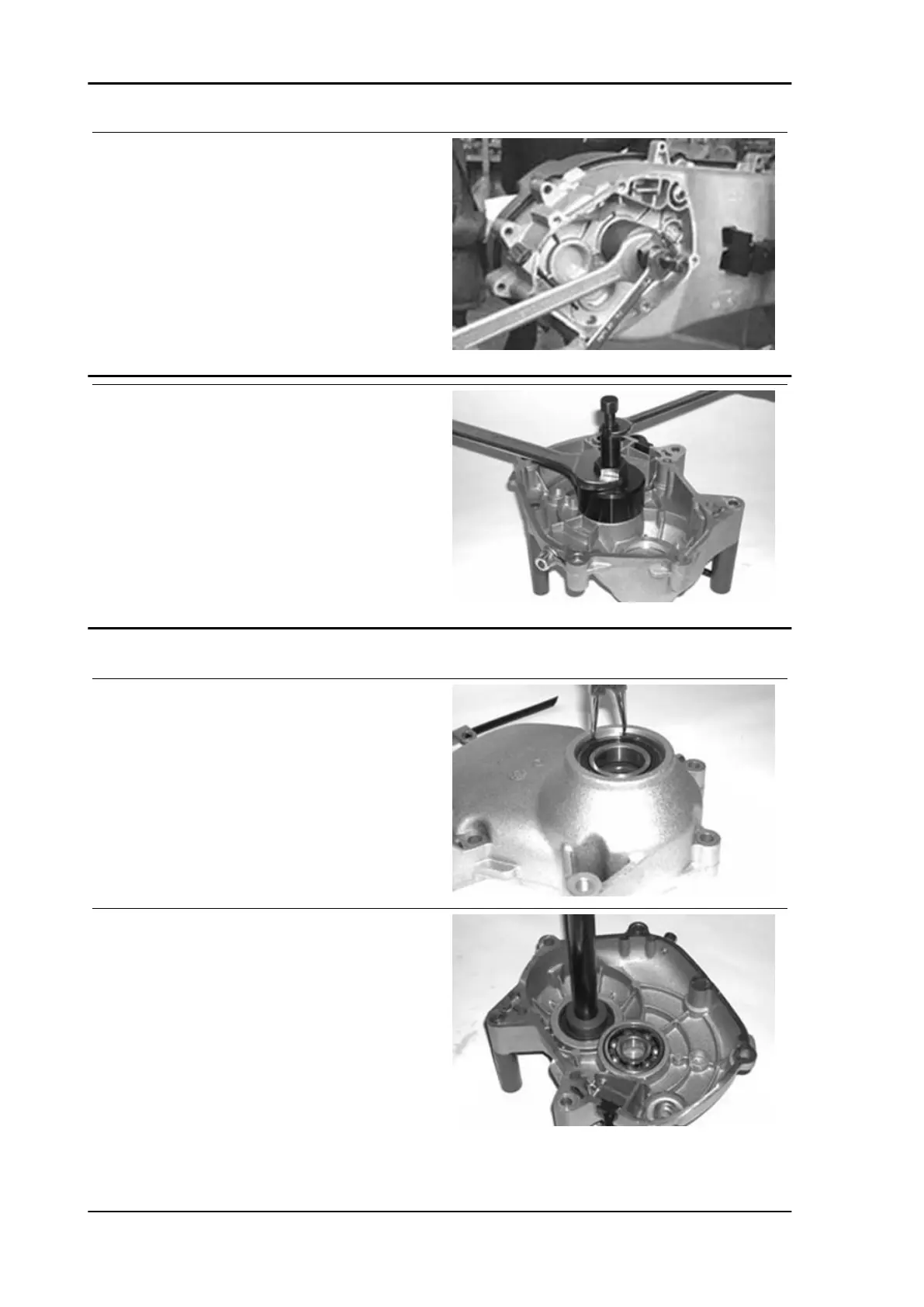

PIAGGIO X9 Evolution 500 - Page 108

- Use the special extractor to disassemble the
bearing on the engine chassis of the countershaft.
Specific tooling
001467Y006 Pliers to extract 20 mm bearings
001467Y035 Belle for OD 47-mm bearings
- Support the hub cover using the column kit.
- Pull out the bearing using the special tool.
Specific tooling
020476Y Stud bolt set
001467Y006 Pliers to extract 20 mm bearings
001467Y007 Driver for OD 54-mm bearings
Removing the wheel axle bearings
- Take out the clip on the outside of the gearbox
cover.
- Support the hub cover using the column kit.
- Pull out the bearing using the special tool.
Specific tooling
020476Y Stud bolt set
020376Y Adaptor handle
020477Y Adaptor 37 mm
020483Y 30 mm guide
Engine X9 Evolution 500
ENG - 108
