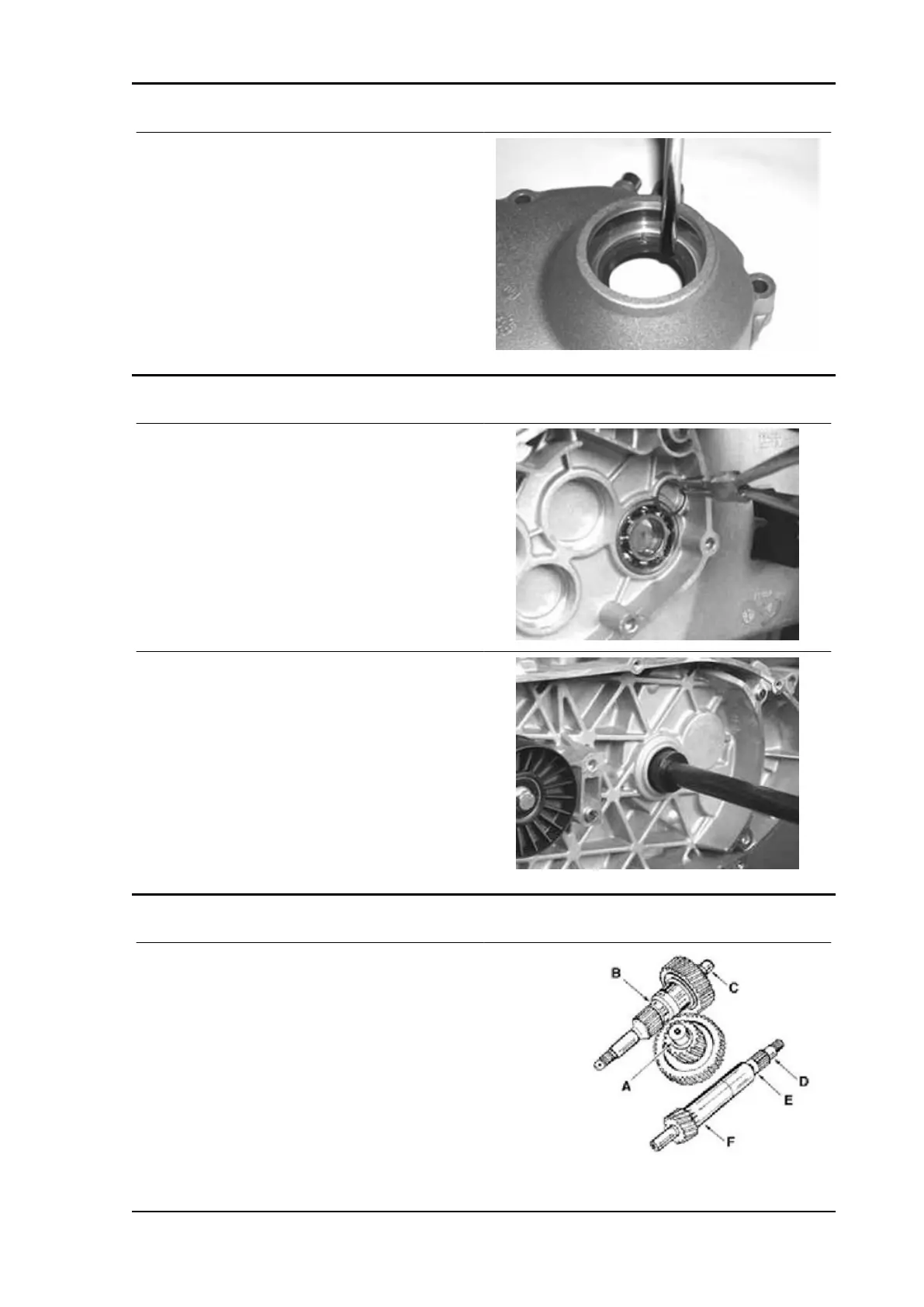

- Remove the oil guard using a screwdriver.
Removing the driven pulley shaft bearing
- If you have to remove the driven pulley shaft, the
relevant bearing and the oil guard, remove the
transmission cover and the clutch unit as descri-
bed in the Automatic transmission chapter.
- Extract the driven pulley shaft from its bearing.
- Remove the oil guard using a screwdriver into the
hub gear box.
- Remove the Seeger ring shown in the figure.
- Pull out the driven pulley shaft bearing from the
engine crankcase using the special tool.
Specific tooling
020376Y Adaptor handle
020358Y 37x40-mm adaptor
020364Y 25-mm guide
Inspecting the hub shaft
- Check that the 3 shafts exhibit no wear or defor-
mation on the grooved surfaces, at the bearings
and at the oil guards.
- In case of faults, replace the damaged parts.
