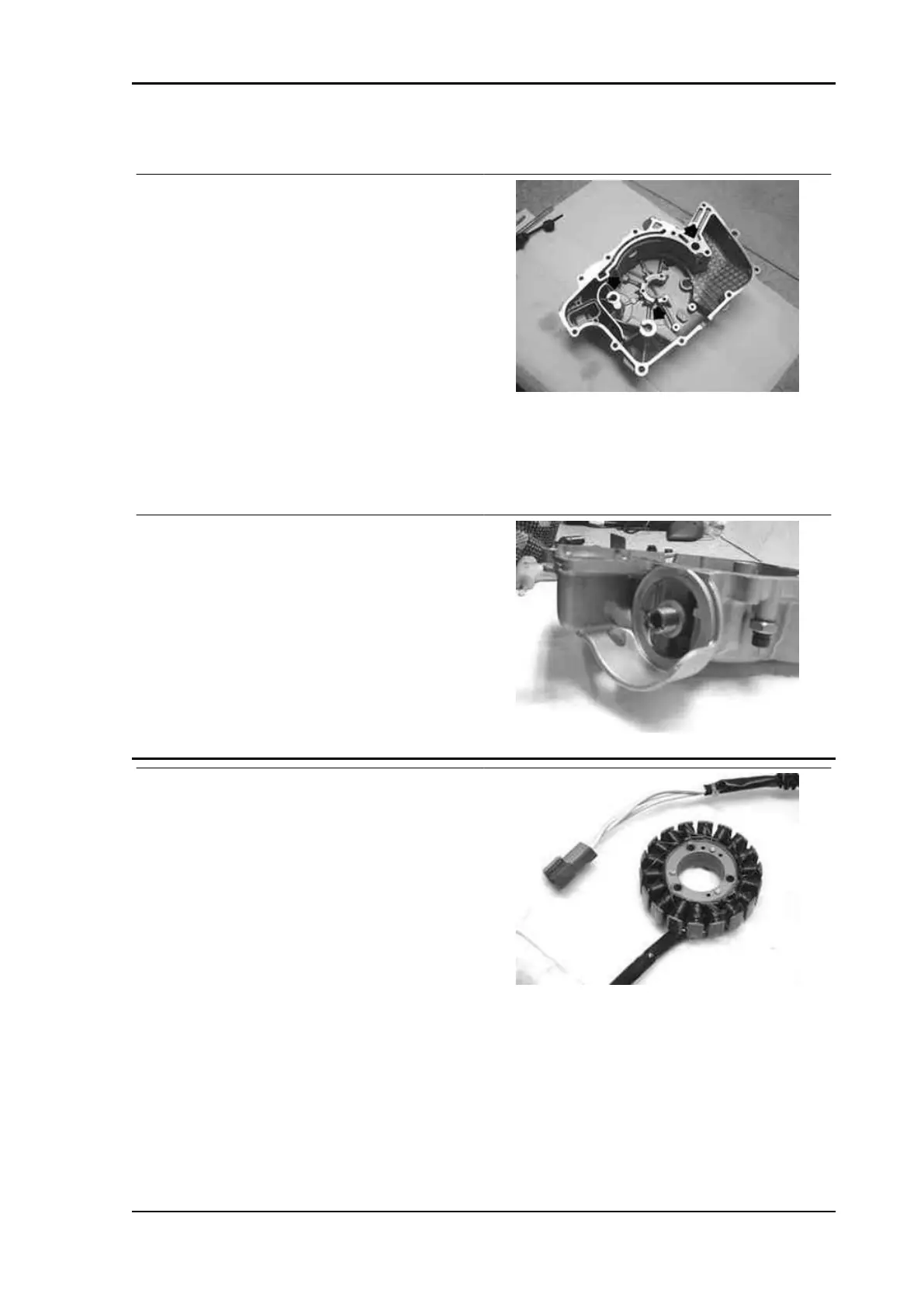

Inspecting the cover components
- Check that the mounting surface of the crankcase
is not worn or deformed.
- Check that the by-pass valve seat, the torque
limiter and the water pump shaft are free from
wear.
Characteristic
By-pass housing hole diameter:
13.9 mm
Connection diameter for start-up gear shaft:
12 mm
Connection diameter for pump shaft:
8 mm
- Check that the oil filter union and matching sur-
face exhibit no deformations or wear.
- Check the condition of the stator and of the re-
spective cable harness.
