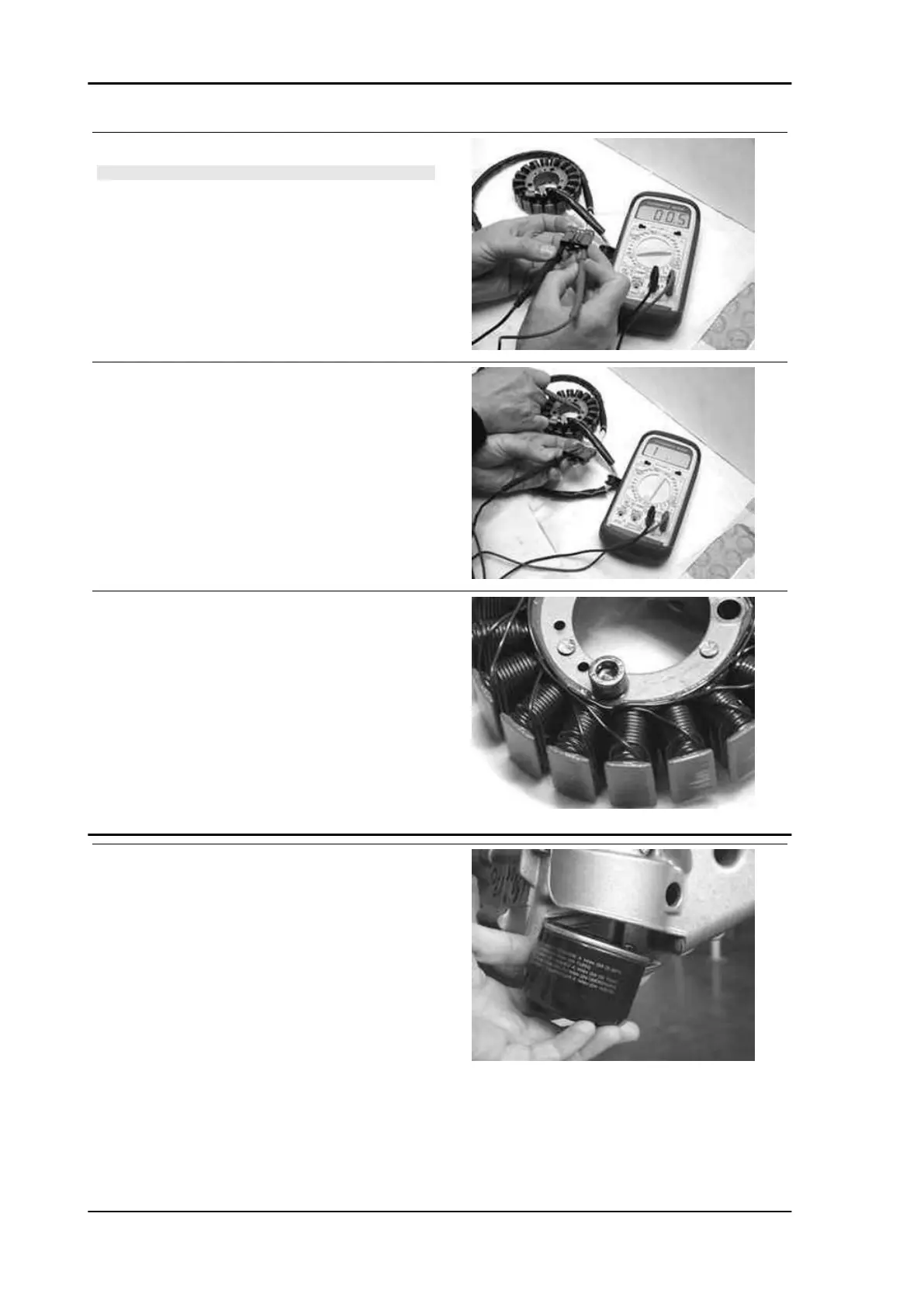

- Check the continuity between the 3 phases.
N.B.
VALUES ARE STATED AT AMBIENT TEMPERATURE. A
CHECK WITH THE STATOR AT OPERATING TEMPERA-
TURE MAY RESULT IN VALUES HIGHER THAN THOSE
STATED.
Electric characteristic
Resistance:
0.2 - 1 Ω
- Check the ground insulation of each phase.
- If a fault is found, carry out a thorough check of
the cable harness that contains two types of cable:
Rigid cables close to the stator and flexible cables
close to the connector.
- Check that the winding is positioned so as not to
interfere with the heads of the retaining screws.
- Install a new oil filter, lubricate the gasket, screw
on and finally tighten to the prescribed torque.
Locking torques (N*m)
Engine oil filter 12 - 16
Engine X9 Evolution 500
ENG - 120
