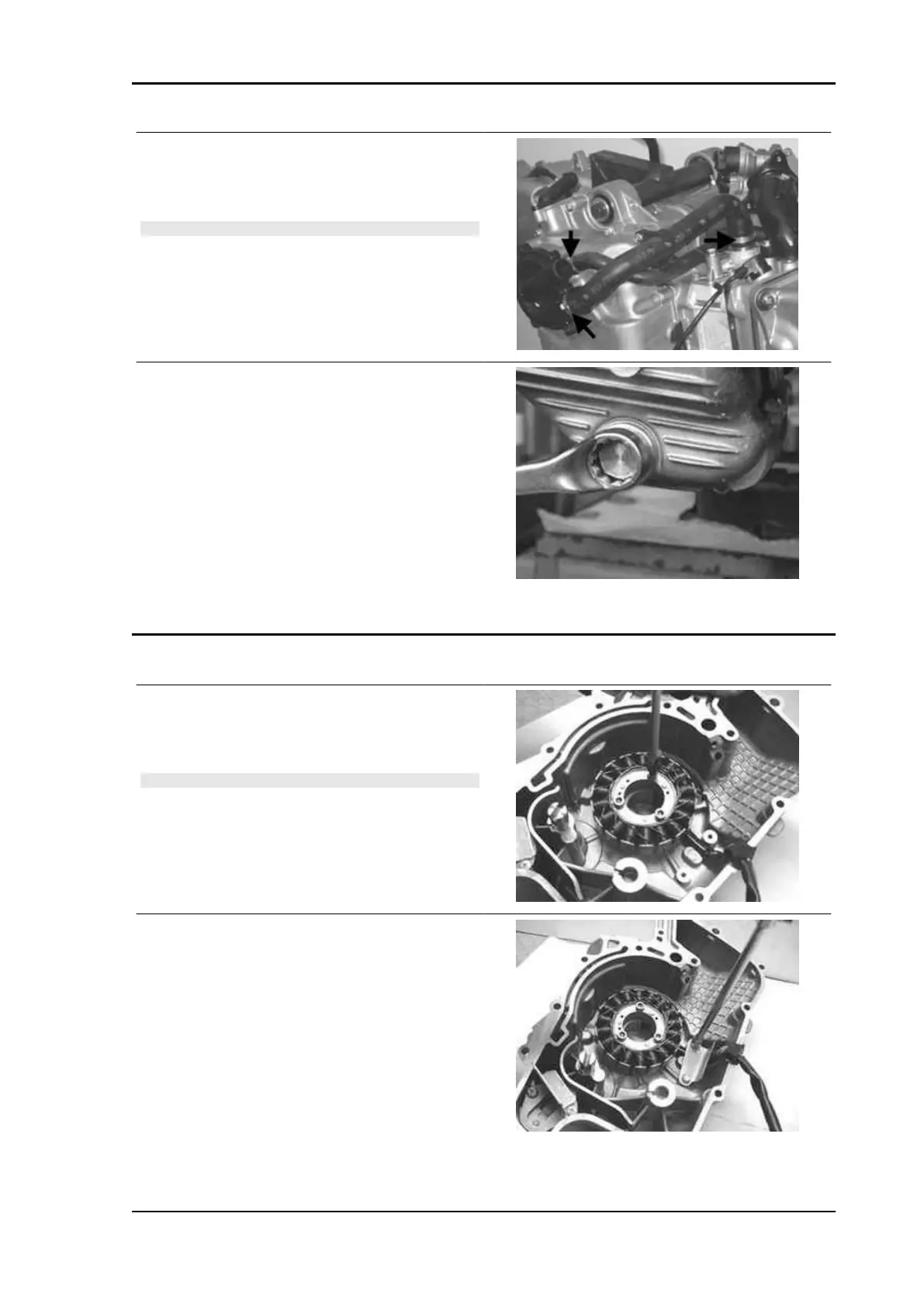

- Install the supply hose to the cylinder and con-
nect the return hose to the pump cover using 3 new
clamps.
N.B.
TIGHTEN THE CLAMPS USING APPROPRIATE PLIERS,
PAYING ATTENTION NOT TO CONSTRICT THE HOSES
BUT ALSO TAKING CARE TO TIGHTEN THE CLAMPS SUF-
FICIENTLY.
- Install the pre-filter again and insert the engine oil
drain plug, tightening to the prescribed torque.
- Refill the engine with the prescribed type of oil.
Recommended products
AGIP CITY HI TEC 4T Engine oil
SAE 5W-40, API SL, ACEA A3, JASO MA Syn-
thetic oil
Locking torques (N*m)
Engine oil drainage plug 24 ÷ 30
Refitting the stator
- Install the stator assembly together with the wir-
ing harness, tightening the 3 screws to the pre-
scribed torque.
N.B.
INSERT THE RUBBER WIRING SEALING GASKET INTO
THE SPECIAL SEAT ON THE CRANKCASE.
Locking torques (N*m)
Stator retainers 8 - 10
- Install the wiring guide bracket tightening the 2
screws to the prescribed torque.
Locking torques (N*m)
Stator cable harness guide bracket screws 3 - 4
X9 Evolution 500 Engine
ENG - 121
