Specification Desc./Quantity
4 Light switch
5 Side stand switch
6 Engine stop switch
7 Voltage regulator
8 Roof lamp for box helmet illumination with lamp
9 Helmet compartment lighting button
10 Battery 12V - 14 Ah
11 Fuse no. 13 30 A
12 Main remote control switch
13 Diode 2 A
14 Key switch contacts
15 No. 2 bulbs for front sidelight 12V-3W
16 License plate light bulb 12V - 5W
17 Two (2) taillight bulbs 12V - 5W
18 Digital instrument unit
19 4 Turn indicator bulbs 12V-10W
20 Indicators switch
21 Emergency flashing light button (4 direction indicators)
22 Engine stop remote control switch
23 Connettore per predisposizione accessori
24 Start-up/injection electronic control unit
25 Fuse no. 5 15 A
26 Fuse no. 8 7,5 A
27 Fuse no. 4 5 A
28 Fuse no. 12 7,5 A
29 Fuse no. 11 7,5 A
30 Fuse no. 9 15 A

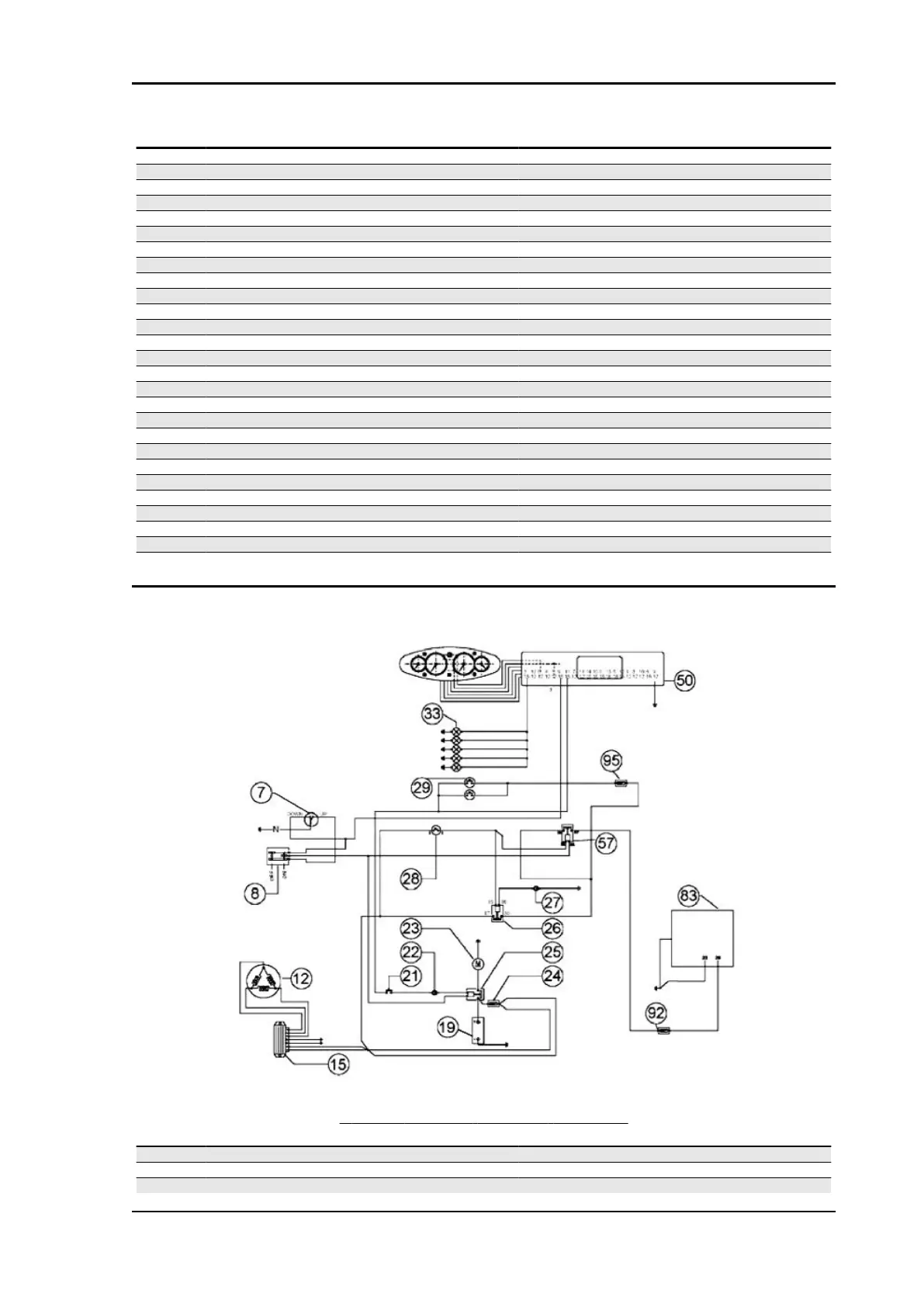

Battery recharge and starting
BATTERY RECHARGE AND START-UP SECTION
Specification
Desc./Quantity
1 Side stand switch
2 Engine stop switch
3 Magneto flywheel
X9 Evolution 500 Electrical system
ELE SYS - 59
