Specification Desc./Quantity
4 Voltage regulator
5 Battery 12V - 4Ah
6 Start up button
7 Diode 6A
8 Starter motor
9 Fuse no. 13 30 A
10 Remote starter switch
11 Main remote control switch
12 Diode 2 A
13 Key switch contacts
14 Two brake light buttons
15 No. 5 bulbs for brake light 12V-2,3W
16 Digital instrument unit
17 Control unit power supply remote control switch (engine
stop)
18 Start-up/injection electronic control unit
19 Fuse no. 4 5 A
20 Fuse no. 10 7,5A

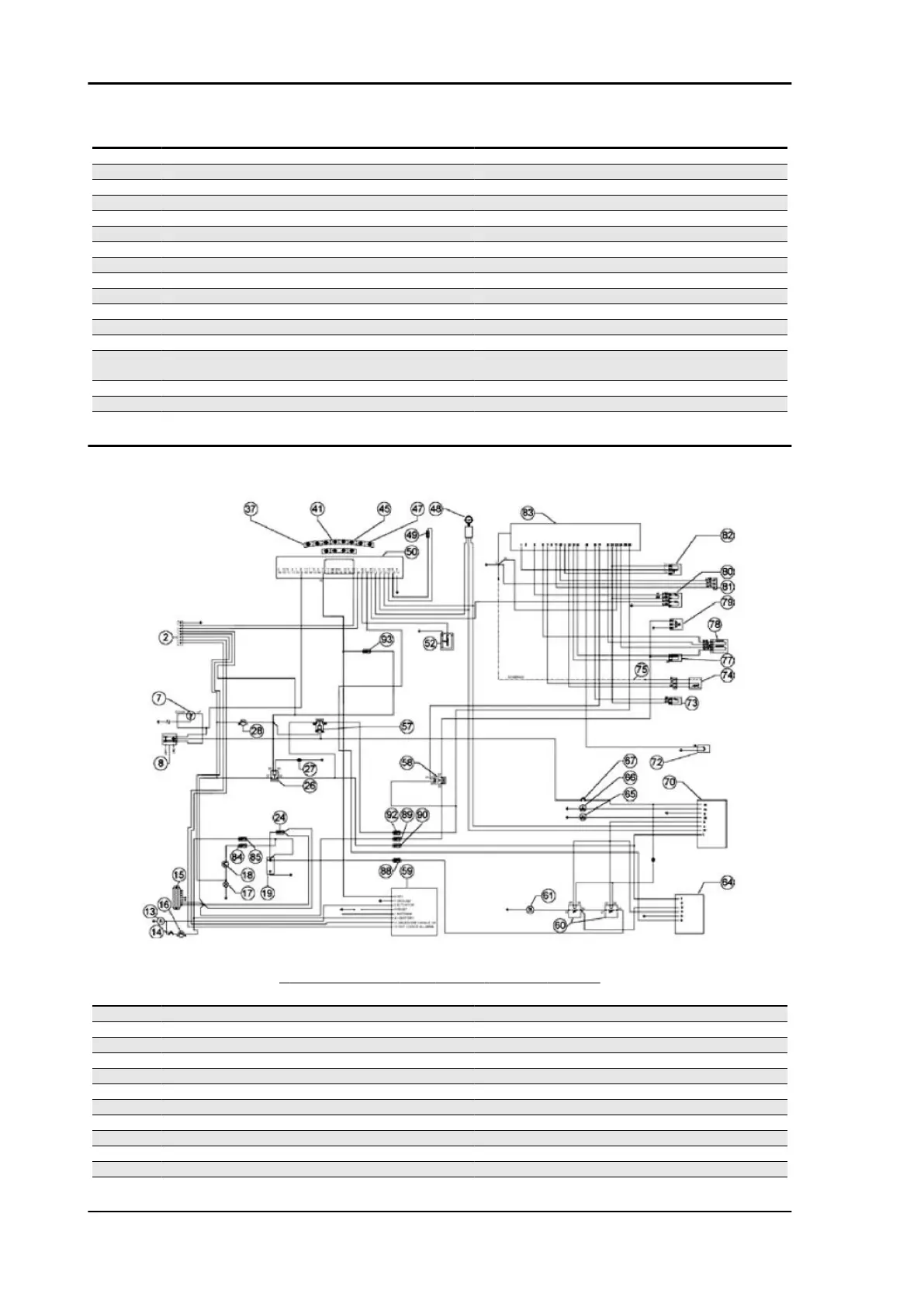

Level indicators and enable signals section
LEVEL INDICATORS AND ENABLE SIGNALS SECTION
Specification
Desc./Quantity
1 Anti-theft alarm fitting
2 Side stand switch
3 Engine stop switch
4 Saddle opener actuator
5 Saddle opening button
6 Voltage regulator
7 Key switch contacts
8 Roof lamp for box helmet illumination with lamp
9 Helmet compartment lighting button
10 Battery 12V - 4Ah
11 Fuse no. 13 30 A
12 Main remote control switch
Electrical system X9 Evolution 500
ELE SYS - 60
