Lights list
LIGHTS LIST
Specification Desc./Quantity
1 Dipped beam light N° 1, 12V-55W, halogen
2 Upper beam light N° 1, 12V-55W, halogen
3 Front position lights N° 2, 12V-3W, all glass
4 Front direction indicator lights N° 2, 12V-10W, spherical
5 Rear position lights N° 2, 12V-5W, spherical
6 Stop lights N° 5, 12V-2,3W, spherical
7 Rear turn indicator bulbs Two, 12V-10W, spherical
8 Instrument panel lights N° 5, 12V-2W, all glass
9 Helmet compartment light N° 1, 12V-5W, cylindrical
10 Number plate lights N° 1, 12V-5W, cylindrical
Fuses
The electric system is equipped with:

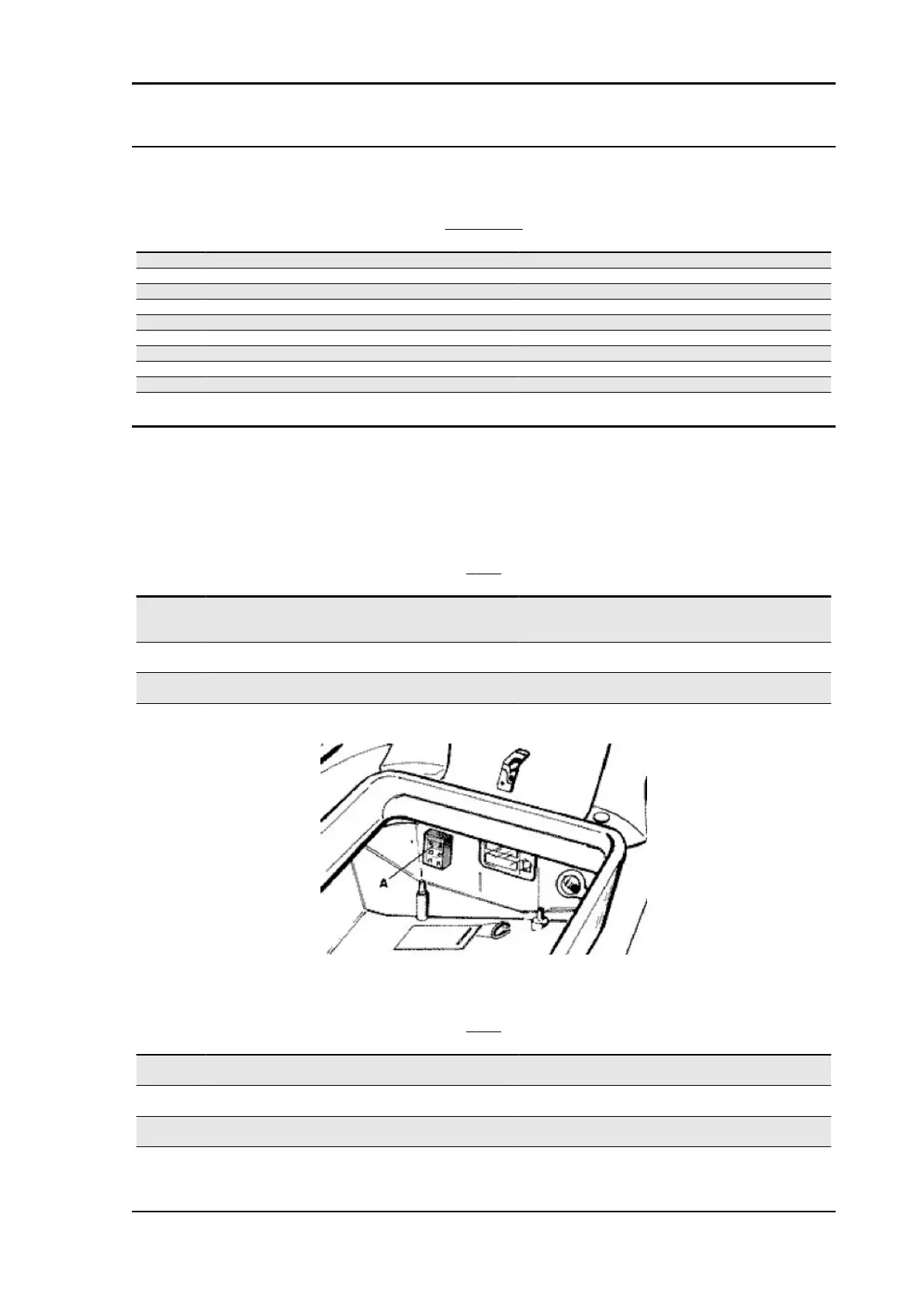

1. four fuses «A» into the under saddle compartment.
FUSE
Specification
Desc./Quantity
1 N.1 Capacity: 15 A
Protected Circuits : Socket 12V for users- Under sad-
dle compartment light
2 N.1 Capacity: 10 A
Protected Circuits : Saddle opening by button
3 N.1 Capacity: 10 A
Protected Circuits : PICS device
4 N.1 Capacity: 7,5 A
Protected Circuits : Dipped and high beam bulb
2. five fuses «B» next to the battery, on the left side.
FUSE
Specification
Desc./Quantity
1 N.1 Capacity: 70 A
Protected Circuits : Electro-hydraulic stand
2 N.1 Capacity: 5 A
Protected Circuits : Electro-hydraulic stand
3 N.1 Capacity: 10 A
Protected Circuits : Fuel pump - Injector - H.V. coil
4 N.1 Capacity: 3 A
Protected circuits: Immobilizer (Decoder and EMS en-
gine management control unit)
