Specification Desc./Quantity
5 N.1 Capacity: 5 A
Protected circuits: Diagnostic outlet - Decoder and
control unit enable signal

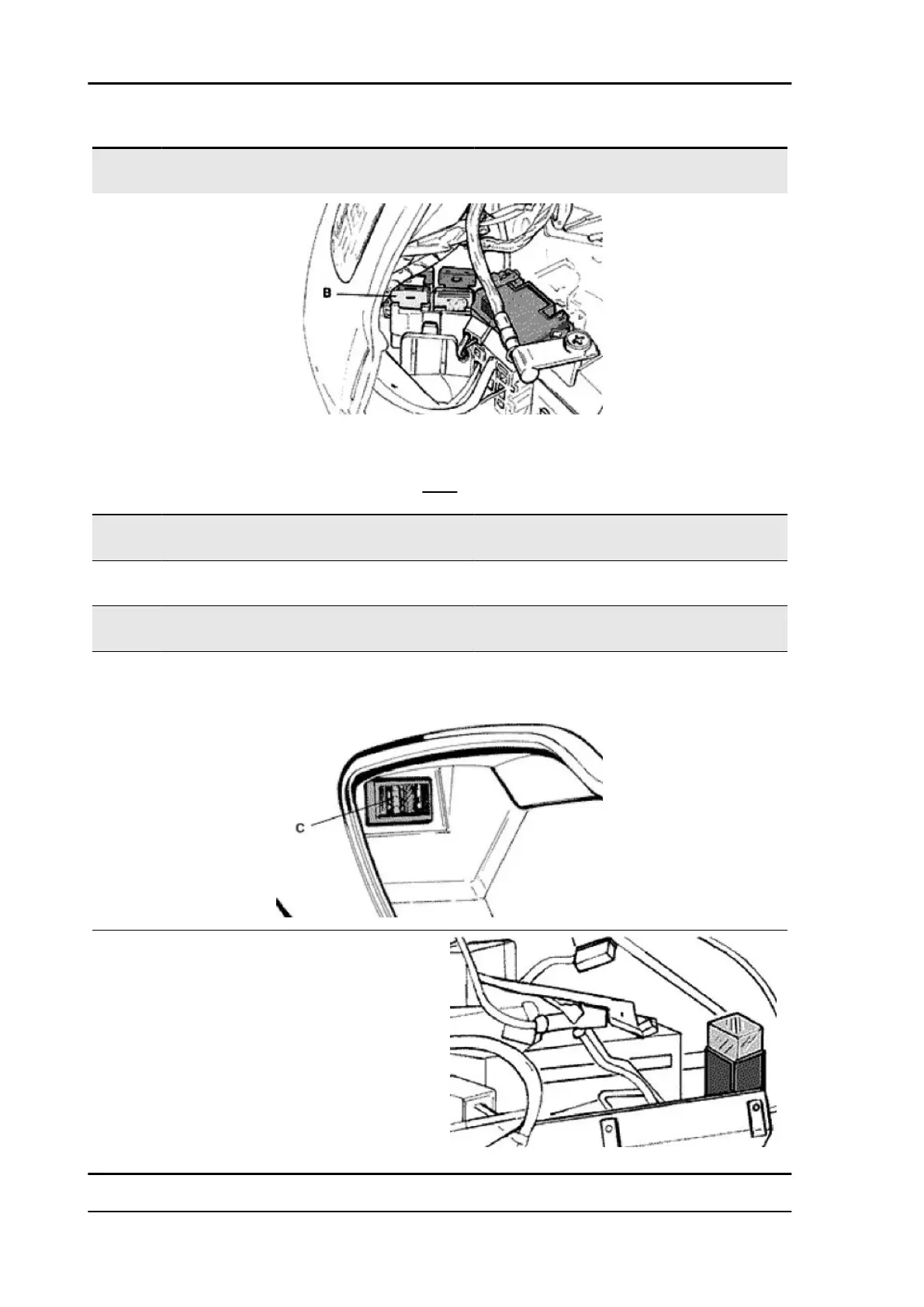

3. four fuses «C» into the trunk on the left side.
FUSE
Specification Desc./Quantity
1 N.1 Capacity: 15 A
Protected circuits: Horn - High beam bulb - Accesso-
ries
2 N.1 Capacity: 7,5 A
Protected circuits: Start-up enable signal - Brake light
lamp
3 N.1 Capacity: 7,5 A
Protected circuits: Front and rear position light - Num-
ber plate light
4 N.1 Capacity: 7,5 A
Protected circuits: PICS - Saddle opening by remote
control
4. a 30A fuse (main fuse), located next to the bat-
tery on the right side and on the start-up remote
control switch; a spare fuse is provided below it.
Electrical system X9 Evolution 500
ELE SYS - 64
