«Oil», «Service» and «Belt». The calendar is programmed from 2000 to 2050, to adjust the date and
time use the two buttons «Clock» and «Set».
To guarantee the vehicle safety, every time the key switch is set to «ON», all of the digital indications
are checked.
The digital section also has a functional check of the 4 analogue instruments and of the flashing light
control. To start this check, keep buttons «Clock» and «Set» pressed and set the key switch to
«ON». Within 4 seconds, the software version is displayed, the instruments indicate the scale bottom
and the direction indicators turn on.
At the end of the above procedure, there is the normal check of the indicator lights.

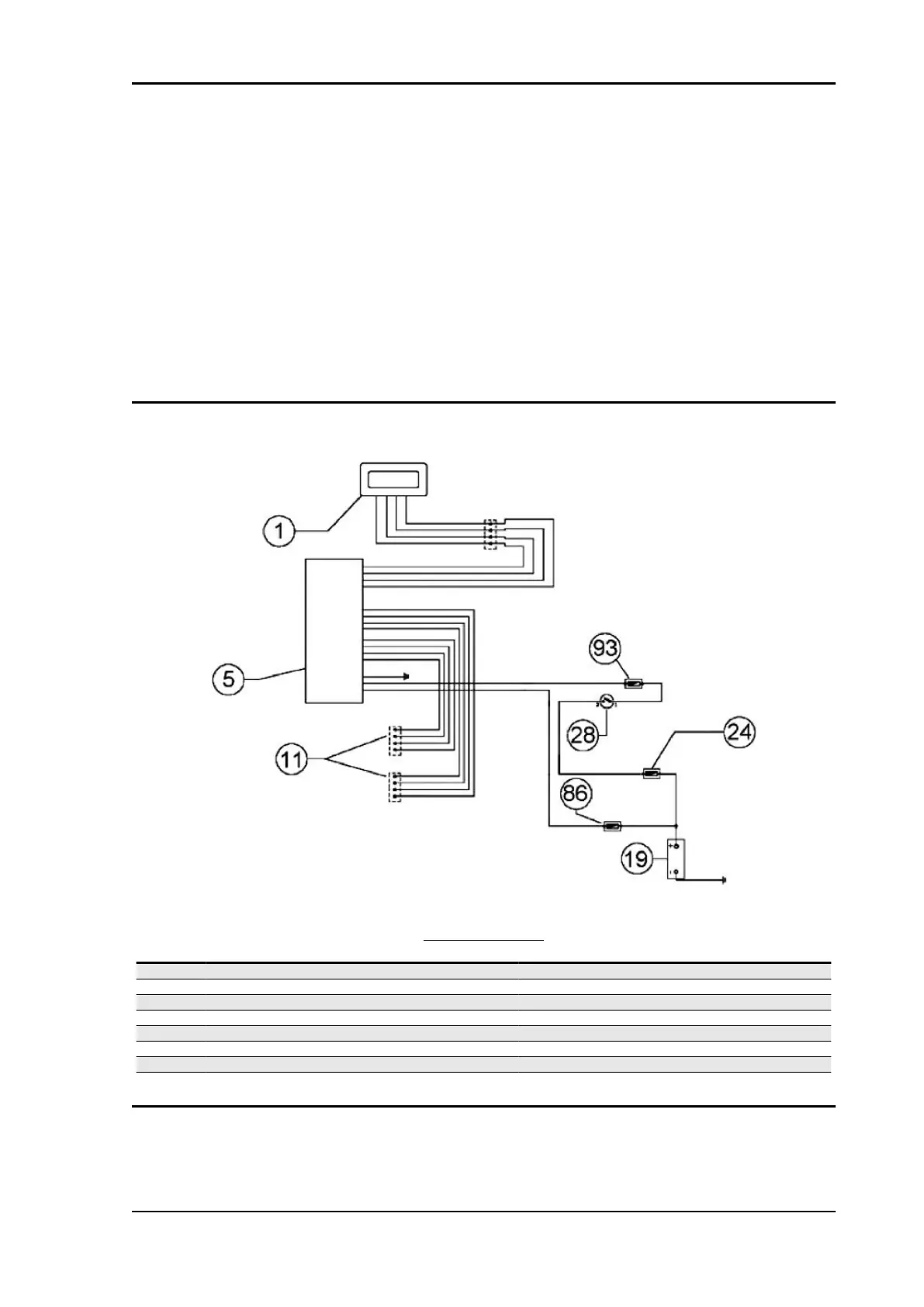

pics
PICS SECTION
Specification
Desc./Quantity
1 Display pics
2 Intercom Controller
3 Intercom connectors
4 Battery 12V - 4Ah
5 Fuse no. 13 30 A
6 Key switch contacts
7 Fuse no. 7 10A
8 Fuse no. 12 7,5 A
X9 Evolution 500 Electrical system
ELE SYS - 67
