to 1/10 of the battery rated capacity). Connections to the power supply source must be implemented
by connecting corresponding poles (+ to + and - to - ).
Specific tooling
020333Y Single battery charger
020334Y Multiple battery charger
Cleaning the battery
The battery should always be kept clean, especially on its top side, and the terminals should be coated
with vaseline.
CAUTION
NEVER USE FUSES WITH A CAPACITY HIGHER THAN THE RECOMMENDED CAPACITY. USING
A FUSE OF UNSUITABLE RATING MAY SERIOUSLY DAMAGE THE VEHICLE OR EVEN CAUSE
A FIRE.
CAUTION
CHARGE THE BATTERY BEFORE USE TO ENSURE OPTIMUM PERFORMANCE. INADEQUATE
CHARGING OF THE BATTERY WITH A LOW LEVEL OF ELECTROLYTE BEFORE IT IS FIRST
USED SHORTENS THE LIFE OF THE BATTERY.
If the scooter is not used for a given time (1 month or more) it will be necessary to periodically recharge
the battery.
The battery runs down completely in the course of three months. If it is necessary to refit the battery in
the vehicle, be careful not to reverse the connections, remembering that the ground wire (black) marked
(-) must be connected to the negative clamp while the other two red wires marked (+) must be con-
nected to the clamp marked with the + positive sign.
Dry-charge battery
- BATTERY ELECTROLYTE IS TOXIC AND IT MAY CAUSE SERIOUS BURNS. IT CONTAINS SUL-
PHURIC ACID. AVOID CONTACT WITH EYES, SKIN AND CLOTHING.
IN CASE OF CONTACT WITH EYES OR SKIN, RINSE WITH ABUNDANT WATER FOR ABOUT 15
MINUTES AND SEEK MEDICAL ATTENTION AT ONCE.
IF IT IS SWALLOWED, IMMEDIATELY DRINK LARGE QUANTITIES OF WATER OR VEGETABLE
OIL. SEEK IMMEDIATE MEDICAL ATTENTION.
THE BATTERIES PRODUCE EXPLOSIVE GAS; KEEP THEM AWAY FROM NAKED FLAMES,
SPARKS AND CIGARETTES. VENTILATE THE AREA WHEN RECHARGING INDOORS.
ALWAYS WEAR EYE PROTECTION WHEN WORKING IN THE PROXIMITY OF BATTERIES.
KEEP OUT OF THE REACH OF CHILDREN

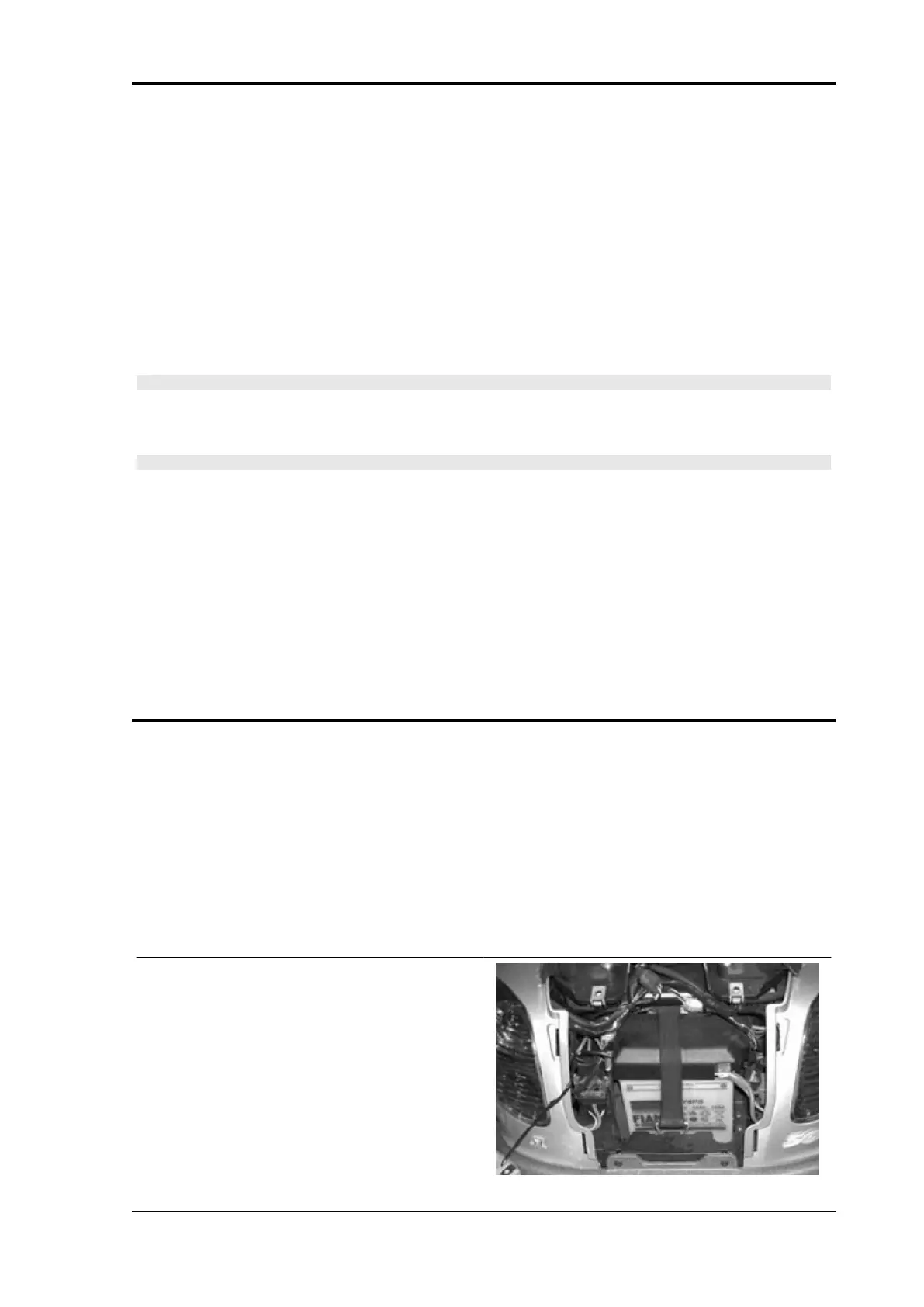

- Lift the seat.
- Remove the two screws and the seat lock cover.
- Loosen the two Allen screws, pull the rear cover
upwards and detach the stop light wiring.
- Remove the securing belt and the plastic cover.
- Remove the battery by detaching the negative (-)
terminal first, followed by the positive one (+).
X9 Evolution 500 Electrical system
ELE SYS - 75
