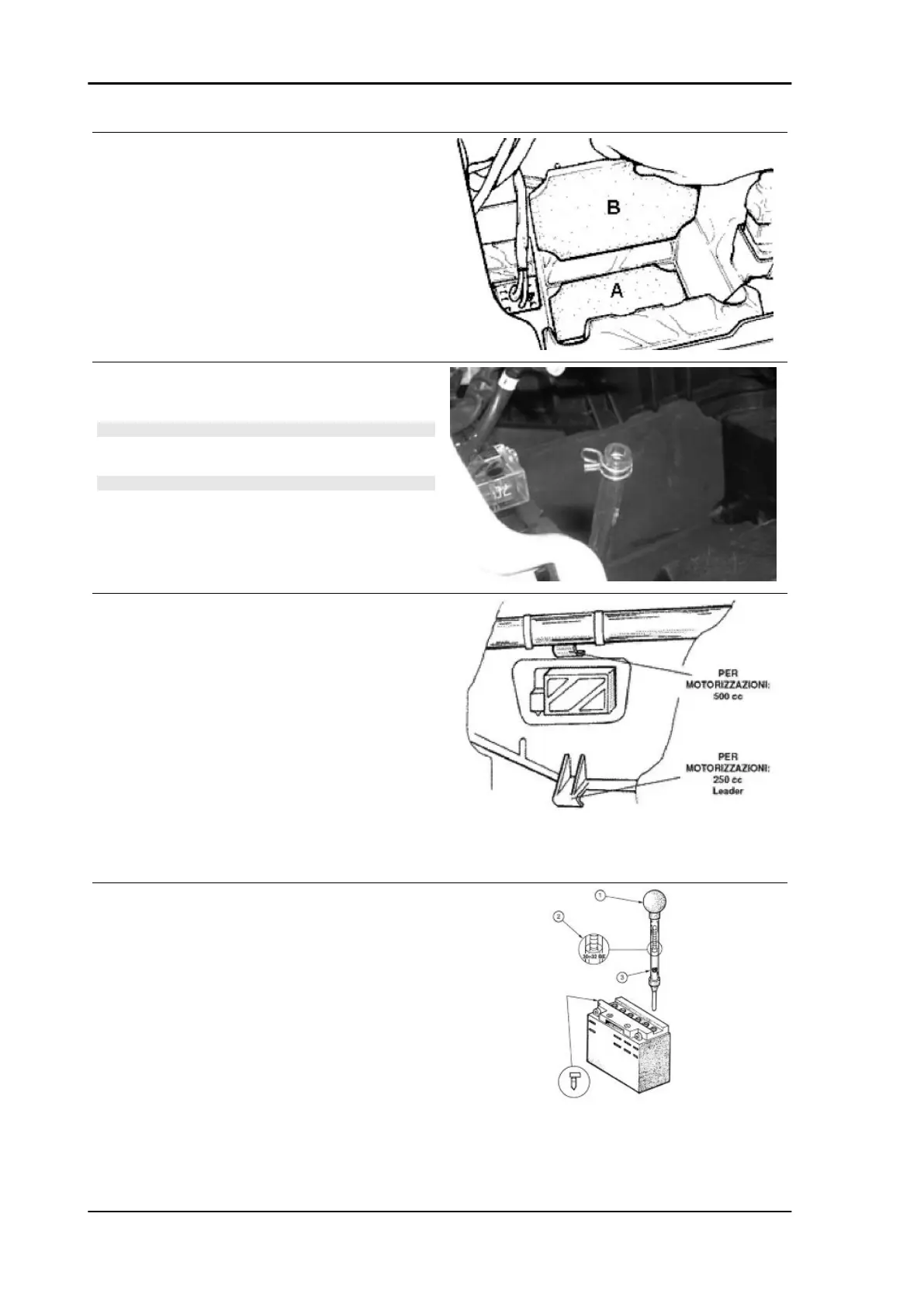

- Insert the lower panel at the bottom of the battery
compartment (A).
- Insert the front element (B).
- Place the battery fixing the vent pipe by the re-
taining clip.
N.B.
THE VENT PIPE WITH THE RETAINING CLIP ARE AL-
READY MOUNTED ON THE VEHICLE.
N.B.
AFTER RECHARGING AND BEFORE INSTALLING, EN-
SURE THAT THE BATTERY ELECTROLYTE DOES NOT
EXCEED THE MAX LEVEL.
The figure shows two front hooks for the battery
retaining belt:
The top one, obtained in the chassis metal cross-
piece, must be used for version 500 cc.
• Position the battery and fit the plastic cap, then lock by the plastic belt.
• Connect the wires to the battery terminals.
- Remove the short closed tube and the caps, then
pour sulphuric acid into the cells using the type
specified for batteries with a specific gravity of
1.26, corresponding to 30 Bé at a minimum tem-
perature of 15°C until the upper level is reached.
- Allow to stand for at least 2 hours, then top up the
level with sulphuric acid.
- Within 24 hours, recharge using the special bat-
tery charger (single) or (multiple) at an intensity of
about 1/10 of the battery nominal capacity and until
Electrical system X9 Evolution 500
ELE SYS - 76
