to 1/10 of the battery rated capacity). Connections to the power supply source must be implemented
by connecting corresponding poles (+ to + and - to - ).
Specific tooling
020333Y Single battery charger
020334Y Multiple battery charger
The battery should always be kept clean, especially on its top side, and the terminals should be coated
with Vaseline.
CAUTION
NEVER USE FUSES WITH A CAPACITY HIGHER THAN THE RECOMMENDED CAPACITY. USING
A FUSE OF UNSUITABLE RATING MAY SERIOUSLY DAMAGE THE VEHICLE OR EVEN CAUSE
A FIRE.
CAUTION
ORDINARY AND DRINKING WATER CONTAINS MINERAL SALTS THAT ARE HARMFUL FOR
THE BATTERY. FOR THIS REASON, YOU MUST ONLY USE DISTILLED WATER.
CAUTION
CHARGE THE BATTERY BEFORE USE TO ENSURE OPTIMUM PERFORMANCE. FAILURE TO
CHARGE THE BATTERY ADEQUATELY BEFORE BEING PUT INTO OPERATION WILL LEAD TO
A PREMATURE FAILURE OF THE BATTERY.
Phonic wheel
- Ensure that the tone wheel is correctly installed on the scooter and connected to the electrical system.
- Turn the key switch to "ON".
- Access the tone wheel connector on the system side.
- Carry out the following measurements using the special tool.
Specific tooling
020331Y Digital multimeter
Check the supply voltage.

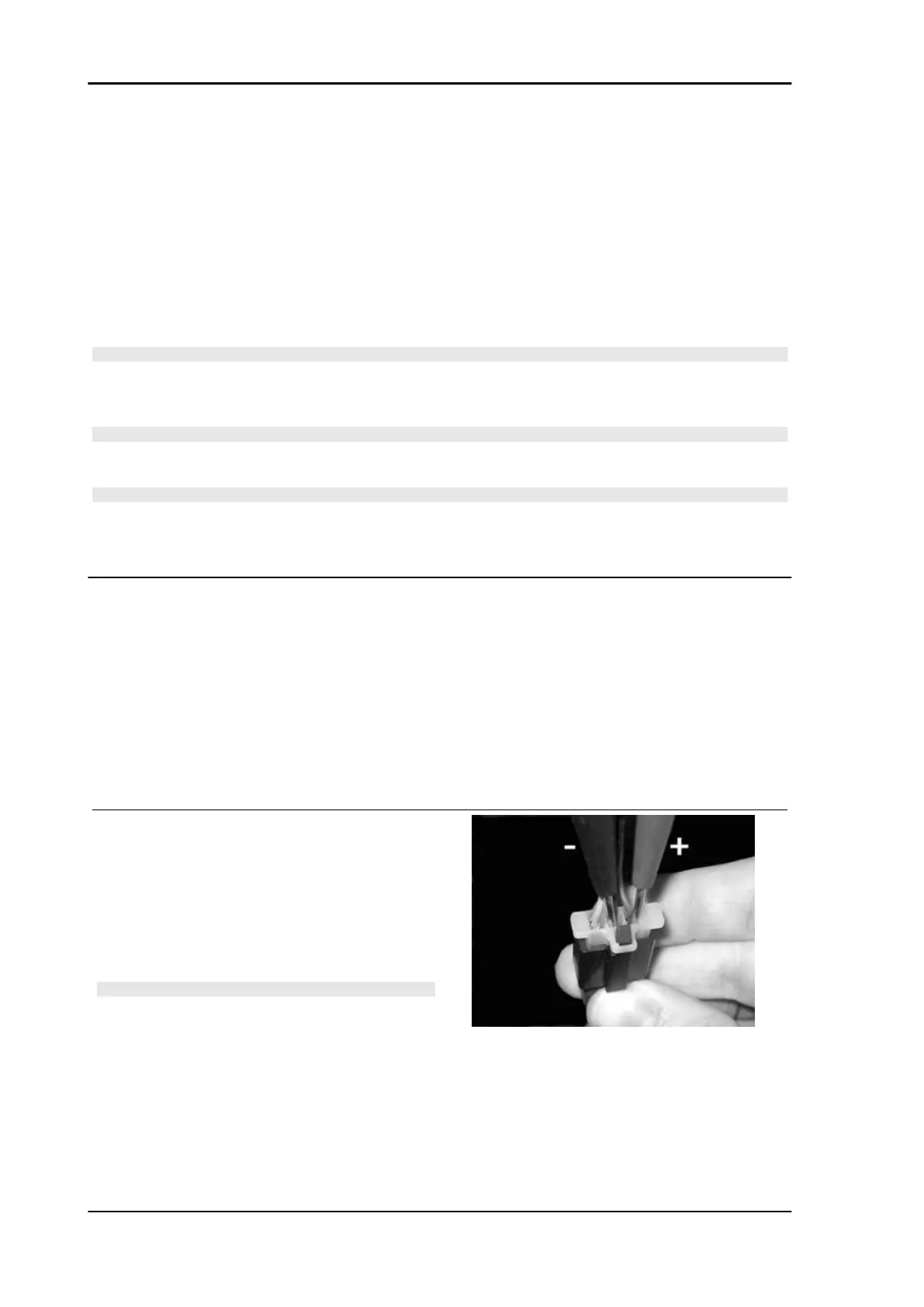

Keeping the connector in the position shown in the
photo, check for battery voltage (12 V) with the
polarity shown.
If incorrect values are measured, check the elec-
trical system and the digital instrument.
N.B.
A DROP IN VOLTAGE OF 1 V IN RELATION TO THE BAT-
TERY VOLTAGE CAN BE CONSIDERED NORMAL.
Electrical system X9 Evolution 500
ELE SYS - 78
