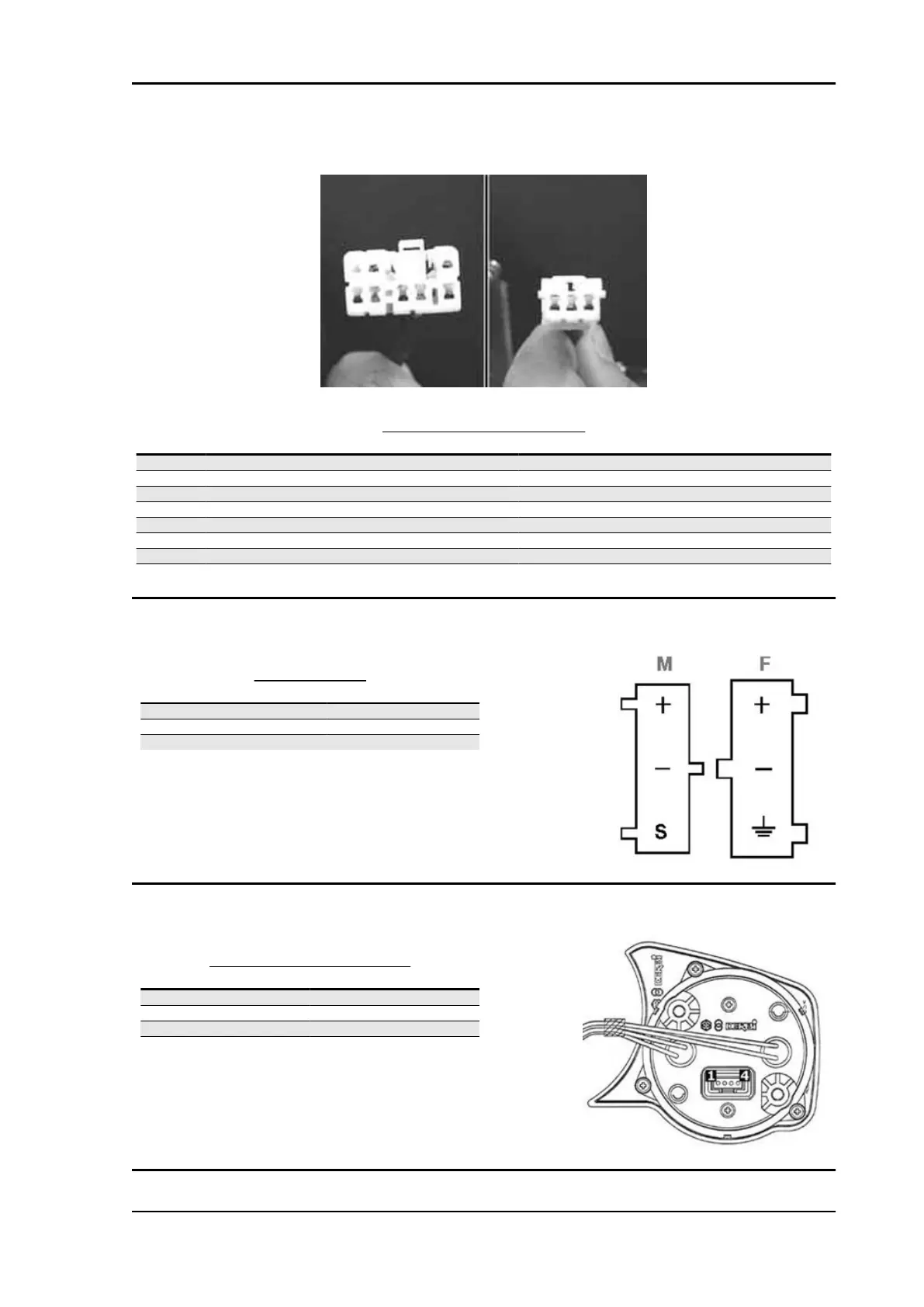

Immobiliser decoder
IMMOBILIZER DECODER
Specification Desc./Quantity
1 -
2 Immobilizer LED control (negative)
3 Base power supply (positive)
4 Negative
5 -
6 Electronic control unit EMS (serial)
7 -
8 Continuous power supply (positive) Immobilizer aerial
Engine rev. sensor
REV SENSOR
Specification Desc./Quantity
1 M: Male
2 F: Female
3 S: Shielding
Analogue odometer
ANALOGUE ODOMETER
Specification Desc./Quantity
1 STEPPER MOTOR A
2 STEPPER MOTOR B
3 STEPPER MOTOR C
4 STEPPER MOTOR D
