Specification Desc./Quantity
15 Upper beam indicator input
16 Air temperature sensor input
17 Engine not actuable input
18 Oil pressure indicator input
19 (Not connected)
20 LH direction indicator output
21 Direction indicator stop button input
22 Reset service management button input
23 Water temperature sensor input
24 Fuel level sensor input
25 Battery positive (+30)
26 Tachometer sensor power supply
27 Tachometer sensor return to ground
28 Rpm sensor input
29 Battery positive (+30)
30 Antitheft led
31 Key positive (+15)
32 Tachometer sensor input
33 Negative
34 Air temperature sensor return to ground
35 Emergency light button input (hazard)
36 Lights on input

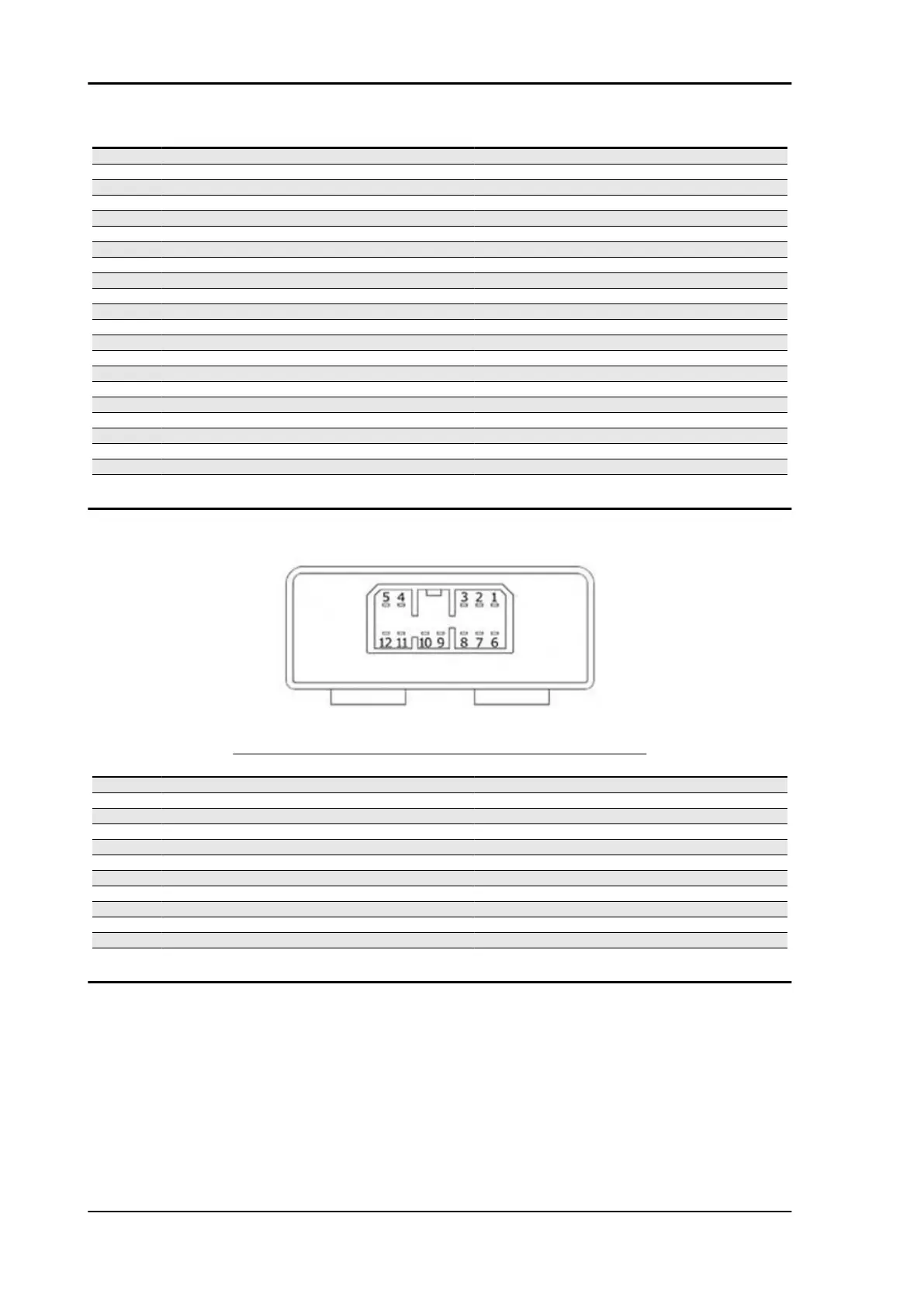

Seat opening receiver
RECEIVER CONTROL UNIT FOR SADDLE OPENER
Specification
Desc./Quantity
1 Radio aerial
2 Actuator positive output 1
3 Reset / Input clearing
4 Battery positive
5 (Not connected)
6 Live positive lead
7 Ground lead
8 (Not connected)
9 (Not connected)
10 Selection input CH1 / CH3
11 Positive output actuator 1
12 Data for alarm output
Electrical system X9 Evolution 500
ELE SYS - 80
