TAKING THE OPERATION WHEN THE BEAR-
INGS ARE BEING SERVICED MIGHT BE EAS-
IER.
Specific tooling
020263Y Sheath for driven pulley fitting
Recommended products
AGIP GREASE SM 2 Grease for the tone wheel
revolving ring
Soap-based lithium grease containing NLGI 2 Mo-
lybdenum disulphide; ISO-L-XBCHB2, DIN
KF2K-20

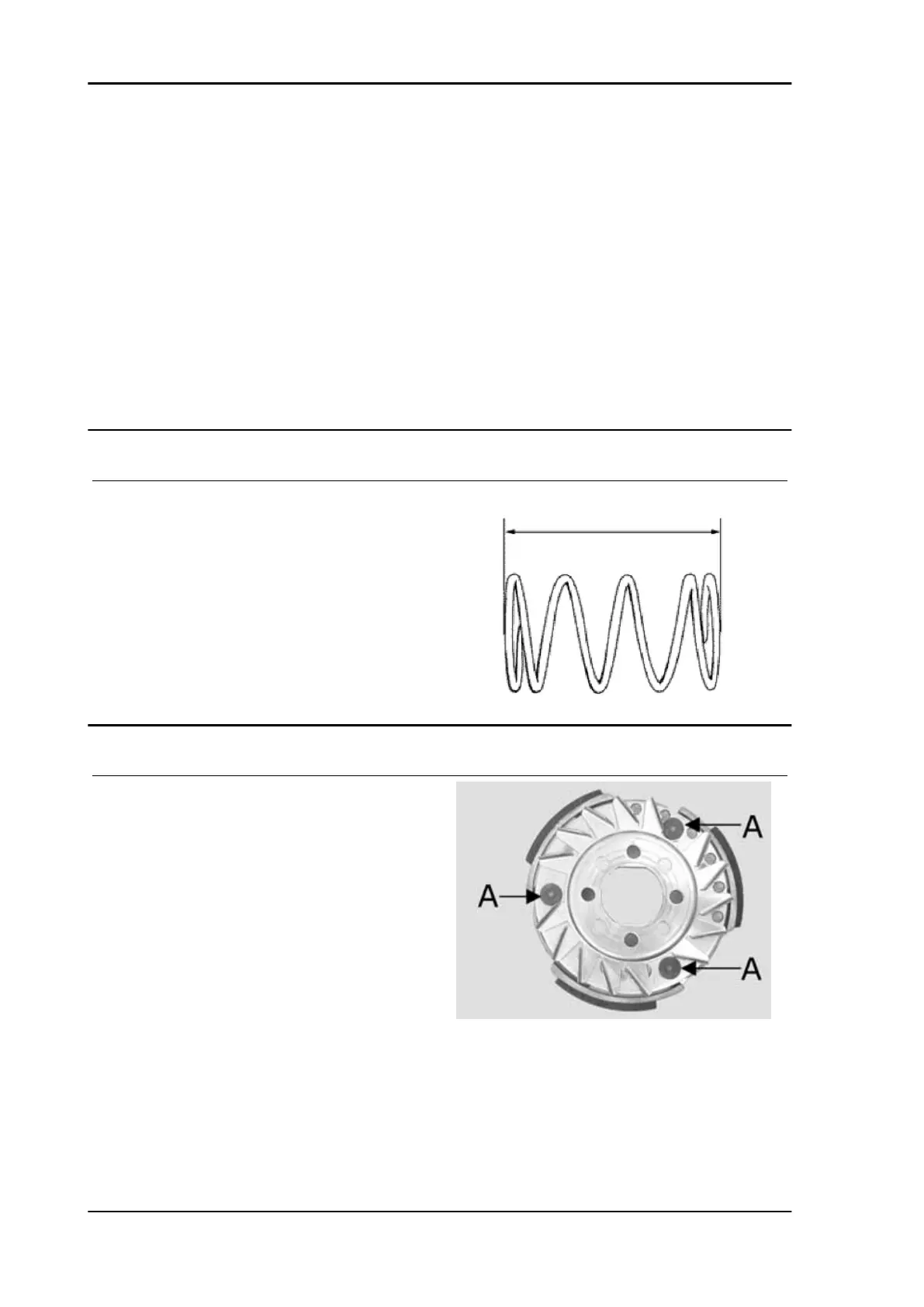

Inspecting the clutch spring
- Measure the length of the spring, while it is re-
laxed.
Characteristic
Standard length
106 mm
acceptable limit after use:
101 mm
Refitting the clutch
- Support the driven pulley spring compressor ap-
propriate tool with the control screw in vertical axis.
- Arrange the tool with the medium length pins
screwed on the inside.
- Insert the adapter ring No. 8 in the pins.
- Preassemble the cooling fan to the clutch in such
a way that the keying facets are aligned and the 3
pin heads «A» of the fulcrum axis can be seen in
full.
- Insert the clutch on the adapter ring.
- Lubricate the end of the spring that abuts against
the servo-system closing collar.
- Insert the spring with its plastic holder in contact
with the clutch.
- Insert the pulley unit with the belt into the tool.
Engine XEVO 125 Euro 3
ENG - 10
