PIAGGIO XEVO 125 Euro 3 User Manual

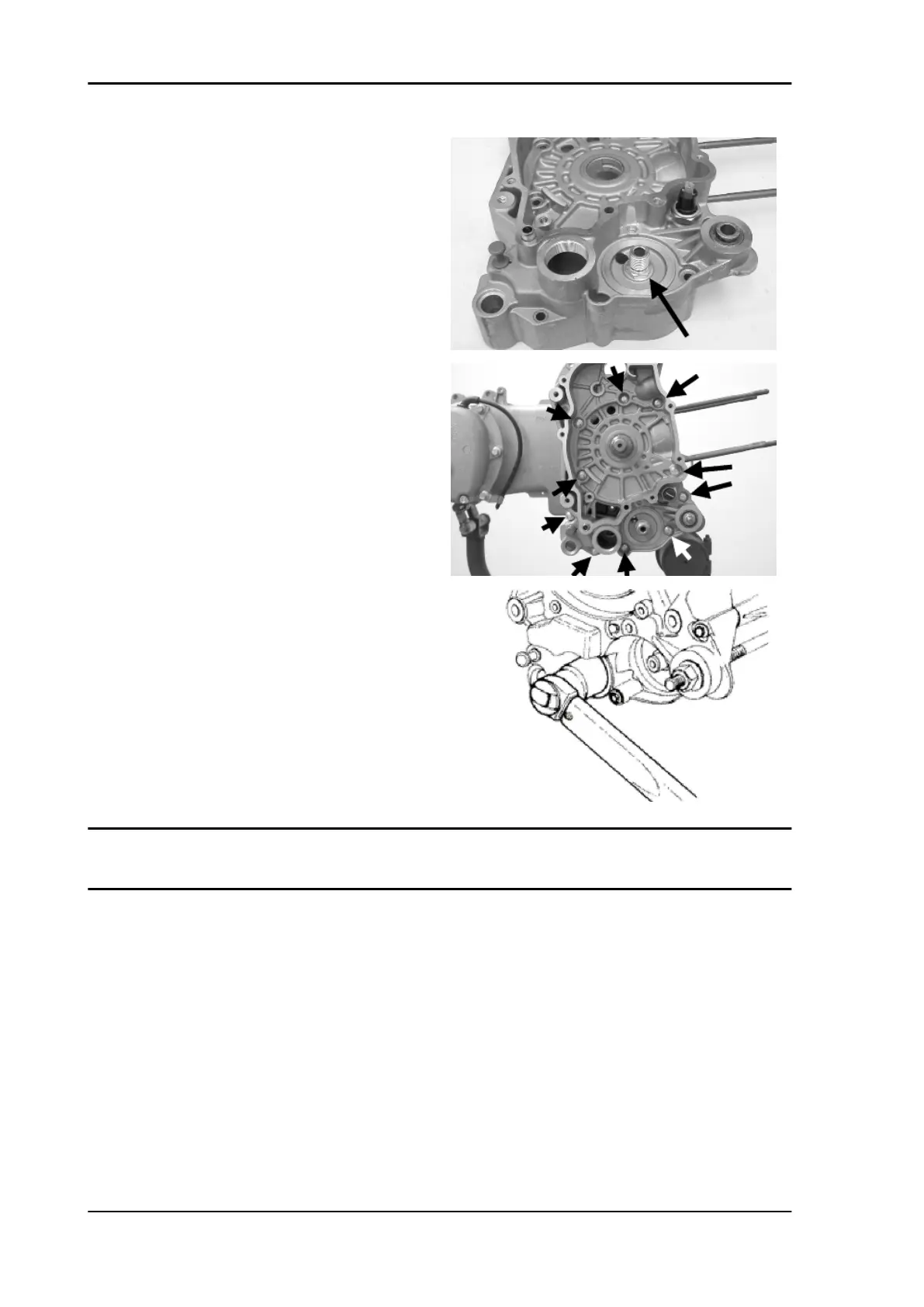

- Insert the filter on the engine with the relative cap.
Tighten to the prescribed torque.
Locking torques (N*m)
Internal engine crankcase bulkhead (transmis-
sion-side half shaft) screws 4 ÷ 6 Engine-
crankcase coupling screws 11 ÷ 13 Oil filter on
crankcase fitting 27 ÷ 33 Engine oil drainage
plug/mesh filter 24 ÷ 30
Lubrication
Conceptual diagrams
LUBRICATION CIRCUIT
Engine XEVO 125 Euro 3
ENG - 56
