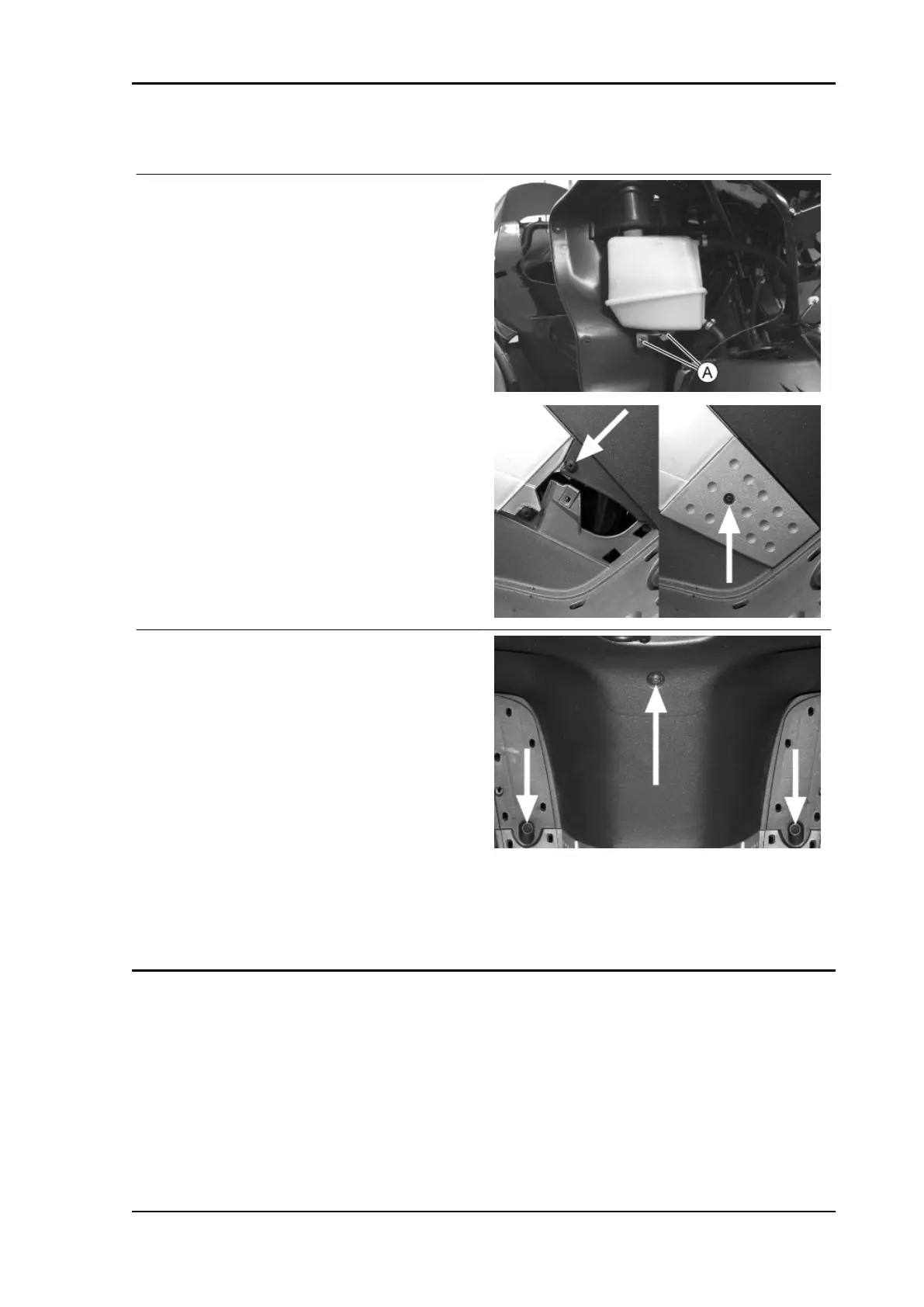

Knee-guard
•
- Remove the front shield.
•
Remove the expansion tank from the
shield back plate by undoing the two
screws «A» and fix it to the small front
frame in such a way that it does not turn
over.
•
Disconnect the connectors of the
MODE button and the plug socket.
•
Undo the screw fixing the caps of the
two lower screws and remove them.
•
Remove the three fixing screws to the
frame.
•
Remove the instrument panel support.
•
Remove the shield back plate by re-
moving the lower part.
•
To make the operation easier it might
be necessary to turn the steering alter-
nately to right and left to free the upper
appendages.
See also
Legshield
Analogue instrument panel support
XEVO 125 Euro 3 Chassis
CHAS - 7
