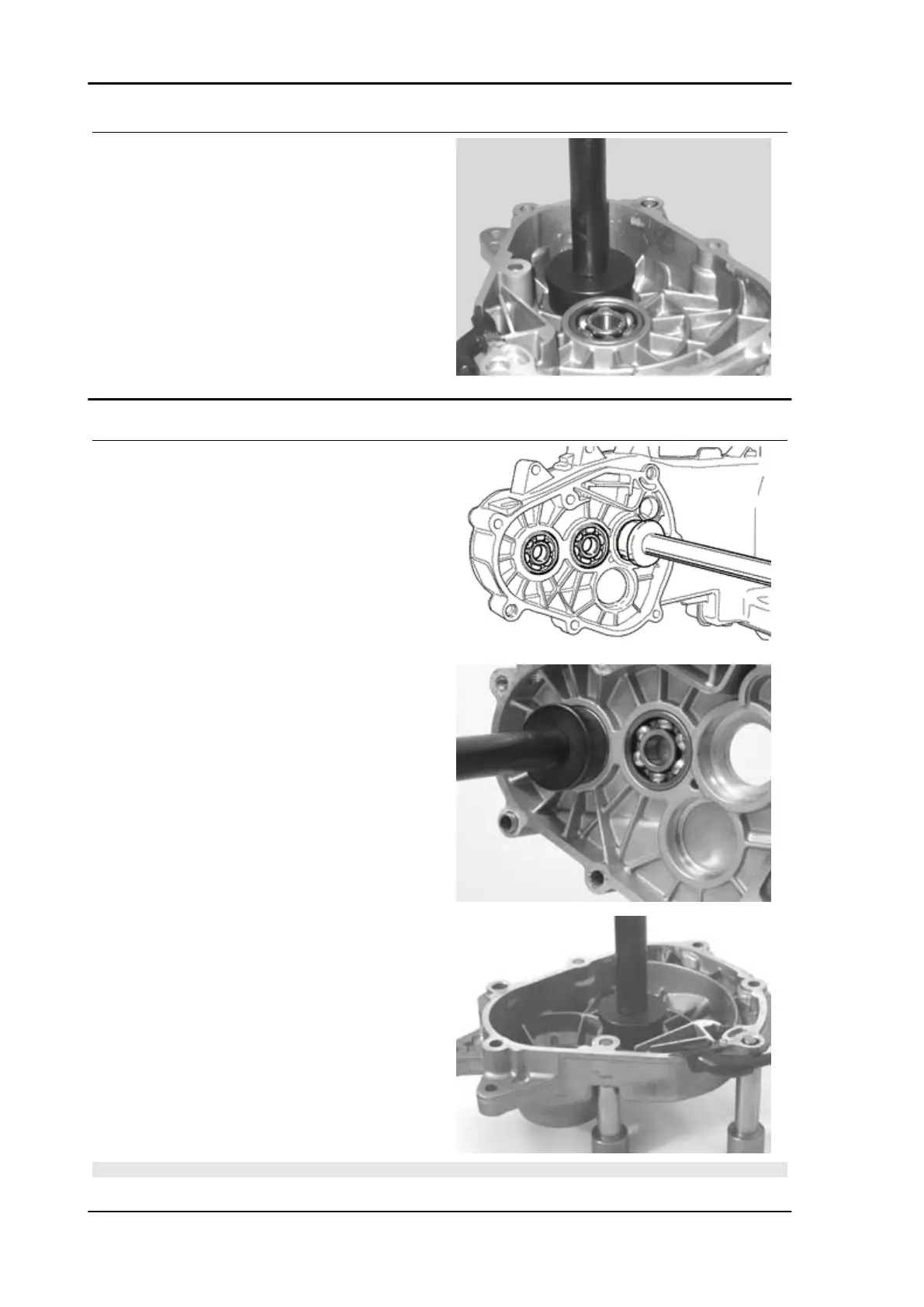

- Fit the oil guard with seal lip towards the inside
of the hub and place it flush with the internal sur-
face by means of the appropriate tool used from
the 52 mm side.
The 52 mm side of the adapter must be turned to-
wards the bearing.
Refitting the hub cover bearings
To fit the hub housing bearings, the engine crank-
case and the cover must be heated with the spe-
cial heat gun.
- The three 15 mm bearings must be fitted using
the appropriate tools.
- The 42-mm side of the adapter must be turned
towards the bearing.
- Refit the seeger ring with the opening facing the
bearing and the new oil seal flush with the crank-
case on the pulley side.
- Refit the driven pulley shaft bearing with a mod-
ular punch as shown in the figure.
Specific tooling
020150Y Air heater support
020151Y Air heater
020376Y Adaptor handle
020359Y 42x47-mm adaptor
020412Y 15 mm guide
020363Y 20 mm guide
N.B.
TO FIT THE BEARING ON THE COVER, SUPPORT THE COVER WITH THE STUD BOLT SET.
Engine XEVO 125 Euro 3
ENG - 20
