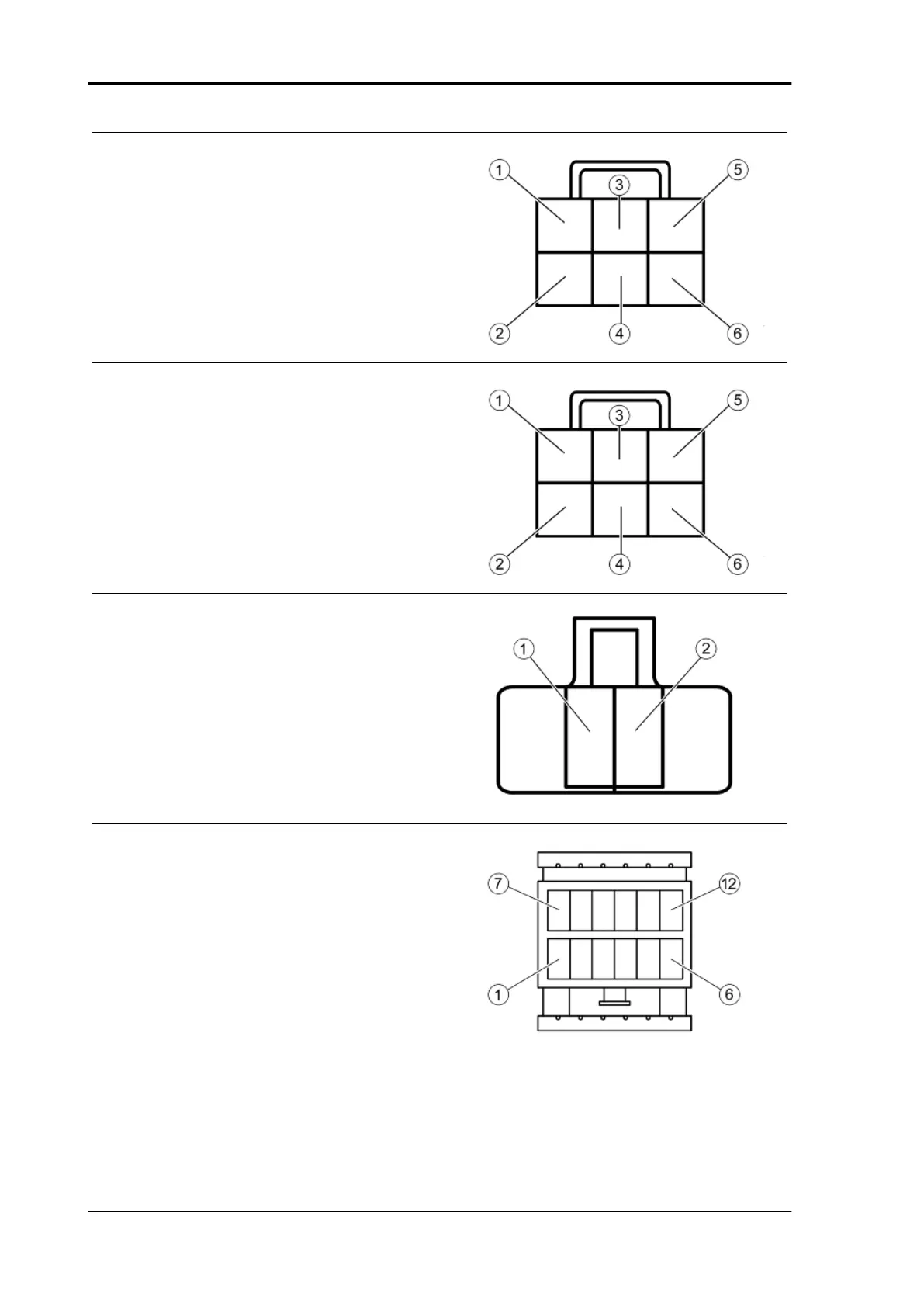

FUEL ELECTRIC PUMP CONTROL DEVICE
CONNECTOR
1. Live supply (Blue-Red)
2. Not connected
3. Pump Ground (White-Black)
4. Pump supply (Blue-Black)
5. Ground (Black)
6. Engine revs (Purple)
VOLTAGE REGULATOR CONNECTOR
1. Battery positive (Red-Blue)
2. Magneto flywheel (Yellow)
3. Not connected
4. Magneto flywheel (Yellow)
5. Ground (Black)
6. Magneto flywheel (Yellow)
AUTOMATIC STARTER CONNECTOR
1. Live positive (Orange)
2. Ground (Brown)
TURN INDICATOR CONTROL DEVICE CON-
NECTOR
1. Hazard switch (Brown)
2. LHS Turn indicator switch (White-Pink)
3. RHS Turn indicator switch (Blue-Black)
4. LHS Turn indicator bulbs (Pink)
5. RHS Turn indicator bulbs (White-Blue)
6. Battery powered (Grey-Green)
7. Light switch remote control (Purple-White)
8. Live (Orange-White)
9. Ground (Black)
10. Not connected
11. Not connected
Electrical system XEVO 125 Euro 3
ELE SYS - 26
