5.23 ps2000SetAdvTriggerDelay
int16_t ps2000SetAdvTriggerDelay
(
int16_t handle,
uint32_t delay,
float preTriggerDelay
)
This function sets the pre-trigger and post-trigger delays. The default action, when both these
delays are zero, is to start capturing data beginning with the trigger event and to stop a
specified time later. The start of capture can be delayed by using a non-zero value of delay.
Alternatively, the start of capture can be advanced to a time before the trigger event by using
a negative value of preTriggerDelay. If both arguments are non-zero then their effects
are added together.
Applicability
Block mode only
PicoScope 2202, 2204, 2204A, 2205 and 2205A only
Arguments
handle: the handle of the required oscilloscope
delay: the post-trigger delay, measured in sample periods. This is the time
between the trigger event and the sample at time t = 0. For example, at a
timebase of 50 MS/s, or 20 ns per sample, and with delay = 100, the
post-trigger delay would be 100 20 ns = 2 µ s.
Range: [0, 2
32
–1]
preTriggerDelay: the location of the sample at time t = 0 within the
data block, as a percentage of the data block length. 0% places t = 0 at the
start of the block, –50% places it in the middle, and –100% places it at the
end. Positive values can also be used to place t = 0 before the beginning of
the data block, but the delay argument is more convenient for this
purpose as it has a wider range.
Range: [–100%, +100%]
Returns
0: if unsuccessful, or if one or more of the arguments are out of range
non-zero: if successful

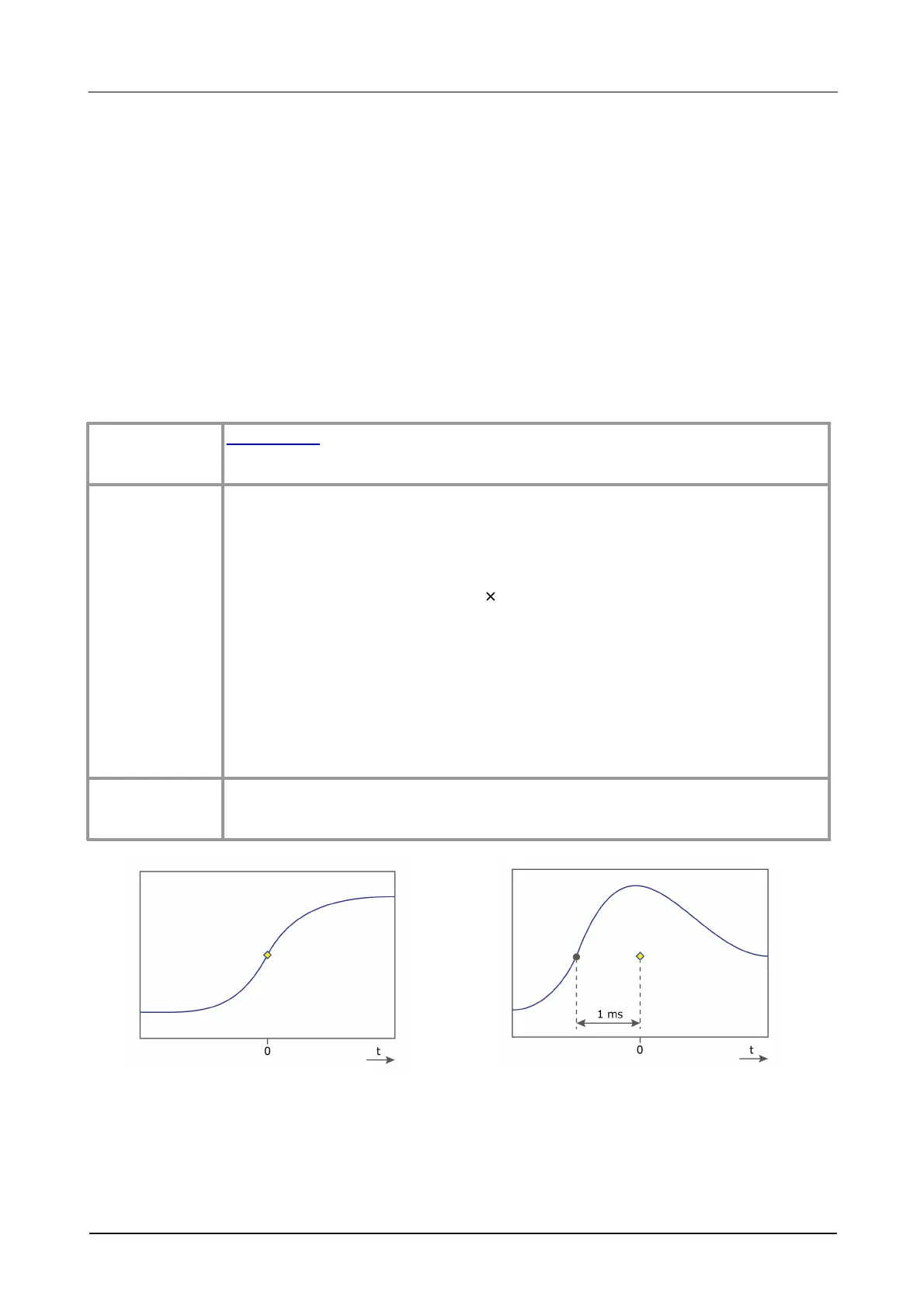

Example 1:
delay = 0,
preTriggerDelay = –50%
Example 2:
delay = 1 ms,
preTriggerDelay = –50%
